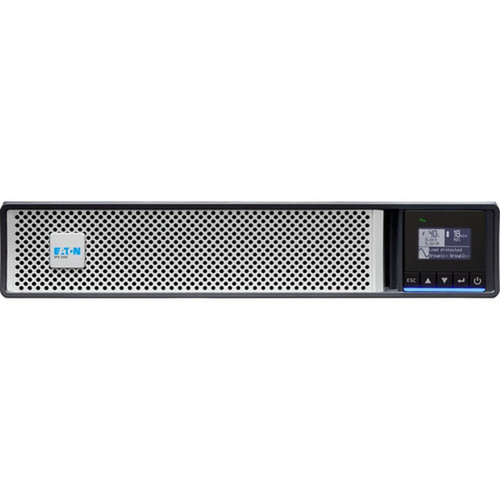

Eaton 5PX2200HRTG2 5PX G2 UPS - 2. 2kVA/2. 2kW - 2U Rack-mountable - 120V AC - 6 Min Runtime - 8x C13 - 2x C19 Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on a line-interactive topology, the 5PX G2 UPS conditions incoming AC power and provides battery backup during outages. Its unity power factor design ensures the full 2.2 kVA rating is available as usable wattage, maximizing the power available for connected equipment. The unit incorporates a sealed lead-acid battery that is user-replaceable, supporting long-term maintainability.
Connectivity and monitoring are facilitated through a USB HID-compliant port for direct communication with connected servers or management software, alongside a traditional RS-232 interface. The front-panel LCD graphical display provides clear visual status on input/output voltage, load percentage, battery status, and alarm conditions.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Eaton 5PX G2 UPS offers a balanced combination of rack-optimized power protection, operational clarity, and deployment flexibility for modern server rooms and network closets.
High-Density Outlet Configuration
Equipped with ten IEC outlets (eight C13 and two C19), this UPS can power a mix of servers, switches, and storage devices directly without requiring additional PDUs, simplifying cable management and rack space utilization.
- 8 x IEC C13 outlets
- 2 x IEC C19 outlets
- Consolidates power distribution
Rack-Optimized Design & Management
The 2U rack-mountable chassis includes a four-post rail kit for secure installation in standard 19-inch racks. The graphical LCD and software connectivity enable proactive monitoring of power health and runtime.
- Includes four-post rail kit
- 2U rack height
- LCD for at-a-glance status
Efficiency & Environmental Compliance
As an ENERGY STAR 2.0 certified device, it reduces electricity consumption and operational costs. The unit also complies with RoHS and REACH environmental standards.
- ENERGY STAR 2.0 certified
- RoHS & REACH compliant
- Reduces energy costs
Deployment / Use Cases
The Eaton 5PX2200HRTG2 is designed for deployment in environments where reliable power for rack-mounted IT equipment is non-negotiable. Its 2.2 kVA capacity and outlet layout make it suitable for supporting a single full-size server with associated storage and networking gear, or a cluster of 1U servers and switches.
Typical applications include protecting server racks in small to medium-sized data centers, network operation centers (NOCs), telecommunications installations, retail back-office systems, and financial institution IT cabinets. The 6-minute runtime at full load provides a critical window for executing automated shutdown scripts or for bridging short-duration utility outages. For extended runtime requirements, the system supports the connection of optional external battery modules.
Physical Profile
The UPS features a standard rack-width design with dimensions of 17.20" (436.88 mm) wide, 23.70" (601.98 mm) deep, and a 2U rack height of 3.40" (86.36 mm). Its black finish blends with typical rack equipment. Weighing approximately 62.20 lb (28.21 kg), it is designed for stable mounting in four-post racks using the included rail kit. The unit also includes tower pedestal feet for temporary bench or floor use during setup or testing.
- Width
- 17.20" (436.88 mm)
- Depth
- 23.70" (601.98 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 62.20 lb (28213.45 g)
What's in the Box
The package includes all necessary components for rack-mount or tower deployment and initial setup.
Highlights
- 2.2 kVA / 2.2 kW line-interactive UPS for rack-mount deployment
- 2U form factor with included four-post rail kit for standard 19-inch racks
- Provides 6 minutes of battery runtime at full load (2.2 kW)
- Ten IEC outlets: eight C13 and two C19 for flexible device connectivity
- 120V AC input via NEMA L6-20P plug
- Front-panel LCD graphical display for clear status and alarm monitoring
- USB HID-compliant and RS-232 ports for system management and monitoring
- ENERGY STAR 2.0 certified for energy efficiency and cost savings
- User-replaceable sealed lead-acid battery for easier maintenance
- Backed by a 3-year limited warranty from Eaton
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 5PX2200HRTG2 |
| Brand Name | Eaton |
| Product Series | 5PX G2 |
| Product Name | 5PX G2 UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13,2 x IEC 60320 C19 |
| Application/Usage | Server,Storage System,VoIP,Network Equipment,Switch,IT Equipment,Enterprise,Telecommunication,Retail Building,Bank,Business |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 2.20 kW |
| Input Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Controls/Indicators | |
| Status Indicators | LCD Graphical Display |
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6 Minute |
| Replaceable Battery | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.40" (86.36 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 23.70" (601.98 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 62.20 lb (28213.45 g) |
| Miscellaneous | |
| Package Contents | 5PX G2 UPS Tower Pedestal Feet Four-post Rail Kit Quick Start Guide Safety Guide USB Cable RS-232 Cable 2 x IEC C13 to IEC C14 Jumper Cables |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 5PX G2 UPS has a power capacity of 2.20 kVA (kilovolt-amperes) and 2.20 kW (kilowatts). This unity power factor rating means the full 2.2 kVA is available as usable power for connected equipment, making it suitable for supporting a rack with a server, storage, and networking gear.
How long will this UPS run on battery at full load?
At its maximum rated load of 2.2 kW, this UPS provides a backup runtime of approximately 6 minutes. This runtime allows sufficient time for connected systems to perform graceful shutdowns via software or to ride through short-duration power interruptions.
What types of power outlets does it have?
This UPS provides a total of ten IEC outlets for connecting equipment. It includes eight IEC 60320 C13 outlets (common for servers, switches, and monitors) and two IEC 60320 C19 outlets (often used for high-power devices or PDUs). This mix supports flexible power distribution within a rack.
Is this UPS designed for rack mounting?
Yes, this is a rack-mountable UPS with a 2U height. It is designed for installation in standard 19-inch server racks and includes a four-post rail kit in the box for secure mounting. It also comes with tower feet for temporary bench or floor use.
What input power does the UPS require?
The UPS requires a 120 Volt AC, 60 Hz power source. It connects via a NEMA L6-20P plug, which is a locking 20-amp plug commonly used for higher-power equipment. Ensure your facility has a compatible 120V, 20A circuit and receptacle available.
Can the battery be replaced by the user?
Yes, the UPS features a user-replaceable battery system. It uses a sealed lead-acid battery, which can be swapped out when it reaches end-of-life, extending the useful life of the UPS unit itself without requiring a full system replacement.
What power capacity is listed for this UPS?
The listed power specification is 2.20 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
