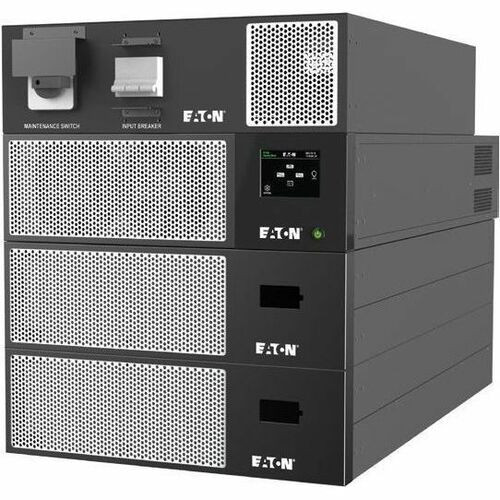

Eaton 93PX13K 13kW Rack-mountable UPS - 12U - 230/120V AC Input - 208/120V AC Output - 5. 2 Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS features a unity power factor (1.0) and 97% operational efficiency, reducing energy costs and heat generation. The input accepts 230V AC or 120V AC with wide voltage ranges, while output delivers 208V AC or 120V AC for compatibility with various equipment.
Battery system operates at 120V DC with valve-regulated lead-acid chemistry and 10,000 mAh capacity. The unit supports two external battery cabinets, extending runtime to 10 minutes at full load or 26 minutes at half load when configured with additional battery modules.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (Watt), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Power Quality
Delivers pure sine wave output with crest factor of 3:1, protecting sensitive electronics from harmonic distortion and ensuring clean power delivery.
- Backfeed and surge protection
- Auto-restart after utility outage
Key Product Advantages
The 93PX13K combines high power density with enterprise-grade reliability features. Its 12U form factor delivers 13kW of protection, making it ideal for space-constrained environments where rack real estate is at a premium.
High Efficiency Operation
Achieves 97% efficiency in normal operation, reducing electricity consumption and operating costs while minimizing heat output in confined rack spaces.
- Unity power factor (1.0)
- ECO mode capability
Advanced Management
Includes RS-232, Network-M3, and INDGW-M3 card support for comprehensive remote monitoring and cybersecurity-protected network management.
- LCD display for local status
- USB and serial connectivity
Scalable Runtime
Supports two external battery cabinets for extended runtime requirements, with typical recharge time of 5.2 hours for rapid recovery after power events.
- 10-minute full load runtime with EBMs
- 26-minute half load runtime with EBMs
Deployment / Use Cases
This UPS is engineered for environments requiring reliable power protection with minimal footprint. Its rack-mountable design and high power density make it suitable for modern data centers where space optimization is critical.
The unit can be configured in parallel for N+1 redundancy when using 13kW, 15kW, or 20kW models, providing fault tolerance for essential infrastructure. This capability ensures continuous operation even during maintenance or component failure.
Data Center Applications
Protects servers, switches, and storage arrays in primary data centers, with three-phase power support for high-density rack deployments.
- Mission critical equipment
- IT rack environments
Edge & Healthcare Deployments
Ideal for network closets, server rooms, and healthcare facilities where reliable power is essential for continuous operation of medical and IT equipment.
- Hospital and medical applications
- Edge computing locations
What's in the Box
The package includes all components necessary for immediate deployment and management.
Highlights
- 13kW rack-mountable UPS with 12U height for high-density deployments
- 97% efficiency with unity power factor (1.0) for reduced operating costs
- Double-conversion online topology with pure sine wave output
- Supports 230V AC and 120V AC input with 208V AC and 120V AC output
- Typical battery recharge time of 5.2 hours for rapid recovery
- Network management via RS-232, Network-M3, and INDGW-M3 cards
- Configurable in parallel for N+1 redundancy with 13kW, 15kW, or 20kW models
- TAA compliant and RoHS certified for regulatory compliance
- Includes two external battery cabinet support for extended runtime
- 2-year limited warranty with enterprise-grade reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 93PX13K |
| Brand Name | Eaton |
| Product Series | 93PX |
| Product Name | 93PX 13kW Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | IEC 309 60A (5-wire) |
| Receptacle Type | IEC 309 60A (4-wire) |
| Receptacle Detail | 2 x IEC 309 60A (4-wire) |
| Protection Type | Backfeed,Surge |
| Phase | Three Phase |
| Application/Usage | Data Center,IT Infrastructure,Switch,Server,Healthcare,Hospital,Medical,IT Rack,Mission Critical Equipment,Edge Computing,Network,Server Room,Network Closet |
| Cord Length | 10 ft (3048 mm) |
| Crest Factor | 3:1 |
| Efficiency | 97% |
| Power Description | |
| Load Capacity (Watt) | 13 kW |
| Input Voltage | 230 V AC,120 V AC |
| Input Voltage Range | 121 V AC - 270 V AC,53 V AC - 161 V AC |
| Output Voltage | 208 V AC,120 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | RS-232,Network-M3 Card,INDGW-M3 Card |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 120 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Battery Capacity | 10000 mAh |
| Number of External Battery Cabinets | 2 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 10 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 26 Minute |
| Typical Battery Recharge Time | 5.20 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 140°F (60°C) |
| Maximum Operating Elevation | 3280 ft (999744 mm) |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 12U |
| Miscellaneous | |
| Package Contents | Power Module (PM) Maintenance Bypass Panel (MBP) 2 x Extended Battery Modules (EBMs) NETWORK-M3 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of the Eaton 93PX13K UPS?
The Eaton 93PX13K delivers 13kW (13,000 watts) of power capacity. This double-conversion online UPS is designed for high-density rack deployments, providing reliable power protection for servers, switches, and other critical IT equipment in data center environments.
How long does the battery take to recharge?
The typical battery recharge time is 5.2 hours. This rapid recharge capability ensures the UPS returns to full battery capacity quickly after a power event, minimizing vulnerability during subsequent outages and maintaining optimal protection for connected equipment.
What input and output voltages does this UPS support?
The UPS accepts input voltages of 230V AC or 120V AC, with a wide input range of 121-270V AC for 230V operation and 53-161V AC for 120V operation. It delivers output voltages of 208V AC or 120V AC, providing compatibility with various server and network equipment configurations.
Can this UPS be mounted in a standard rack?
Yes, this is a rack-mountable UPS with a 12U height. The compact form factor optimizes rack space while delivering substantial power capacity, making it ideal for data centers and server rooms where vertical real estate is valuable. The quick-connect design simplifies installation and maintenance.
What network management options are available?
The UPS includes RS-232 connectivity and supports Network-M3 and INDGW-M3 management cards. These provide comprehensive remote monitoring, configuration, and cybersecurity-protected network management capabilities. The built-in LCD display offers local status information for quick diagnostics.
Does this UPS support external battery expansion?
Yes, the UPS supports two external battery cabinets. When configured with extended battery modules, runtime extends to 10 minutes at full load or 26 minutes at half load. This scalability allows organizations to tailor runtime to their specific protection requirements without replacing the main power module.
What power capacity is listed for this UPS?
The listed power specification is 13 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC,120 V AC, which helps position the unit for the right load level and installation role.
