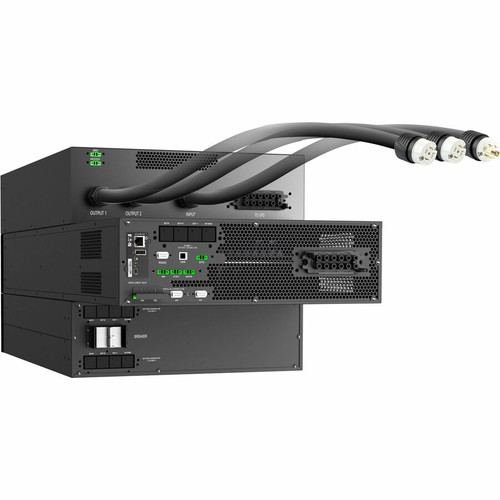

Eaton 93PX15KIHWNDG 15kW Rack-mountable UPS - 12U Rack Height - 3 Hour Recharge - 380/400/415V AC Input - Hardwired
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS operates with a wide input voltage range from 173V to 520V AC, accommodating varying utility conditions. It outputs a pure sine wave with multiple frequency options, ensuring compatibility with sensitive equipment. The double-conversion topology provides complete isolation from input power anomalies.
Network management is supported through RS-232, Network-M3, INDGW-M3, and INDGW-M2 cards, enabling remote monitoring and control. Additional interfaces include USB, serial, and an EPO port for emergency shutdown. The valve-regulated lead-acid battery system has a 9000 mAh capacity and operates at 240V DC.
Environmental Specifications
The UPS operates in temperatures up to 104°F (40°C) and can be stored from 5°F (-15°C) to 140°F (60°C). It functions at elevations up to 3280 ft (999744 mm), suitable for various installation environments.
- Maximum Operating Temperature: 104°F (40°C)
- Storage Temperature Range: 5°F (-15°C) to 140°F (60°C)
- Maximum Operating Elevation: 3280 ft (999744 mm)
Key Product Advantages
The Eaton 93PX series combines high power density with advanced management features, offering a robust solution for modern IT power needs. Its design prioritizes reliability, efficiency, and ease of integration into existing infrastructure.
High Efficiency Operation
With 98.8% efficiency in ECO mode, this UPS reduces energy costs and heat output, contributing to lower cooling requirements and overall operational expenses in data center environments.
Scalable Power Protection
Configurable in parallel for N+1 redundancy or increased capacity up to 30kW or 40kW, the system supports growing power demands without requiring complete replacement.
Comprehensive Management
Integrated network management cards provide market-leading cybersecurity features and remote monitoring capabilities, allowing IT staff to maintain visibility and control over power infrastructure.
Deployment / Use Cases
This 15kW rack-mountable UPS is engineered for environments where power continuity is critical to operations. Its three-phase design and high capacity make it ideal for supporting server racks, network switches, and medical equipment that cannot tolerate power interruptions.
The hardwired connection and 12U form factor suit dedicated IT racks in data centers, server rooms, and network closets. The system's ability to handle edge computing deployments and healthcare applications demonstrates its versatility across demanding sectors.
Data Center Infrastructure
Protect high-density server racks and networking equipment with clean, uninterrupted power. The quick-connect design facilitates rapid deployment during infrastructure expansions or upgrades.
Healthcare & Medical Facilities
Ensure continuous operation of medical equipment, diagnostic systems, and patient monitoring devices. The UPS provides the necessary power quality and reliability for critical healthcare applications.
What's in the Box
This UPS ships with all necessary components for installation and operation.
Highlights
- 15kW load capacity for high-density IT equipment
- 12U rack-mountable form factor with hardwired connections
- 98.8% efficiency reduces operational costs
- Three-phase double-conversion online UPS topology
- Supports two external battery cabinets for extended runtime
- 3-hour typical battery recharge time
- Pure sine wave output protects sensitive electronics
- Network management via RS-232 and multiple card options
- Wide input voltage range: 173V-520V AC
- 2-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 93PX15KIHWNDG |
| Brand Name | Eaton |
| Product Series | 93PX |
| Product Name | 93PX 15kW Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Protection Type | Backfeed,Surge |
| Phase | Three Phase |
| Application/Usage | Data Center,IT Infrastructure,Switch,Server,Healthcare,Hospital,Medical,IT Rack,Mission Critical Equipment,Edge Computing,Network,Server Room,Network Closet,Clinic,Medical Equipment |
| Crest Factor | 3:1 |
| Efficiency | 98.8% |
| Power Description | |
| Load Capacity (Watt) | 15 kW |
| Input Voltage | 380 V AC,400 V AC,415 V AC |
| Input Voltage Range | 173 V AC - 520 V AC,277 V AC - 520 V AC |
| Output Voltage | 380 V AC,220 V AC,400 V AC,230 V AC,415 V AC,240 V AC |
| Input Frequency | 50 Hz,60 Hz,45 Hz,55 Hz,54 Hz,66 Hz |
| Output Frequency | 50 Hz,45 Hz,55 Hz |
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | RS-232,Network-M3 Card,INDGW-M3 Card,INDGW-M2 Card |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 240 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Battery Capacity | 9000 mAh |
| Number of External Battery Cabinets | 2 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 2.50 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 9.50 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 140°F (60°C) |
| Maximum Operating Elevation | 3280 ft (999744 mm) |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 12U |
| Miscellaneous | |

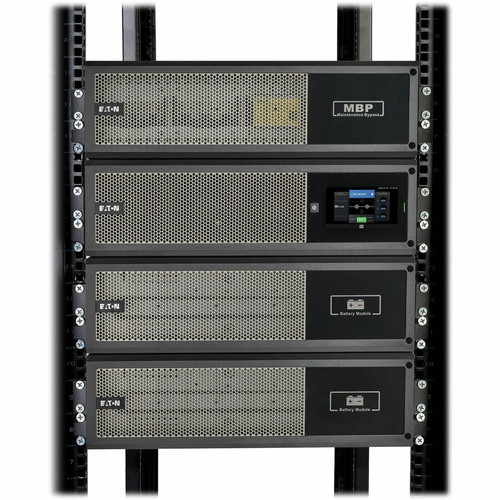

| Package Contents | Power Module (PM) Maintenance Bypass Panel (MBP) 2 x Extended Battery Modules (EBMs) |
| TAA Compliant | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 93PX15KIHWNDG provides 15kW of load capacity, suitable for protecting high-density server racks, network equipment, and critical infrastructure in data center and IT environments.
How long does the battery take to recharge?
The typical battery recharge time is 3 hours. This allows the UPS to restore full backup capability relatively quickly after a power outage, minimizing vulnerability windows.
What rack space does this UPS require?
This UPS occupies 12U of vertical rack space. Its rack-mountable design integrates directly into standard server racks, making efficient use of infrastructure without requiring additional floor footprint.
What input voltages does this UPS support?
The UPS accepts input voltages of 380V AC, 400V AC, and 415V AC, with a wide operating range from 173V to 520V AC. This flexibility accommodates various utility power conditions and international voltage standards.
Can this UPS be expanded with external batteries?
Yes, the system supports two external battery cabinets. With these cabinets, it provides 2.5 minutes of runtime at full load and 9.5 minutes at half load, extending protection during extended outages.
What management options are available for this UPS?
Management capabilities include RS-232 connectivity and support for Network-M3, INDGW-M3, and INDGW-M2 network management cards. These options enable remote monitoring, configuration, and cybersecurity features for comprehensive power infrastructure management.
What power capacity is listed for this UPS?
The listed power specification is 15 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 380 V AC,400 V AC,415 V AC, which helps position the unit for the right load level and installation role.
