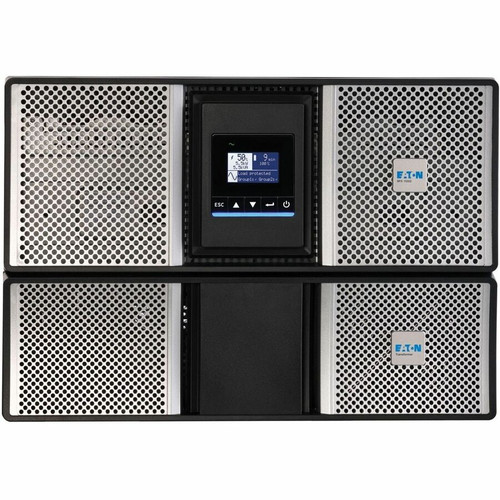

Eaton 9PX11KTF11G2 9PX G2 11000VA/11kW Double Conversion Online UPS - 7U Rack/Tower - 230V AC Input - Pure Sine Wave - 3 Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Double Conversion Topology
This online UPS continuously converts incoming AC power to DC and back to clean AC, providing complete isolation from utility power anomalies. The output is a stable pure sine wave with a power factor of 1, suitable for powering sensitive electronic loads without risk of waveform distortion.
Battery System
The 240 V DC battery system features hot-swappable, valve-regulated lead-acid batteries. This design allows for battery replacement without shutting down connected equipment, supporting high availability requirements. The system is replaceable and rated for operation up to 104°F (40°C).
Key Product Advantages
The Eaton 9PX G2 UPS combines high power capacity with intelligent management features to protect critical infrastructure. Its dual rack/tower flexibility accommodates diverse deployment scenarios, from standard server racks to standalone tower installations in equipment rooms.
Comprehensive Power Protection
This unit safeguards connected equipment against multiple power threats including surges, complete blackouts, brownouts, and electromagnetic interference. The integrated EMI/RFI noise filter further cleans incoming power, preventing data corruption and hardware damage.
- Surge Protection
- Blackout & Brownout Coverage
- Line Noise Filtering
Advanced Monitoring & Control

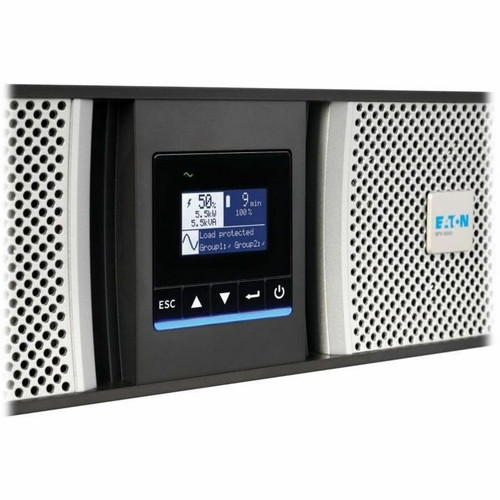

The LCD display provides real-time status information, while the Network-M3/INDGW-M2/Relay-MS card enables remote management via network interfaces. Alarms notify for low battery, overload, UPS faults, battery faults, remote shutdown, and power failure conditions.
- LCD Status Display
- Network Management Card
- Multi-condition Alarms
Deployment / Use Cases
This 11000VA UPS is engineered for environments where power continuity is non-negotiable. Its 11kW capacity supports substantial IT loads, making it suitable for server rooms, network closets, and edge computing locations that require both protection and runtime during outages.
The rack/tower dual form factor provides installation flexibility. In data center environments, the 7U rack-mount configuration optimizes space utilization. For smaller facilities or temporary deployments, the included tower support stands enable floor placement without rack infrastructure.
Data Center & Server Room Protection
Protect server racks, storage arrays, and network switches in centralized data centers. The 8 NEMA 5-20R, 4 NEMA L6-30R, and 2 NEMA L14-30R receptacles distribute power to multiple devices, while the hardwired option supports direct connection to critical loads.
Edge Computing & Remote Sites
Secure network equipment, IoT devices, and computing infrastructure at distributed locations. The pure sine wave output ensures compatibility with modern switching power supplies, while the network management capabilities allow remote monitoring from central IT operations.
Physical Profile
The Eaton 9PX G2 UPS measures 12" (304.80 mm) in height, 17.30" (439.42 mm) in width, and 28.60" (726.44 mm) in depth, with a substantial weight of 377 lb (171004.32 g). This 7U form factor is designed for standard 19-inch server racks, with all necessary rack-mounting hardware included. The unit also converts to tower mode using the provided support stands, offering deployment flexibility for environments without rack infrastructure.
- Width
- 17.30" (439.42 mm)
- Depth
- 28.60" (726.44 mm)
- Height
- 7U
- Weight
- 377 lb (171004.32 g)
What's in the Box
This Eaton UPS ships complete with all components needed for installation and operation in both rack and tower configurations.
Highlights
- 11000VA/11kW double conversion online UPS protection
- 7U rack/tower form factor with dual deployment options
- Pure sine wave output with power factor of 1
- Hot-swappable, valve-regulated lead-acid batteries
- 3-hour typical battery recharge time
- Network management via Network-M3/INDGW-M2/Relay-MS card
- LCD display with comprehensive status indicators
- Multiple receptacle types: 8x NEMA 5-20R, 4x NEMA L6-30R, 2x NEMA L14-30R
- Hardwired connection capability for direct installation
- 3-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX11KTF11G2 |
| Brand Name | Eaton |
| Product Series | 9PX G2 |
| Product Model | 9PX11KTF11G2 |
| Product Name | 9PX G2 9PX11KTF11G2 11000VA Rack/tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA 5-20R,NEMA L6-30R,NEMA L14-30R,Hardwired |
| Receptacle Detail | 8 x NEMA 5-20R,4 x NEMA L6-30R,2 x NEMA L14-30R |
| Protection Type | Surge,Black Out,Brownout,Line Noise |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Mission Critical Equipment,Network,IT Equipment,Data Center,Edge Computing,Education,Government,Healthcare,Retail,Server,Switch,Network Equipment |
| Power Description | |
| Load Capacity (VA) | 11 kVA |
| Load Capacity (Watt) | 11 kW |
| Input Voltage | 230 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC,200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network-M3/INDGW-M2/Relay-MS Card |
| Alarm | Low Battery,Overload,UPS Fault,Battery Fault,Remote Shutdown,Power Failure |
| Controls/Indicators | |
| Status Indicators | LED Indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 240 V DC |
| Battery Characteristics | Hot-swappable/Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Backup/Run Time (Half Load) | 9.40 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 1767 BTU/h |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Rack Height | 7U |
| Height | 12" (304.80 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 28.60" (726.44 mm) |
| Weight (Approximate) | 377 lb (171004.32 g) |
| Miscellaneous | |
| Package Contents | 9PX G2 9PX11KTF11G2 11000VA Rack/tower UPS 9PXTFMR11G2 120V Step-down Transformer NETWORK-M3 Gigabit Network Card USB Cable RS-232 Cable Cable Gland for Hardwire Connection Rack-mounting Hardware Tower Support Stands Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
This Eaton 9PX G2 UPS provides 11000VA (11 kVA) and 11000W (11 kW) of power capacity. This substantial capacity supports mission-critical equipment including servers, network switches, and storage arrays in data center and enterprise environments.
How long will this UPS run on battery power?
At full 11kW load, the UPS provides approximately 3.10 minutes of runtime. At half load (5.5kW), runtime extends to approximately 9.40 minutes. These runtimes allow for orderly shutdown of connected equipment or transition to backup generators during power outages.
What type of power outlets does this UPS include?
The unit includes 8 NEMA 5-20R, 4 NEMA L6-30R, and 2 NEMA L14-30R receptacles for connecting various equipment types. It also supports hardwired connections for direct installation to critical loads, with a cable gland included for this purpose.
Can this UPS be installed in both rack and tower configurations?
Yes, this is a dual rack/tower UPS. It occupies 7U of space in standard 19-inch server racks, with all mounting hardware included. For tower deployment, the package includes support stands that enable floor placement without rack infrastructure.
What management capabilities does this UPS offer?
The UPS includes an LCD display for local monitoring and supports network management via the included Network-M3/INDGW-M2/Relay-MS card. This enables remote monitoring, configuration, and shutdown capabilities over the network, with alarms for low battery, overload, UPS faults, and other conditions.
What is included in the package with this UPS?
The package contains the 9PX G2 UPS unit, a 120V step-down transformer, NETWORK-M3 gigabit network card, USB cable, RS-232 cable, cable gland for hardwired connections, rack-mounting hardware, tower support stands, and a quick start guide for complete installation and operation.
What power capacity is listed for this UPS?
The listed power specification is 11 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
