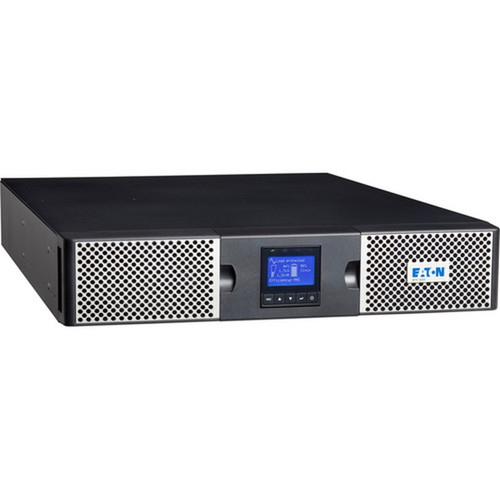

Eaton 9PX3000RT 9PX 3000 VA UPS - 3 kVA Double Conversion Online Power Protection - 2U Rack/Tower Mountable - 120V Input - 6 NEMA Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Eaton 9PX 3000 VA UPS is a double conversion online power protection system designed for critical IT and networking equipment. With a 3 kVA capacity and 2.70 kW watt rating, it provides reliable backup power during outages, allowing time for safe shutdowns and file saves. The unit supports both tower and 2U rack mounting, offering flexibility for server rooms, data centers, and office environments.
This UPS features a hot-swappable battery design for easy maintenance without downtime, and includes an interactive LCD interface for real-time monitoring of load status and power conditions. The Energy Star certification ensures energy efficiency, while the 3-year limited warranty provides long-term reliability. The included Intelligent Power Software Suite enables advanced management and monitoring capabilities.
Relevant product facts for this section include Plug/Connector Type: NEMA L5-30P, Receptacle Type: NEMA 5-20R,NEMA L5-30R, Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-30R, Load Capacity (VA): 3 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Technical Overview
The Eaton 9PX 3000 VA UPS employs double conversion online topology, delivering clean sine wave output with zero transfer time to connected equipment. It accepts 120 V AC input and provides output voltages of 120 V AC, 100 V AC, 110 V AC, and 125 V AC, ensuring compatibility with various devices. The unit includes seven NEMA outlets: six NEMA 5-20R and one NEMA L5-30R, split into separate switched banks for managed load shedding.
Network connectivity is provided via an RJ-45 port, supporting remote management when paired with the optional NETWORK-M2 Gigabit network card. The hot-swappable battery allows for replacement without powering down connected equipment, minimizing disruption. Physical dimensions are 3.40" height, 17.30" width, and 23.80" depth, with a 2U rack height and approximate weight of 63.10 lb.
Key Product Advantages
The Eaton 9PX 3000 VA UPS offers several advantages for ensuring power continuity and equipment protection. Its double conversion online design provides isolation from power anomalies, while the hot-swappable battery enables maintenance without downtime. The interactive LCD interface delivers real-time updates on load information, enhancing operational awareness.
Managed Power Distribution
NEMA outlets are split into separate switched banks, allowing for controlled load shedding and prioritized shutdown of non-critical equipment during extended outages.
- 6 x NEMA 5-20R outlets
- 1 x NEMA L5-30R outlet
- Separate switched banks
Expandable Runtime
Optional extended battery modules can be added to increase runtime, keeping equipment powered for longer durations during power failures.
- Hot-swappable design
- Optional battery modules
- Extended runtime support
Deployment / Use Cases
The Eaton 9PX 3000 VA UPS is ideal for protecting critical IT infrastructure in environments where power reliability is essential. Its 3 kVA capacity and rack/tower mountable design make it suitable for server racks, network closets, and small to medium-sized data centers. The unit ensures uninterrupted operation for servers, switches, routers, and storage systems during power disturbances.
Common use cases include office server rooms where file saves and safe shutdowns are necessary during outages, retail point-of-sale systems requiring continuous uptime, and healthcare IT equipment needing stable power. The optional NETWORK-M2 Gigabit network card enables full remote access and control, making it suitable for distributed IT environments with centralized management.
Server Room Protection
Provides backup power for servers and networking equipment, allowing time for graceful shutdowns and preventing data loss during outages.
Network Infrastructure
Ensures continuous operation of switches, routers, and VoIP systems, maintaining connectivity and communication during power events.
Physical Profile

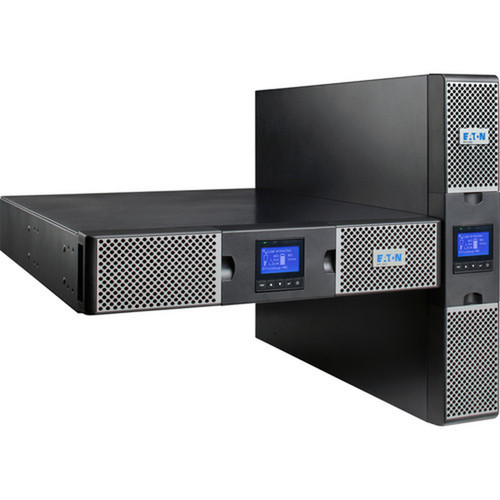

The Eaton 9PX 3000 VA UPS features a compact 2U rack-mountable design with dimensions of 3.40" height, 17.30" width, and 23.80" depth, making it suitable for standard server racks. It includes a 4-post rail kit and tower pedestals for flexible installation in either rack or tower configurations. The unit weighs approximately 63.10 lb, with a sturdy construction designed for reliable performance in demanding environments.
- Width
- 17.30" (439.42 mm)
- Depth
- 23.80" (604.52 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 63.10 lb (28621.68 g)
What's in the Box
The package includes all necessary components for installation and operation, ensuring a complete out-of-the-box experience.
Highlights
- 3 kVA double conversion online UPS with 2.70 kW capacity
- 2U rack/tower mountable design with included rail kit and pedestals
- 120 V AC input with output voltages of 120 V AC, 100 V AC, 110 V AC, 125 V AC
- 7 NEMA outlets (6 x NEMA 5-20R, 1 x NEMA L5-30R) with switched banks
- Hot-swappable battery for maintenance without downtime
- Interactive LCD interface for real-time load monitoring
- Optional NETWORK-M2 Gigabit network card for remote management
- Energy Star certified for energy efficiency
- 3-year limited warranty for reliable protection
- Includes Intelligent Power Software Suite for advanced management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX3000RT |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Name | 9PX 3000 VA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R,NEMA L5-30R |
| Receptacle Detail | 6 x NEMA 5-20R,1 x NEMA L5-30R |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC,100 V AC,110 V AC,125 V AC |
| Waveform Type | Sine Wave |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 3.40" (86.36 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 23.80" (604.52 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 63.10 lb (28621.68 g) |
| Miscellaneous | |
| Package Contents | 9PX 3000 VA Tower/Rack Mountable UPS 4-post rail kit Safety manual User manual Tower pedestals RS-232 serial cable USB cable Intelligent Power Software Suite CD |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 9PX 3000 VA UPS has a load capacity of 3 kVA (3000 VA) and 2.70 kW. This capacity supports critical IT equipment such as servers, networking gear, and storage systems, providing sufficient backup power for safe shutdowns during outages.
Can this UPS be mounted in a server rack?
Yes, this UPS is designed for both tower and 2U rack mounting. It includes a 4-post rail kit for easy installation in standard server racks, and tower pedestals for standalone use, offering flexibility for various deployment environments.
What types of outlets does this UPS have?
The UPS features seven NEMA outlets: six NEMA 5-20R and one NEMA L5-30R. These outlets are split into separate switched banks, allowing for managed load shedding and prioritized shutdown of connected equipment during extended power failures.
Is the battery hot-swappable?
Yes, the battery is hot-swappable, meaning it can be replaced without powering down the UPS or connected equipment. This feature minimizes downtime and ensures continuous power protection during maintenance.
Does this UPS support remote management?
The UPS includes an RJ-45 port for network connectivity. When paired with the optional NETWORK-M2 Gigabit network card, it enables full remote access and control, allowing monitoring and management from a centralized location.
What is included in the warranty?
The Eaton 9PX 3000 VA UPS comes with a 3-year limited warranty, covering defects in materials and workmanship. This warranty ensures reliable performance and support for long-term power protection needs.
