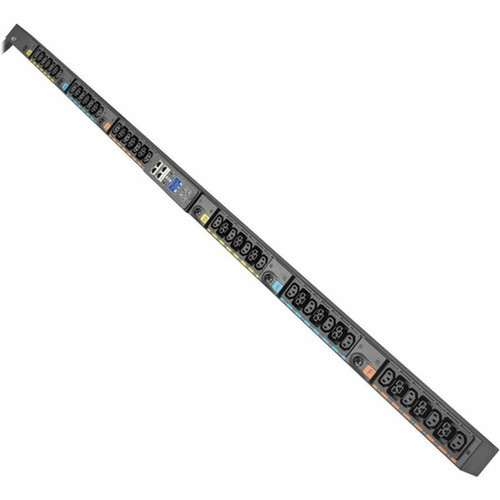

Tripp Lite by Eaton EVMA4609X Eaton G4 42-Outlets PDU - Managed - 17. 3 kW - 230V AC - 24x C13 & 18x C39 Receptacles - 0U Rack - 10 ft Cord
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This managed PDU operates on a three-phase 230V AC input with a 60A current rating, delivering 17.30 kW of total power capacity. The receptacle configuration includes 24 IEC 60320 C13 outlets and 18 IEC 60320 C39 outlets, providing comprehensive connectivity for servers, networking gear, and storage devices.
Network management capabilities are enabled through the integrated RJ-45 port, allowing for remote monitoring, power cycling, and load balancing across connected equipment. The 460P9W plug connector ensures secure power input connection.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Eaton G4 Managed PDU offers advanced power distribution with intelligent management features that enhance data center efficiency and equipment protection. The combination of high outlet density and network connectivity provides administrators with granular control over power delivery.
High-Density Power Distribution
With 42 total receptacles (24 C13 + 18 C39), this PDU maximizes rack space utilization while supporting diverse equipment types across a single power source.
- 24 IEC 60320 C13 outlets
- 18 IEC 60320 C39 outlets
- 17.3 kW total capacity
Intelligent Power Management
Network connectivity enables remote monitoring, outlet-level control, and load balancing to optimize power usage and prevent circuit overloads.
- RJ-45 network interface
- Remote power cycling
- Load monitoring capabilities
Optimized Rack Installation
The 0U vertical form factor preserves valuable rack space while the 10 ft cord provides installation flexibility in various data center configurations.
- Vertical mounting orientation
- 0U rack height
- 10 ft power cord
Deployment / Use Cases
This managed PDU is ideal for data centers, server rooms, and network closets where reliable, monitored power distribution is essential for critical IT infrastructure. The three-phase power input and high outlet count make it suitable for dense server deployments, storage arrays, and networking equipment racks.
The network management capabilities support environments requiring remote power management, including colocation facilities, enterprise data centers, and managed service provider infrastructure. The vertical 0U mounting preserves horizontal rack space for additional equipment while providing centralized power distribution.
Data Center Server Racks
Power multiple servers, switches, and storage devices from a single managed PDU with outlet-level monitoring and control.
Network Equipment Closets
Distribute power to networking gear while maintaining remote management capabilities for troubleshooting and maintenance.

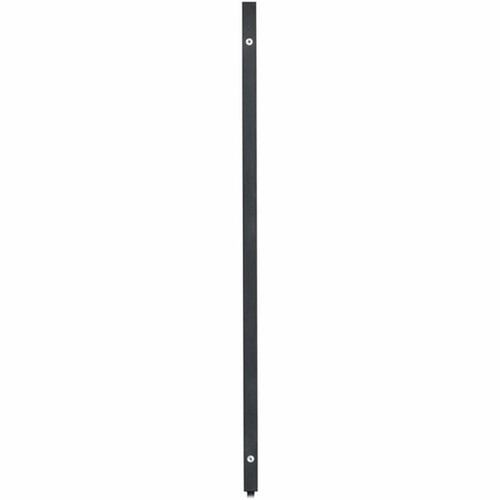

Physical Profile
The Eaton G4 PDU features a vertical rack-mount design with dimensions of 72" height × 2.56" width × 2.05" depth (1828.80 mm × 65.02 mm × 52.07 mm). The 0U form factor mounts vertically in standard 19" racks without consuming horizontal rack units. Weighing approximately 28.20 lb (12.79 kg), the unit maintains a sturdy construction suitable for data center environments. Operating temperature range spans from 32°F to 140°F (0°C to 60°C), ensuring reliable performance in controlled server room conditions.
- Width
- 2.56" (65.02 mm)
- Depth
- 2.05" (52.07 mm)
- Height
- 0U
- Weight
- 28.20 lb (12791.30 g)
- Length
- 10 ft (3.05 m)
Highlights
- Managed PDU with network connectivity for remote monitoring and control
- 17.3 kW power capacity with 230V AC three-phase input
- 42 total outlets: 24 IEC C13 and 18 IEC C39 receptacles
- Vertical 0U rack mounting preserves horizontal rack space
- 10 ft (3.05 m) power cord for flexible installation
- Three-phase power distribution for high-density equipment
- 460P9W plug connector for secure power input
- Operating temperature range: 32°F to 140°F (0°C to 60°C)
- 3-year limited warranty for reliable performance
- Compact dimensions: 72" H × 2.56" W × 2.05" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | EVMA4609X |
| Brand Name | Eaton |
| Product Series | G4 |
| Product Name | G4 42-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Managed |
| Phase | Three Phase |
| Plug/Connector Type | 460P9W |
| Receptacle Type | IEC 60320 C13,IEC 60320 C39 |
| Receptacle Detail | 24 x IEC 60320 C13,18 x IEC 60320 C39 |
| Power Description | |
| Input Voltage | 230 V AC |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 60 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Form Factor | Rack |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 72" (1828.80 mm) |
| Width | 2.56" (65.02 mm) |
| Depth | 2.05" (52.07 mm) |
| Length | 2.05" (52.07 mm) |
| Weight (Approximate) | 28.20 lb (12791.30 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the total power capacity of this Eaton G4 PDU?
The Eaton G4 Managed PDU delivers 17.30 kW of total power capacity, operating on a 230V AC three-phase input with 60A current rating. This capacity supports high-density server and equipment deployments in data center environments.
How many outlets does this PDU have and what types are they?
This PDU features 42 total outlets, consisting of 24 IEC 60320 C13 receptacles and 18 IEC 60320 C39 receptacles. This configuration supports a wide range of server, networking, and storage equipment with standard power connectors.
What does 'managed PDU' mean for this Eaton unit?
As a managed PDU, this unit includes network connectivity via an RJ-45 port that enables remote monitoring, outlet-level control, and power management. Administrators can monitor power consumption, remotely cycle outlets, and balance loads across connected equipment.
How is this PDU mounted in a server rack?
The Eaton G4 PDU is designed for vertical 0U rack mounting, meaning it installs vertically in standard 19" racks without consuming horizontal rack units. This preserves valuable rack space for servers and other equipment while providing centralized power distribution.
What is the input voltage and phase configuration?
This PDU operates on 230V AC three-phase power input with a 460P9W plug connector. The three-phase configuration provides efficient power distribution for high-density equipment deployments in commercial and data center environments.
What is the length of the power cord included with this PDU?
The Eaton G4 Managed PDU includes a 10 ft (3.05 m) power cord, providing flexibility in installation and positioning within server racks and data center environments. The cord length accommodates various rack configurations and power source locations.
What power capacity is listed for this UPS?
The listed power specification is 17.30 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
