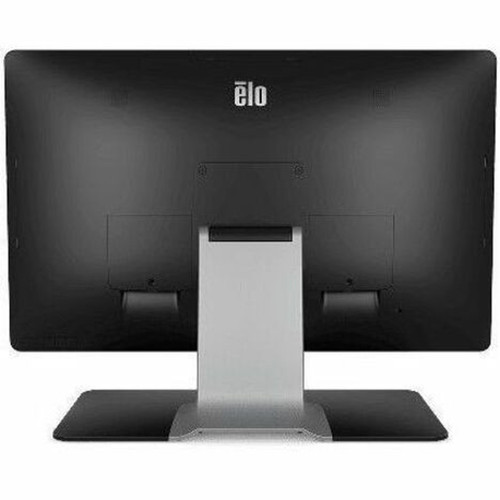

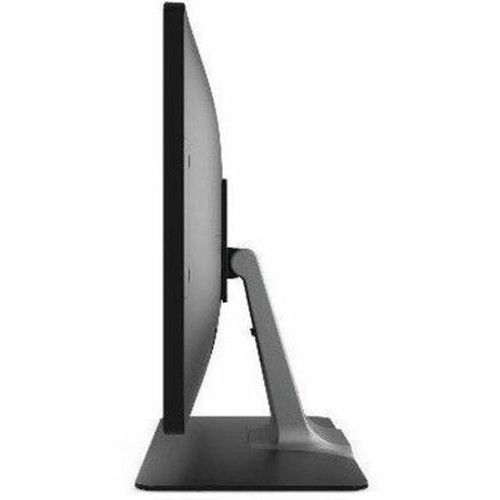

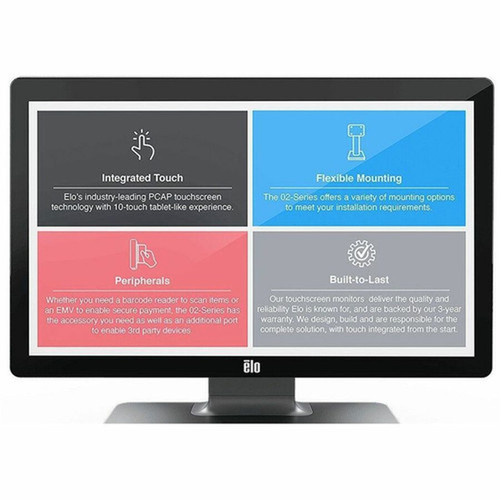

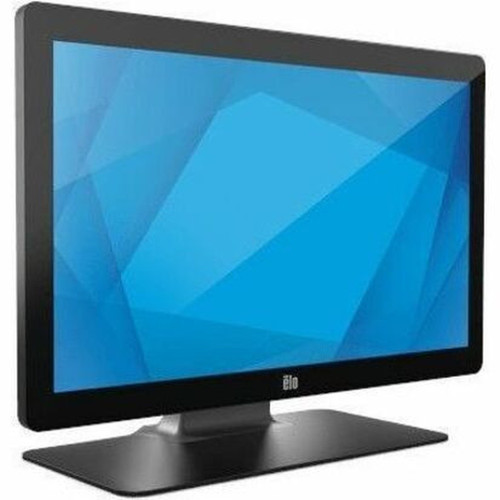

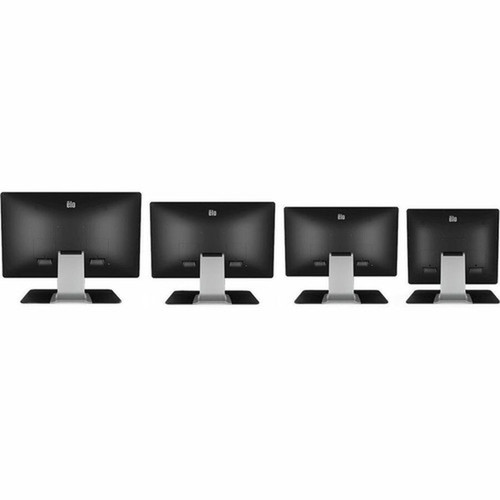

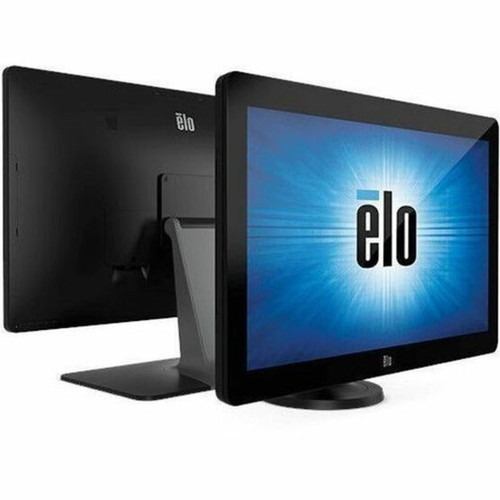

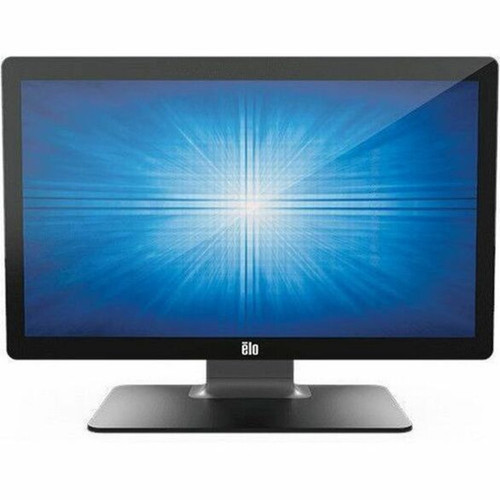

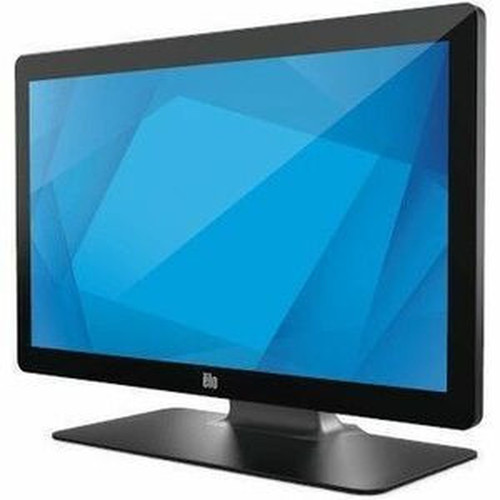

Elo 2202L 22" Class LED Touchscreen Monitor - 16:9 - 14 ms - 21.5" Viewable - TouchPro Projected Capacitive - 10 Point(s) Multi-touch (E159758)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 2202L 22" Touchscreen Monitor
- Stand
- Quick Install Guide
- 3 x Tie Wraps
- VGA Cable
- HDMI Cable
- Touch USB Cable
- Audio Cable
- Power Brick
- Power Cable
Screen Size Class: 22"
Viewable Screen Size: 21.5"
Screen Mode: Full HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 14 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Wall Mountable,Pole Mount,Shelf Mount
Backlight Technology: LED
Features: Wide Viewing Angle,Anti-glare,On-screen Display (OSD),OSD/Power Lock,Bezel-less Design
Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Ingress Protection (IP) Rating: IPX1
Impact Protection (IK) Rating: IK06
Active Display Area (H x V): 18.70" (474.98 mm) x 10.50" (266.70 mm)
Maximum Resolution: 1920 x 1080
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Speakers: Yes
Touchscreen Type: TouchPro Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
HDMI: Yes
USB: Yes
VGA: Yes
Number of USB Ports: 4
Built-in Devices: USB Hub
Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
Operating Humidity Range: 20% to 80% (Non-condensing)
Operating Power Consumption: 16.78 W
Color Family: Black
Product Color: Black
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 12.87" (326.90 mm)
Width: 20.74" (526.80 mm)
Depth: 1.68" (42.67 mm)
Height with Stand: 15.11" (383.79 mm)
Width with Stand: 20.74" (526.80 mm)
Depth with Stand: 7.61" (193.29 mm)
Weight (Approximate): 10.47 lb (4749.11 g)
Weight with Stand (Approximate): 14.88 lb (6749.45 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- Enjoy vibrant visuals and responsive interaction with the advanced full hd, led touchscreen monitor LED touchscreen
- The Full HD screen size with Full HD resolution (19201080) delivers sharp, detailed visuals without quality loss or downscaling
- LED backlight technology reduces power use and hazardous materials for eco-friendly performance
- Enjoy crisp visuals and vibrant hues with 250 cd/m² brightness for effortless touch navigation
- 16.7 million colors supported for lifelike visuals and smooth touch-based creative workflows
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
- HDMI connectivity supports HD devices like gaming consoles, laptops, and cameras for an ultimate high-definition experience
[custom-specifications]
| Specifications | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E159758 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Series | 02 |
| Product Model | 2202L |
| Product Name | 2202L 22" Touchscreen Monitor |
| Product Type | LED Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 22" |
| Viewable Screen Size | 21.5" |
| Screen Mode | Full HD |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 14 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Wall Mountable,Pole Mount,Shelf Mount |
| Backlight Technology | LED |
| Features | Wide Viewing Angle,Anti-glare,On-screen Display (OSD),OSD/Power Lock,Bezel-less Design |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Ingress Protection (IP) Rating | IPX1 |
| Impact Protection (IK) Rating | IK06 |
| Active Display Area (H x V) | 18.70" (474.98 mm) x 10.50" (266.70 mm) |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 250 cd/m² |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 4 |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Power Description | |
| Operating Power Consumption | 16.78 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 12.87" (326.90 mm) |
| Width | 20.74" (526.80 mm) |
| Depth | 1.68" (42.67 mm) |
| Height with Stand | 15.11" (383.79 mm) |
| Width with Stand | 20.74" (526.80 mm) |
| Depth with Stand | 7.61" (193.29 mm) |
| Weight (Approximate) | 10.47 lb (4749.11 g) |
| Weight with Stand (Approximate) | 14.88 lb (6749.45 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
