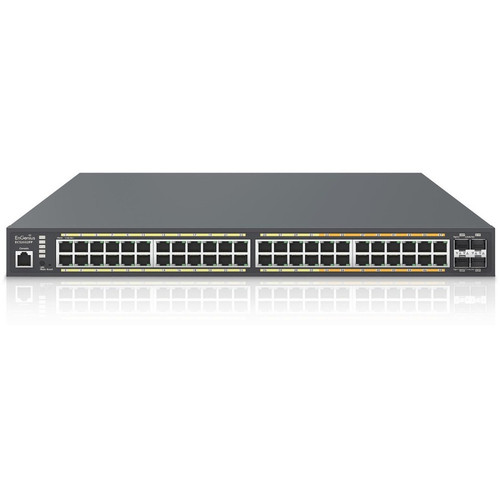

EnGenius ECS2552FP 48-Port Managed Ethernet Switch - 740W PoE Budget - 4x SFP+ Uplinks - Layer 2 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ECS2552FP supports a comprehensive set of Ethernet technologies, including 10/100/1000Base-T and 10GBase-X, ensuring compatibility with a wide range of network devices and future-ready 10 Gigabit uplinks. Its four SFP+ slots enable flexible fiber or copper uplink connections, extending network reach and bandwidth aggregation. The switch adheres to key IEEE standards such as 802.3af/at for PoE, 802.1Q for VLANs, 802.1x for port-based authentication, and 802.3az for energy-efficient Ethernet.
Power management is a core strength, with a 740W PoE budget distributed across the 48 ports to support PoE and PoE+ devices. The switch operates on dual voltage inputs of 120V AC and 230V AC, accommodating various regional power standards. With a power consumption of 913W under full load, it balances high-performance delivery with operational efficiency.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch combines high port density with advanced management capabilities, making it an ideal choice for businesses that need to scale their network infrastructure without compromising on control or power delivery.
High-Density Connectivity
With 48 Gigabit Ethernet ports, the ECS2552FP connects a large number of devices, reducing the need for multiple switches and simplifying network topology.
- 48 ports for extensive device connectivity
- Reduces hardware sprawl and management overhead
Substantial PoE Budget
The 740W PoE budget supports power-hungry devices across all ports, enabling centralized power management for IP telephony, wireless networks, and surveillance systems.
- Powers PoE and PoE+ devices simultaneously
- Eliminates the need for separate power injectors
Flexible Uplink Options
Four SFP+ slots provide 10 Gigabit uplink capabilities, allowing for high-bandwidth connections to core switches or servers using fiber or copper transceivers.
- Supports fiber and copper uplinks
- Enables network segmentation and bandwidth aggregation
Deployment / Use Cases
The EnGenius ECS2552FP is suited for medium to large business environments where reliable, managed switching with power delivery is essential. Its port density and PoE capacity make it a versatile solution for modern office networks, educational campuses, and retail environments.
In office deployments, this switch can connect workstations, IP phones, and wireless access points while providing VLAN segmentation for security and traffic management. For surveillance installations, it powers multiple IP cameras and records video traffic over the network. In educational settings, it supports computer labs, digital classrooms, and campus Wi-Fi networks with centralized management and PoE.
Enterprise Office Networks
Deploy as a core access switch to connect desks, conference rooms, and common areas with managed features for security and performance.
IP Surveillance Systems
Power and connect multiple high-resolution IP cameras, with VLAN support to isolate video traffic and ensure network stability.

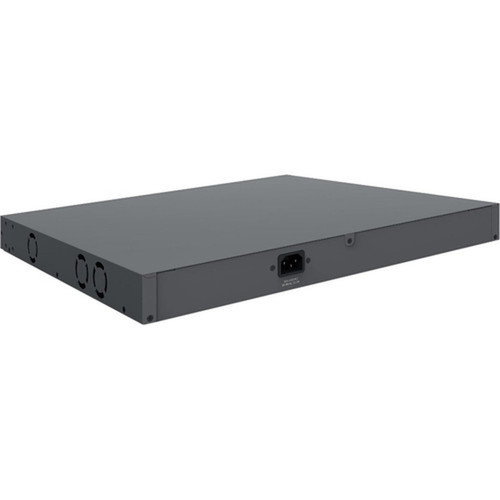

Physical Profile
The switch features a compact 1U rack-mountable design with dimensions of 1.73 inches in height, 12.20 inches in width, and 17.32 inches in depth. This form factor fits standard 19-inch server racks, optimizing data center or wiring closet space. The included rack mount kit facilitates secure installation, while the weight of 10.74 pounds ensures stable mounting without excessive load on rack rails.
- Width
- 12.20" (309.88 mm)
- Depth
- 17.32" (439.93 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 10.74 lb (4871.58 g)
What's in the Box
The package includes all necessary components for immediate deployment and setup.
Highlights
- 48 Gigabit Ethernet ports for high-density connectivity
- 740W PoE budget powers PoE and PoE+ devices across all ports
- 4 SFP+ slots for 10 Gigabit fiber or copper uplinks
- Layer 2 managed switch with advanced network control features
- Rack-mountable 1U form factor for professional installation
- Supports IEEE 802.3af/at for PoE and 802.1Q for VLANs
- Dual voltage input (120V AC / 230V AC) for global compatibility
- Includes rack mount kit, power cord, and console cable
Specifications
| Specifications | |
|---|---|
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | ECS2552FP |
| Brand Name | EnGenius |
| Product Series | ECS |
| Product Model | ECS2552FP |
| Product Name | ECS2552FP Ethernet Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Ports,4 x 10 Gigabit Expansion Slots |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at,IEEE 802.1p,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3az |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Consumption | 913 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 12.20" (309.88 mm) |
| Depth | 17.32" (439.93 mm) |
| Weight (Approximate) | 10.74 lb (4871.58 g) |
| Miscellaneous | |
| Package Contents | ECS2552FP Ethernet Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many devices can this switch power with PoE?
The EnGenius ECS2552FP has a 740W PoE budget, which can power multiple PoE and PoE+ devices simultaneously across its 48 ports. This capacity supports devices like IP phones, wireless access points, and security cameras without requiring separate power sources. The exact number of devices depends on their individual power requirements, but the switch is designed to handle high-density PoE deployments in business environments.
What types of uplink connections are supported?
This switch includes four SFP+ slots that support 10 Gigabit uplink connections. You can use SFP+ transceivers for fiber optic or copper uplinks, providing flexibility for connecting to core switches, servers, or other network segments. These uplinks enable high-bandwidth aggregation and extend network reach beyond the standard twisted pair connections.
Is this switch manageable, and what features does it offer?
Yes, the ECS2552FP is a fully manageable Layer 2 switch. It offers features such as VLAN support (IEEE 802.1Q), Quality of Service (QoS) for traffic prioritization, port-based authentication (IEEE 802.1x), and Spanning Tree Protocol (STP) for network redundancy. These management capabilities allow for secure, efficient, and controlled network operations in business settings.
What are the physical dimensions and rack compatibility?
The switch measures 1.73 inches in height, 12.20 inches in width, and 17.32 inches in depth, making it a standard 1U rack-mountable device. It is designed to fit 19-inch server racks, and the package includes a rack mount kit for easy installation. This compact form factor is ideal for data centers, wiring closets, or any rack-based network infrastructure.
What power input voltages does the switch support?
The EnGenius ECS2552FP supports dual voltage inputs of 120V AC and 230V AC, allowing it to operate in various regions with different power standards. This flexibility ensures compatibility in North American and international deployments without requiring external voltage converters, simplifying installation and reducing hardware dependencies.
What is included in the package for setup?
The package contains the ECS2552FP Ethernet switch, a quick installation guide, a power cord, an RJ45 console cable for management access, and a rack mount kit. These components provide everything needed for initial setup, configuration, and installation in a rack environment, ensuring a smooth deployment process.
