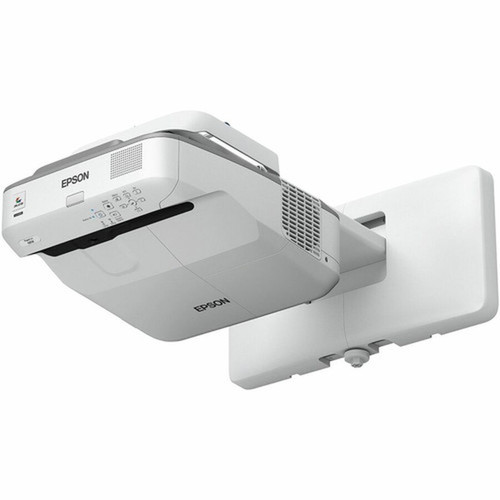

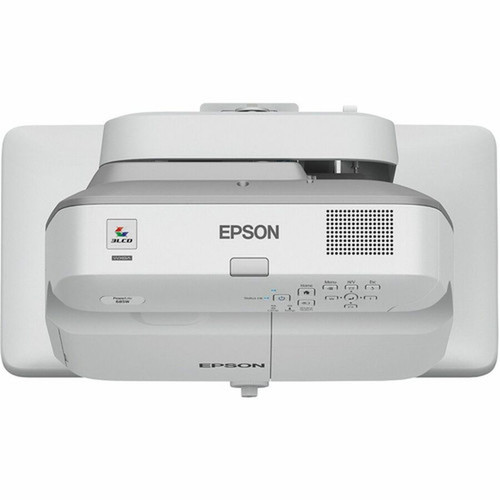

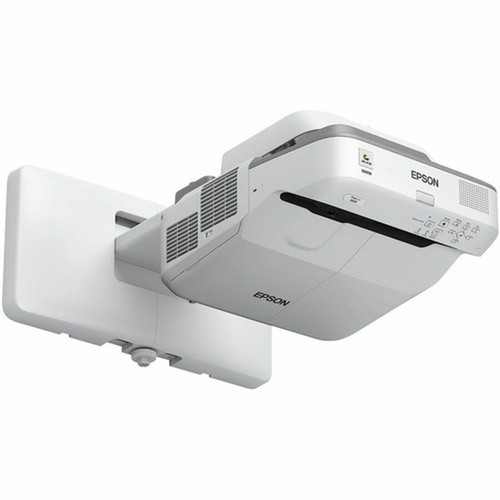

Epson V11H744520 PowerLite 685W Ultra Short Throw LCD Projector - 3500 lm - WXGA 1280 x 800 - 16: 10 - HDMI/USB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Epson PowerLite 685W is an ultra short throw LCD projector engineered for professional presentation environments where space constraints demand flexible installation options. With its 3500 lumen brightness output and WXGA 1280x800 native resolution, this projector delivers crisp, vibrant images suitable for boardrooms, classrooms, and training facilities.
Built around Epson's 3LCD technology, the PowerLite 685W maintains consistent color brightness and eliminates color breakup artifacts common in single-chip projectors. The ultra short throw lens allows placement just inches from the projection surface, minimizing shadows and glare while maximizing usable room space. This model supports both rear and front projection methods, providing installation versatility for permanent mounts or temporary setups.
Relevant factors for this section include Projection Method, Native Resolution, Graphic Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
The PowerLite 685W features a native WXGA (1280x800) resolution with 16:10 aspect ratio, optimized for widescreen computer content and modern presentation formats. Maximum resolution support extends to 1400x1050, ensuring compatibility with various source devices. The 3500 lumen brightness rating ensures clear visibility even in moderately lit environments.
Projection capabilities center on the ultra short throw lens with 3.7mm maximum focal length, enabling large 100-inch diagonal images from minimal throw distances. The single UHE lamp delivers 5000 hours of operation in normal mode and extends to 10000 hours in economy mode, reducing long-term maintenance costs. HDMI and USB connectivity provide direct digital input options for modern media sources.
Relevant factors for this section include Projection Method, Native Resolution, Graphic Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PowerLite 685W combines installation flexibility with reliable performance for demanding presentation scenarios. The ultra short throw design eliminates traditional projection distance requirements, making it ideal for rooms with limited depth or where presenters need to stand close to the screen without casting shadows.
Space-Efficient Design
Place the projector mere inches from the wall or screen to project large 100-inch images, perfect for confined spaces where conventional projectors cannot fit.
- Minimizes shadow interference
- Reduces installation footprint
- Enables closer presenter positioning
Extended Lamp Economy
The UHE lamp delivers up to 10000 hours of operation in economy mode, significantly reducing total cost of ownership through fewer lamp replacements.
- 5000 hours normal mode
- 10000 hours economy mode
- Lower maintenance frequency
Modern Connectivity
HDMI and USB ports provide direct connections to laptops, media players, and storage devices without requiring additional adapters or converters.
- Digital HDMI input
- USB display capability
- Broad device compatibility
Deployment / Use Cases
The PowerLite 685W serves effectively in educational, corporate, and institutional settings where presentation clarity and installation flexibility are paramount. Its ultra short throw capability makes it particularly valuable in rooms with architectural constraints or where traditional projector placement would interfere with room traffic.
In classroom environments, teachers can interact directly with projected content without standing in the light path. Corporate training facilities benefit from the ability to install multiple units in compact breakout rooms. The rear projection option enables creative installation behind translucent screens for clean, cable-free front-of-room appearances.
Education & Training
Ideal for interactive classrooms where instructors need proximity to the screen without shadow interference. The WXGA resolution displays detailed educational content clearly.
Corporate Presentations
Suits boardrooms and meeting spaces with limited depth. The 3500 lumen output maintains image quality in rooms with ambient lighting from windows or fixtures.
Physical Profile
The projector measures 14.50" wide × 15.80" deep × 5.90" high (368.30 × 401.32 × 149.86 mm) and weighs approximately 12.60 lb (5715.26 g). This compact form factor supports tabletop placement, shelf mounting, or permanent ceiling installation. The included projector feet provide stability on uneven surfaces, while the RoHS compliance ensures environmentally responsible manufacturing.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.90" (149.86 mm), 14.50" (368.30 mm), 15.80" (401.32 mm), 12.60 lb (5715.26 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 14.50" (368.30 mm)
- Depth
- 15.80" (401.32 mm)
- Height
- 5.90" (149.86 mm)
- Weight
- 12.60 lb (5715.26 g)
- Length
- 3.7 mm (0.15")
What's in the Box
The package includes all essential components for immediate setup and operation.
Highlights
- 3500 lumen brightness for clear visibility in various lighting conditions
- Ultra short throw lens projects 100-inch images from minimal distances
- WXGA 1280x800 native resolution with 16:10 widescreen aspect ratio
- 5000/10000 hour lamp life in normal/economy modes reduces maintenance
- HDMI and USB connectivity for modern digital source devices
- Rear and front projection compatibility for installation flexibility
- 3LCD technology maintains consistent color brightness without rainbow effect
- Compact design measures 14.5"W × 15.8"D × 5.9"H for space-efficient placement
- RoHS compliant construction meets environmental standards
- Includes remote control, software, and complete installation accessories
Specifications
| Specifications | |
|---|---|
| Manufacturer | Epson Corporation |
| Manufacturer Part Number | V11H744520 |
| Brand Name | Epson |
| Product Line | PowerLite |
| Product Model | 685W |
| Product Name | PowerLite 685W WXGA 3LCD Presentation Display |
| Packaged Quantity | 1 Each |
| Product Type | LCD Projector |
| Technical Information | |
| Projection Method | Rear,Front |
| Display & Graphics | |
| Native Resolution | 1280 x 800 |
| Graphic Mode | WXGA |
| Maximum Resolution | 1400 x 1050 |
| Native Aspect Ratio | 16:10 |
| Projection Lens | |
| Throw Type | Ultra Short Throw |
| Maximum Focal Length | 3.7 mm (0.15") |
| Maximum Diagonal Image Size | 100" (2540 mm) |
| Lamp | |
| Number of Lamps | 1 |
| Lamp Type | UHE |
| Lamp Power | 250 W |
| Normal Mode Lamp Life | 5000 Hour |
| Economy Mode Lamp Life | 10000 Hour |
| Image | |
| Standard Mode Brightness | 3500 lm |
| Video | |
| Video Signal Standard | HDTV |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| Power Description | |
| Operating Power Consumption | 373 W |
| Physical Characteristics | |
| Height | 5.90" (149.86 mm) |
| Width | 14.50" (368.30 mm) |
| Depth | 15.80" (401.32 mm) |
| Weight (Approximate) | 12.60 lb (5715.26 g) |
| Miscellaneous | |
| Package Contents | PowerLite 685W WXGA 3LCD Presentation Display 15' Power Cord Projector Remote Control Batteries User Manual CD Projector Software CDs Quick Setup Sheet Installation Guide Template Sheet Projector Feet |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
User Manual
FAQ
What is the advantage of an ultra short throw projector?
Ultra short throw projectors like the PowerLite 685W can be placed very close to the projection surface—often just inches away—while still producing large images. This eliminates shadows cast by presenters standing near the screen, reduces installation space requirements, and minimizes light beam interference in room traffic areas. It's particularly valuable in confined spaces where traditional projectors cannot achieve sufficient throw distance.
How bright is the 3500 lumen rating in practical use?
The 3500 lumen brightness provides excellent visibility in rooms with controlled ambient light, such as classrooms with window shades or boardrooms with dimmable fixtures. This output level ensures clear, vibrant images for presentations, videos, and detailed graphics without requiring complete darkness. For larger venues or brighter environments, consider higher lumen models, but 3500 lumens suits most mid-sized presentation spaces effectively.
What does the 5000/10000 hour lamp life mean?
The lamp offers 5000 hours of operation in normal brightness mode and extends to 10000 hours in economy mode, which slightly reduces brightness to conserve lamp life. This extended lifespan significantly lowers total cost of ownership by reducing frequency of lamp replacements. Based on typical daily use of 4-6 hours, the lamp could last 2-4 years in normal mode or 4-8 years in economy mode before requiring replacement.
Can this projector display content from modern laptops and media players?
Yes, the HDMI port supports digital video and audio from laptops, Blu-ray players, streaming devices, and other HDMI-equipped sources. The USB port allows direct display from compatible computers without additional cables. The projector also accepts HDTV signals and supports resolutions up to 1400x1050, ensuring compatibility with various presentation devices and media formats.
What size image can this projector produce?
The PowerLite 685W can project images up to 100 inches diagonally when using the ultra short throw lens at its maximum focal length. Actual image size depends on installation distance and screen selection. The 16:10 aspect ratio is ideal for widescreen computer content and modern presentation slides, providing more vertical space than traditional 16:9 formats for displaying toolbars and content simultaneously.
Is this projector suitable for permanent ceiling installation?
Yes, the compact dimensions and weight of approximately 12.6 pounds make it suitable for ceiling mounting using compatible projector mounts. The ultra short throw capability allows ceiling installation closer to the screen than conventional projectors, potentially simplifying cable routing and reducing mount extension requirements. Always consult a professional installer for proper mounting hardware and safety considerations.
