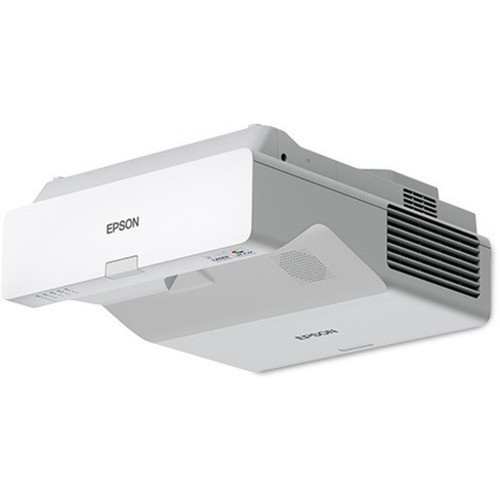

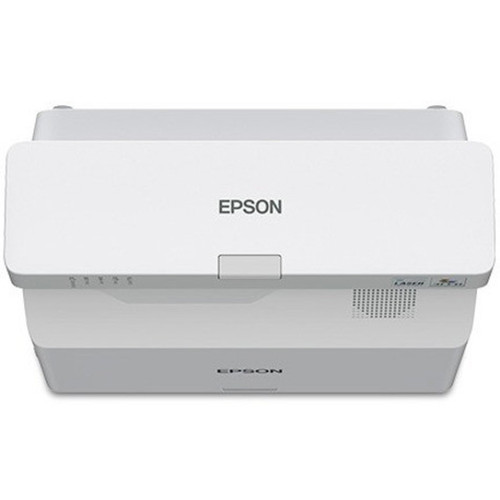

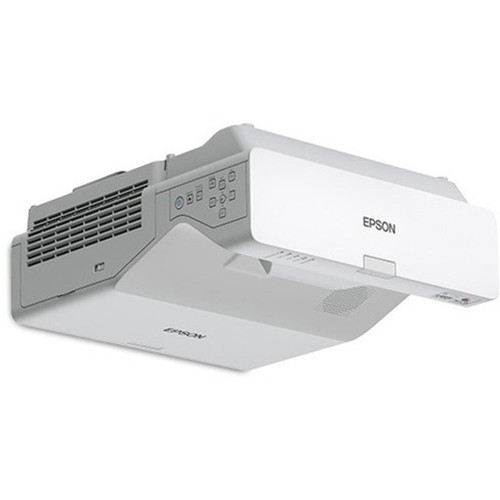

Epson V11HA81020 PowerLite 760W Ultra Short Throw 3LCD Projector - 4100 lm - WXGA 1280 x 800 - Laser Diode - Wall Mountable & Tabletop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Epson PowerLite 760W Ultra Short Throw 3LCD Projector delivers professional-grade projection for demanding educational and business environments. This laser-based projector combines high brightness with exceptional color accuracy through Epson's 3LCD technology, ensuring vibrant, consistent images without color breakup.
With its ultra short throw design, the projector can be placed just inches from the wall or screen, minimizing shadows and glare while maximizing usable space. The 4100-lumen output maintains visibility even in well-lit rooms, and the 2,500,000:1 contrast ratio provides deep blacks and detailed shadows for enhanced visual impact.
Relevant factors for this section include Projection Method, Native Resolution, Graphic Mode, Native Aspect Ratio. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
The PowerLite 760W features a native WXGA resolution (1280 x 800) with a 16:10 aspect ratio, optimized for widescreen content and presentations. The laser diode light source eliminates traditional lamp replacement concerns, offering 20,000 hours of operation in normal mode and up to 30,000 hours in economy mode.
The projector's optical system includes a 1.4x optical zoom and a maximum focal length of 3.7 mm, allowing flexible placement while maintaining image quality. It projects images from 13.30 inches to 36.50 inches away, creating diagonal image sizes up to 12.5 feet.
Relevant factors for this section include Projection Method, Native Resolution, Graphic Mode, Native Aspect Ratio. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This projector stands out with its combination of laser reliability, installation flexibility, and professional-grade image quality. The ultra short throw capability makes it ideal for interactive applications where presenters need to stand close to the screen without casting shadows.
Installation Versatility
Designed for both wall mounting and tabletop use, the PowerLite 760W adapts to various classroom and meeting room configurations. The compact dimensions (5.30" H × 14.10" W × 15.60" D) ensure it fits comfortably in tight spaces.
- Wall mountable design
- Tabletop ready
- Compact footprint
Connectivity Suite

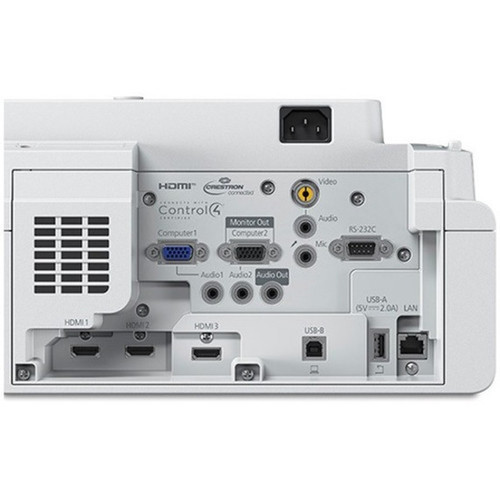

Multiple input options provide flexibility for different source devices. HDMI delivers high-quality video and audio, USB enables PC-free projection, and wired/wireless network connectivity supports remote management and content sharing.
- HDMI input
- USB connectivity
- Wired and wireless LAN
Deployment / Use Cases
The PowerLite 760W is specifically designed for educational environments and professional presentation spaces. Its ultra short throw capability makes it perfect for interactive whiteboard applications, while the high brightness ensures content remains visible in classrooms with ambient light.
Business meeting rooms benefit from the projector's reliable laser light source and flexible connectivity options. The ability to project large images from minimal distances makes it suitable for boardrooms, training facilities, and collaborative workspaces where space optimization is crucial.
Classroom Applications
Ideal for K-12 and higher education settings where teachers need to interact directly with projected content. The ultra short throw design eliminates shadows during instruction.
Corporate Environments
Suited for conference rooms, training centers, and digital signage applications where consistent, reliable projection is required for daily business operations.
Physical Profile
The projector features a professional black finish with dimensions designed for versatile installation. At 13.20 pounds, it's substantial enough for stable mounting while remaining manageable for installation teams. The included feet provide stable tabletop positioning, and standard VESA mounting patterns support secure wall or ceiling installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.30" (134.62 mm), 14.10" (358.14 mm), 15.60" (396.24 mm), 13.20 lb (5987.42 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 14.10" (358.14 mm)
- Depth
- 15.60" (396.24 mm)
- Height
- 5.30" (134.62 mm)
- Weight
- 13.20 lb (5987.42 g)
- Length
- 3.7 mm (0.15")
What's in the Box
The projector ships complete with all essential components for immediate setup and operation.
Highlights
- 4100-lumen brightness for visible projection in lit rooms
- Laser diode light source with 20,000-hour normal mode life
- Ultra short throw design projects from just 13.30 inches away
- 3LCD technology for consistent color and no rainbow effect
- WXGA resolution (1280 x 800) with 16:10 widescreen aspect ratio
- HDMI, USB, and wired/wireless network connectivity
- Wall mountable and tabletop form factor options
- 2,500,000:1 contrast ratio for detailed image depth
- 1.4x optical zoom for placement flexibility
- RoHS compliant and environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Epson Corporation |
| Manufacturer Part Number | V11HA81020 |
| Brand Name | Epson |
| Product Line | PowerLite |
| Product Model | 760W |
| Product Name | PowerLite 760W 3LCD Projector |
| Product Type | 3LCD Projector |
| Technical Information | |
| Projection Method | Front,Rear |
| Display & Graphics | |
| Native Resolution | 1280 x 800 |
| Graphic Mode | WXGA |
| Native Aspect Ratio | 16:10 |
| Projection Lens | |
| Throw Type | Ultra Short Throw |
| Maximum Focal Length | 3.7 mm (0.15") |
| Maximum Diagonal Image Size | 12.50 ft (3810 mm) |
| Optical Zoom | 1.4x |
| Minimum Projection Distance | 13.30" (337.82 mm) |
| Maximum Projection Distance | 36.50" (927.10 mm) |
| Lamp | |
| Number of Lamps | 1 |
| Lamp Type | Laser Diode |
| Normal Mode Lamp Life | 20000 Hour |
| Economy Mode Lamp Life | 30000 Hour |
| Image | |
| Standard Mode Brightness | 4100 lm |
| Contrast Ratio | 2,500,000:1 |
| Network & Communication | |
| Wireless LAN | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Operating Power Consumption | 277 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Tabletop |
| Height | 5.30" (134.62 mm) |
| Width | 14.10" (358.14 mm) |
| Depth | 15.60" (396.24 mm) |
| Weight (Approximate) | 13.20 lb (5987.42 g) |
| Miscellaneous | |
| Application/Usage | Education,Class Room |
| Package Contents | PowerLite 760W Ultra Short Throw Laser Projector Quick Start Guide, 6' Power Cable Projector Remote Control Two (2) AA Batteries (For Remote) Feet |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the advantage of an ultra short throw projector?
Ultra short throw projectors can be placed very close to the screen or wall, typically just inches away. This eliminates shadows cast by presenters standing in front of the screen, reduces glare from the projector light hitting presenters' eyes, and maximizes usable room space since the projector doesn't need to be mounted in the middle of the room.
How does the laser diode light source compare to traditional lamps?
The laser diode light source in the PowerLite 760W offers significantly longer life than traditional projector lamps—20,000 hours in normal mode versus typically 3,000-6,000 hours for lamps. Lasers also maintain consistent brightness throughout their life, don't require warm-up or cool-down periods, and are more resistant to vibration and shock.
What resolution does this projector support?
The PowerLite 760W has a native resolution of 1280 x 800 pixels, which is WXGA format with a 16:10 aspect ratio. This widescreen resolution is well-suited for modern computer presentations, videos, and educational content. While it can accept various input signals, the native resolution provides the sharpest image quality.
Can this projector be used without a computer?
Yes, the USB connectivity allows for PC-free projection. You can connect USB storage devices directly to the projector to display images, PDFs, and presentation files. The projector also supports wireless connectivity for streaming content from compatible devices without physical cable connections.
What mounting options are available?
The PowerLite 760W is designed for both wall mounting and tabletop use. It includes adjustable feet for stable tabletop positioning and supports standard VESA mounting patterns for secure wall or ceiling installation. The compact dimensions (5.30" H × 14.10" W × 15.60" D) make it suitable for various installation scenarios.
What is the warranty coverage for this projector?
Epson provides a 3-year limited warranty for the PowerLite 760W projector. This warranty covers defects in materials and workmanship under normal use. The laser light source is covered for the duration of the warranty period, providing comprehensive protection for your investment.
