Ergotron 45-694-216 HX Wall Monitor Arm with VHD Pivot - White - 9.1" to 57" Screen Support - 37.48 lb Load Capacity
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This mounting arm delivers precise adjustability with a tilt range from -5° to 25°, a pivot capability of up to 20°, and a pan angle of 180°, allowing users to optimize viewing angles for comfort and productivity. It supports VESA mount patterns of 100 x 100 mm and 75 x 75 mm, ensuring compatibility with most modern monitors.
Built with heavy-duty materials, the arm includes integrated cable management to keep desk areas tidy and organized. The form factor supports both wall and desk mounting, providing flexibility in installation based on space requirements and user preference.
Relevant factors for this section include Device Supported, Minimum Load Capacity, Maximum Load Capacity, Color Family. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Ergotron HX arm stands out with its exceptional load capacity and broad screen size support, making it a reliable choice for demanding display setups. Its adjustable features enhance ergonomic positioning, reducing strain during extended use.
Enhanced Ergonomics
With tilt, pivot, and pan adjustments, users can achieve the perfect viewing angle to minimize neck and eye fatigue, promoting better posture in both office and gaming scenarios.
- Tilt: -5° to 25°
- Pivot: Up to 20°
- Pan: 180° range
Robust Construction
Designed for durability, this arm handles heavy monitors up to 37.48 pounds, ensuring stability and safety for premium displays without sagging or wobble over time.
Deployment / Use Cases
Ideal for office environments, this mounting arm helps declutter desks by lifting monitors off the surface, freeing up valuable workspace for documents and peripherals. Its adjustable nature supports collaborative settings where screen sharing is frequent.
In gaming setups, the arm accommodates large curved monitors like the Samsung Odyssey G9, providing immersive viewing angles and flexible positioning for competitive play or streaming. The cable management keeps gaming stations organized, reducing tripping hazards and maintaining a sleek aesthetic.
Office Productivity
Maximize desk space and improve ergonomics in corporate or home offices, supporting dual-monitor configurations or single large displays for multitasking.
Gaming Immersion
Enhance gaming experiences by positioning curved monitors at optimal heights and angles, with the strength to hold high-end gaming displays securely.
Physical Profile
The arm features a white color scheme that complements modern office and gaming decor. With an approximate weight of 14 pounds, it is substantial enough to provide stability without being overly cumbersome during installation. The design integrates smoothly into both wall-mounted and desk-mounted setups, offering a low-profile appearance that keeps focus on the display itself.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 14 lb (6350.29 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 14 lb (6350.29 g)

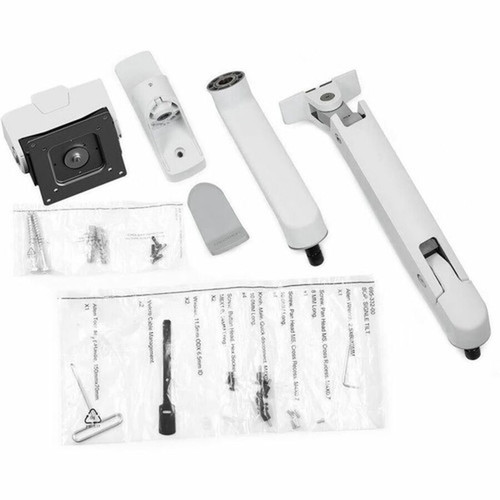

What's in the Box
This product includes all necessary components for installation: an arm extension, VHD pivot, wall mount, and mounting hardware. These parts ensure a complete setup right out of the box, with no additional purchases required for standard mounting scenarios.
Highlights
- Supports curved screen displays from 9.1" to 57" in size
- Handles maximum load capacity of 37.48 lb (17000 g) for heavy monitors
- Features tilt, pivot, and pan adjustments for ergonomic positioning
- VESA mount compatible with 100 x 100 mm and 75 x 75 mm patterns
- Includes cable management to organize wires and reduce clutter
- White color finish for a clean, professional look
- Suitable for both office and gaming applications
- Comes with a 10-year limited warranty for long-term reliability
- Form factor supports wall and desk mounting options
- Package includes arm extension, VHD pivot, wall mount, and hardware
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ergotron, Inc |
| Manufacturer Part Number | 45-694-216 |
| Brand Name | Ergotron |
| Product Series | HX |
| Product Name | HX Wall Monitor Arm with VHD Pivot (White) |
| Product Type | Mounting Arm |
| Product Information | |
| Device Supported | Monitor,Curved Screen Display |
| Minimum Load Capacity | 28.66 lb (13000 g) |
| Maximum Load Capacity | 37.48 lb (17000 g) |
| Minimum Screen Size Supported | 9.1" |
| Maximum Screen Size Supported | 57" |
| Features | Pivot,Heavy Duty,Tilt,Adjustable,Cable Management |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 25° |
| Maximum Rotate Angle | 20° |
| Maximum Pan Angle | 180° |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 100 x 100,75 x 75 |
| Form Factor | Wall Mountable,Desk |
| Weight (Approximate) | 14 lb (6350.29 g) |
| Miscellaneous | |
| Package Contents | Arm Extension VHD Pivot Wall Mount Mounting Hardware |
| Application/Usage | Office,Gaming |
| Compatibility | Samsung 57" Odyssey G9 Gaming Monitor |
| Warranty | |
| Limited Warranty | 10 Year |
User Manual
FAQ
What is the maximum screen size this monitor arm can support?
The Ergotron HX Wall Monitor Arm supports screens up to 57 inches diagonally, making it suitable for large curved displays like the Samsung Odyssey G9. It also accommodates smaller monitors down to 9.1 inches, providing versatility for various setup sizes.
How much weight can this mounting arm hold securely?
This arm has a maximum load capacity of 37.48 pounds (17000 grams), designed to handle heavy monitors with stability. It also supports a minimum load of 28.66 pounds, ensuring it can securely hold a wide range of display weights without sagging.
Is this monitor arm compatible with VESA mount standards?
Yes, it is VESA mount compatible, supporting patterns of 100 x 100 mm and 75 x 75 mm. This compatibility ensures it works with most modern monitors that adhere to these standard mounting interfaces.
What adjustment features does this monitor arm offer?
The arm provides tilt adjustment from -5° to 25°, pivot up to 20°, and pan capability of 180°. These features allow users to customize viewing angles for ergonomic comfort, reducing strain during long periods of use in office or gaming environments.
Can this arm be used for both wall and desk mounting?
Yes, the form factor supports both wall mountable and desk mountable installations. This flexibility lets users choose the best setup based on their space constraints and preferences, whether mounting directly to a wall or clamping to a desk edge.
What is included in the package with this monitor arm?
The package contains an arm extension, VHD pivot, wall mount, and mounting hardware. These components provide everything needed for a complete installation, ensuring you can set up the arm without requiring additional parts.
