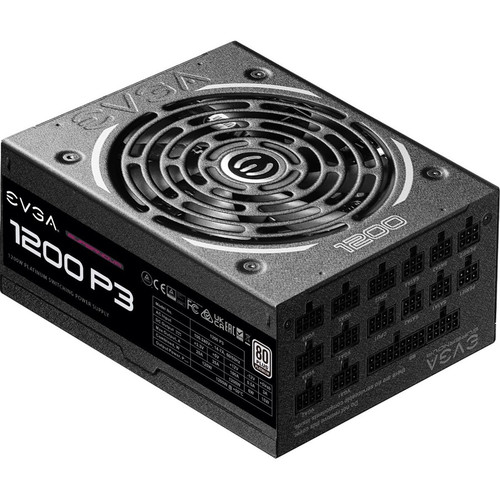

EVGA SuperNOVA 1200 Internal Power Supply Multi Rail Design With Universal AC Input Output Rails kW V 220-P3-1200-X1
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Specification Compliance: ATX12V/EPS12V
Efficiency: 94%
Number of Fans: 1
Modular: Yes
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V,5 V,12 V,-12 V
Output Voltage Detail: 3.3 V @ 25 A,5 V @ 25 A,12 V @ 100 A,-12 V @ 0.5 A,5 V @ 3 A
Output Current: 25 A,100 A,500 mA,3 A
Output Power: 1.20 kW
Form Factor: Internal
Height: 3.39" (86 mm)
Width: 5.91" (150 mm)
Depth: 7.09" (180 mm)
Weight (Approximate): 4.08 kg
Country of Origin: Taiwan
Environmentally Friendly: Yes
Energy Efficiency Certification: 80 Plus Platinum
Energy Efficiency Compliance: Energy-related Products Directive Lot 3 (ErP Lot 3)
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 10 Year
[custom-specifications]
| Specifications | |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 220P31200X1 |
| Manufacturer Website Address | http://www.evga.com |
| Brand Name | EVGA |
| Product Line | SuperNOVA |
| Product Model | 1200 P3 |
| Product Name | SuperNOVA 1200 P3 Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 94% |
| Number of Fans | 1 |
| Modular | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V,5 V,12 V,-12 V |
| Output Voltage Detail | 3.3 V @ 25 A,5 V @ 25 A,12 V @ 100 A,-12 V @ 0.5 A,5 V @ 3 A |
| Output Current | 25 A,100 A,500 mA,3 A |
| Output Power | 1.20 kW |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.39" (86 mm) |
| Width | 5.91" (150 mm) |
| Depth | 7.09" (180 mm) |
| Weight (Approximate) | 4.08 kg |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Platinum |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 10 Year |
[/custom-specifications]
