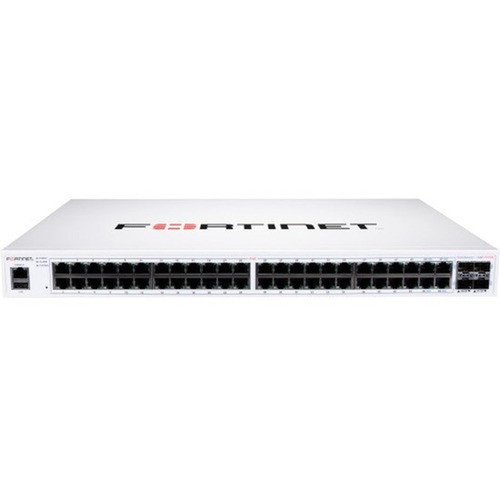

Fortinet FS-148F-FPOE FortiSwitch 48-Port Gigabit PoE+ Managed Switch - 4x SFP+ Uplinks - 740W PoE Budget - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 managed switch features 48 Gigabit Ethernet PoE+ ports for connecting end devices, complemented by four 10 Gigabit Ethernet SFP+ expansion slots for high-speed uplinks or fiber connectivity. The switch supports optical fiber and twisted pair media, ensuring compatibility with diverse cabling infrastructures across 10/100/1000Base-T and 10GBase-X networks.
With a store-and-forward forwarding mode, it ensures reliable data delivery while maintaining wire-speed performance. The 740W PoE budget provides ample power for PoE+ devices, backed by a single power supply with 895.70W power consumption. The 1U rack-mount form factor optimizes space in standard server racks, with dimensions of 1.73" height, 17.32" width, and 12.20" depth.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FS-148F-FPOE combines high port density with robust PoE capabilities in a space-efficient design, ideal for organizations scaling their network infrastructure. Its integration with FortiGate via FortiLink enables unified security policies and simplified management, reducing operational overhead while enhancing network visibility and control.
High-Density PoE Deployment
With 48 PoE+ ports and a 740W budget, this switch efficiently powers and connects numerous IP devices, supporting converged networks that carry voice, data, and wireless traffic simultaneously.
Scalable Uplink Connectivity
Four SFP+ slots provide 10 Gigabit Ethernet uplinks for high-bandwidth aggregation or fiber connections, ensuring the switch can handle increased traffic loads and future network expansions.
Flexible Management Options
Manage the switch through FortiLink for centralized control with FortiGate security appliances, or use the onboard GUI, API, or CLI for standalone configuration, offering adaptability to various IT environments.
Deployment / Use Cases
This switch is optimal for SD-Branch deployments where centralized management and security are critical, enabling consistent policy enforcement across distributed locations. Its compact 1U form factor and substantial PoE budget make it suitable for wiring closets, small to medium-sized business networks, and converged environments that require reliable power delivery to connected devices.
In educational, retail, or office settings, the FS-148F-FPOE supports voice-over-IP systems, wireless access points, and surveillance cameras, streamlining infrastructure by reducing the need for separate power supplies. The stackable capability—up to 300 switches per FortiGate, depending on the model—allows for scalable network growth without compromising management simplicity.
Converged Network Hub
Deploy as a central switch in environments integrating voice, data, and wireless services, leveraging PoE+ to power endpoints and SFP+ uplinks for backbone connectivity.
Branch Office Networking
Ideal for remote or branch offices requiring managed switching with PoE support, offering FortiLink integration for secure, centralized administration from a FortiGate appliance.
Physical Profile
The switch features a standard 1U rack-mountable design with dimensions of 1.73" height, 17.32" width, and 12.20" depth, fitting seamlessly into most server racks. Its weight of approximately 10.32 lb ensures easy handling during installation, while the robust construction supports reliable operation in various deployment scenarios. The environmentally friendly design complies with RoHS 2 standards, reflecting Fortinet's commitment to sustainable manufacturing.
- Width
- 17.32" (439.93 mm)
- Depth
- 12.20" (309.88 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 10.32 lb (4681.07 g)
Highlights
- 48 Gigabit Ethernet PoE+ ports for high-density device connectivity
- 4 SFP+ uplink slots supporting 10 Gigabit Ethernet for high-speed backbone links
- 740W PoE budget to power IP phones, access points, and other PoE devices
- Layer 2 managed switching with wire-speed performance and store-and-forward mode
- FortiLink integration for centralized security and management with FortiGate appliances
- 1U rack-mountable form factor for space-efficient deployment in standard server racks
- Supports standalone management via GUI, API, or command line interface
- Stackable up to 300 switches per FortiGate for scalable network expansion
- RoHS 2 compliant and environmentally friendly design
- Lifetime limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FS-148F-FPOE |
| Brand Name | Fortinet |
| Product Line | FortiSwitch |
| Product Series | 100 |
| Product Model | FS-148F-FPOE |
| Product Name | FortiSwitch FS-148F-FPOE Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 895.70 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.32" (439.93 mm) |
| Depth | 12.20" (309.88 mm) |
| Weight (Approximate) | 10.32 lb (4681.07 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many PoE+ ports does the Fortinet FS-148F-FPOE switch have?
The Fortinet FS-148F-FPOE switch provides 48 Gigabit Ethernet PoE+ ports, offering high-density connectivity for powering and connecting IP phones, wireless access points, and other PoE-enabled devices across your network.
What is the PoE budget of this switch, and what can it power?
This switch has a PoE budget of 740 watts, which is sufficient to support numerous PoE+ devices simultaneously, such as VoIP phones, security cameras, and Wi-Fi access points, making it ideal for converged network environments.
Does the FS-148F-FPOE support fiber optic connections?
Yes, the switch supports fiber optic connections through its four SFP+ expansion slots, which are compatible with 10 Gigabit Ethernet SFP+ modules for high-speed uplinks or fiber-based network segments.
Can this switch be managed without a FortiGate appliance?
Yes, the FS-148F-FPOE can be managed independently using its onboard graphical user interface (GUI), application programming interface (API), or command line interface (CLI), providing flexibility for deployments outside Fortinet ecosystems.
What rack size is required for installing this switch?
The switch has a 1U form factor, meaning it occupies one rack unit of space in a standard server rack, with dimensions of 1.73 inches in height, 17.32 inches in width, and 12.20 inches in depth for easy integration.
Is the Fortinet FS-148F-FPOE switch stackable?
Yes, this switch is stackable, supporting configurations of up to 300 switches per FortiGate appliance depending on the model, allowing for scalable network expansion with centralized management through FortiLink.
