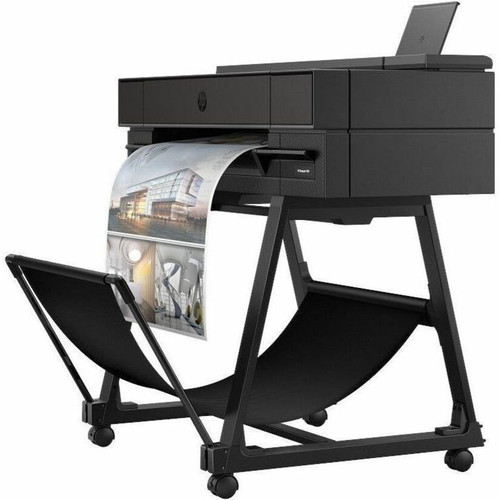

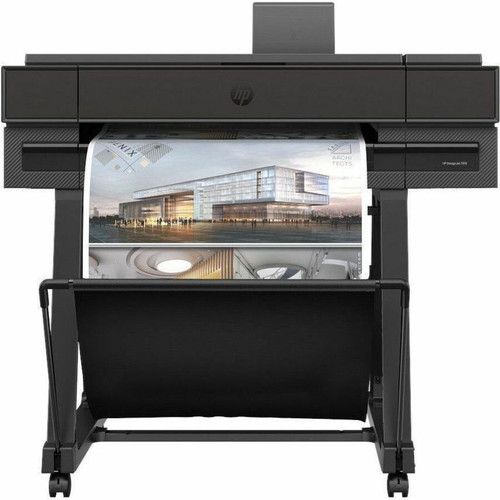

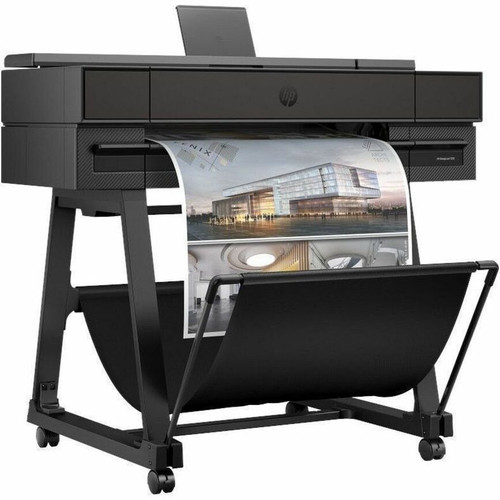

HP AM0X9H#B1K Designjet T870 24" Large Format Color Inkjet Printer - 21 Second D-Size Speed - 2400 x 1200 dpi
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the Designjet T870 utilizes a four-color pigment ink system (Cyan, Magenta, Yellow, matte Black) that produces archival-quality prints with excellent fade resistance. The 1 GB standard memory ensures smooth handling of complex vector files and large raster images, while the comprehensive language emulation supports JPEG, URF, TIFF, PDF, HP GL/2, HP RTL, and CALS/G4 formats for broad software compatibility.
The printer's media handling system includes a 50-sheet automatic sheet feeder, roll feed capability, media bin, and automatic horizontal cutter for efficient workflow management. Environmental certifications include Energy Star compliance, EcoLogo, EPEAT, and adherence to RoHS, WEEE, and REACH directives, reflecting HP's commitment to sustainable manufacturing.
Relevant factors for this section include Connectivity Technology, Number of Colors, Print Color Capability, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Designjet T870 combines industrial-grade performance with office-friendly features that streamline large format printing workflows. Dynamic security features help protect sensitive design documents, while the pigment-based ink system ensures prints maintain their integrity over time without fading.
High-Speed Production
Delivers 120 D-size prints per hour with consistent 21-second print times, enabling rapid turnaround for time-sensitive projects.
- 21-second D-size color prints
- 120 prints per hour throughput
- Automatic horizontal cutter
Professional Media Handling
Supports over 15 media types including technical papers, films, and photo papers with roll feed and automatic sheet feeding capabilities.
- Roll paper and cut sheet support
- 50-sheet automatic feeder
- Wide media compatibility
Enterprise Connectivity
Wired and wireless connectivity options including Ethernet, USB, Apple AirPrint, and Wi-Fi Direct support flexible deployment in any office environment.
- Ethernet and USB ports
- Apple AirPrint compatible
- Wi-Fi Direct enabled
Deployment / Use Cases
The Designjet T870 excels in professional environments where large format color printing is mission-critical. Architectural and engineering firms benefit from its ability to produce detailed construction documents, site plans, and elevation drawings with precise line work and accurate color representation.
Design studios and marketing agencies utilize the printer for high-quality presentation materials, concept visualizations, and client presentations. The combination of pigment inks and wide media compatibility allows for everything from durable technical drawings to vibrant exhibition prints. Educational institutions and government agencies appreciate the printer's security features and environmental certifications for compliant document production.
Relevant factors for this section include Connectivity Technology, Number of Colors, Print Color Capability, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The T870 features a substantial footprint designed for stable operation during high-volume printing. Measuring 43.30 inches wide, 36.80 inches high, and 27.10 inches deep, the printer requires appropriate space planning in office environments. At 85 pounds, the unit is substantial yet manageable for professional installation. The included printer stand provides stable support, while the spindle guide ensures proper roll paper alignment. Operating within 41°F to 104°F temperature ranges and 20% to 70% humidity levels, the printer performs reliably in standard office conditions.
- Width
- 24" (609.60 mm)
- Depth
- 27.10" (688.34 mm)
- Height
- 36.80" (934.72 mm)
- Weight
- 85 lb (38555.35 g)
What's in the Box
The Designjet T870 arrives ready for setup with all essential components for immediate operation.
Highlights
- 21-second D-size color prints at 2400 x 1200 dpi resolution
- 24-inch maximum print width for large format documents
- Four-color pigment ink system (C, M, Y, mK) for archival quality
- Wired and wireless connectivity with Apple AirPrint and Wi-Fi Direct
- Handles roll paper and cut sheets with automatic feeding
- 1 GB standard memory for complex file processing
- Energy Star certified with multiple environmental compliances
- Two-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | AM0X9H#B1K |
| Brand Name | HP |
| Product Line | Designjet |
| Product Model | T870 |
| Product Name | DesignJet T870 24-in Printer with 2YR Warranty |
| Product Type | Inkjet Large Format Printer |
| Technical Information | |
| Connectivity Technology | Wired,Wireless |
| Number of Colors | 4 |
| Print Color Capability | Color |
| Maximum Color Print Speed (sec) | 21 Second |
| Maximum Print Resolution (dpi) | 2400 x 1200 |
| Maximum Print Width | 24" (609.60 mm) |
| Wireless Print Technology | Apple AirPrint,Wi-Fi Direct |
| Mobile Device Printing | Yes |
| Compatible Ink Type | Pigment Ink |
| Memory | |
| Standard Memory | 1 GB |
| Interfaces/Ports | |
| USB | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Media Types & Handling | |
| Media Type | Plain Paper,Roll Paper,Cut Sheet,Bond Paper,Coated Paper,Heavyweight Paper,Bright White Inkjet Paper,Blueprint,Technical Paper,Tracing Paper,Clear Film,Matte Film,Satin Photo Paper,Glossy Paper,Semi-gloss Paper,Polypropylene,Photo Paper |
| Fonts & Emulation | |
| Language Emulation | JPEG,URF,TIFF,PDF,HP GL/2,HP RTL,CALS/G4 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Consumption | 35 W |
| Physical Characteristics | |
| Height | 36.80" (934.72 mm) |
| Width | 43.30" (1099.82 mm) |
| Depth | 27.10" (688.34 mm) |
| Weight (Approximate) | 85 lb (38555.35 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 41°F (5°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Humidity | 20% |
| Maximum Humidity | 70% |
| Miscellaneous | |
| Package Contents | DesignJet T870 Printer Printhead Introductory ink cartridges Printer Stand Spindle Guide Warranty Flyer power cord |
| Application/Usage | CAD,Rendering,Presentation |
| Platform Supported | PC |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Green Product (CGP),EcoLogo,Electronic Product Environmental Assessment Tool (EPEAT) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Thailand |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum print width of the HP Designjet T870?
The Designjet T870 supports a maximum print width of 24 inches (609.60 mm), making it suitable for standard D-size architectural and engineering drawings as well as other large format documents up to that width.
How fast does this printer produce D-size color prints?
The T870 delivers D-size color prints in just 21 seconds, achieving a throughput of approximately 120 D-size prints per hour. This speed makes it efficient for high-volume production environments while maintaining 2400 x 1200 dpi resolution quality.
What types of media does the Designjet T870 support?
This printer handles a wide range of media including plain paper, roll paper, cut sheets, bond paper, coated paper, heavyweight paper, bright white inkjet paper, blueprint paper, technical paper, tracing paper, clear film, matte film, satin photo paper, glossy paper, semi-gloss paper, polypropylene, and photo paper for versatile application support.
What connectivity options are available on this large format printer?
The T870 offers comprehensive connectivity with wired Ethernet and USB ports plus wireless capabilities including Apple AirPrint and Wi-Fi Direct. This allows flexible deployment in networked office environments and direct printing from mobile devices without requiring a computer intermediary.
What type of ink does the Designjet T870 use?
This printer utilizes a four-color pigment-based ink system consisting of Cyan, Magenta, Yellow, and matte Black cartridges. Pigment inks provide superior fade resistance and archival quality compared to dye-based inks, making prints more durable for technical documents and presentation materials.
What is included in the warranty coverage?
HP provides a two-year limited warranty for the Designjet T870, covering manufacturing defects and component failures under normal use. The warranty flyer included in the package details the specific terms and conditions, while the printer also features dynamic security capabilities for protected document handling.
