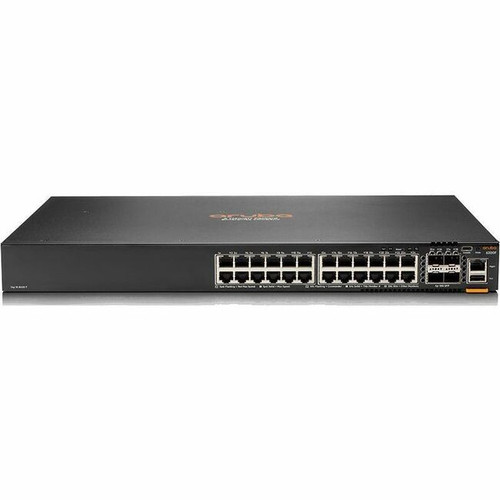

HPE JL724B#ABB CX 6200F 24G 4SFP+ Switch - 24 Port Gigabit Ethernet - 4 SFP+ Uplinks - Layer 3 Managed - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The switch features 24 Gigabit Ethernet ports (10/100/1000Base-T) for connecting end-user devices, servers, and other network equipment. Four dedicated SFP+ expansion slots support 10 Gigabit Ethernet uplinks (10GBase-X) using optical fiber or copper transceivers, enabling high-bandwidth aggregation and backbone connectivity.
Layer 3 routing capabilities allow for scalable network design, supporting IP routing protocols for efficient traffic management between subnets. The switch is manageable via a comprehensive suite of protocols, including IEEE 802.1Q for VLANs, IEEE 802.3ad for link aggregation, and IEEE 802.1x for network access control.
This section brings together practical product details such as Total Number of Network Ports, Uplink Port, Modular, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This switch combines high port density with future-ready uplink flexibility, making it an ideal foundation for growing networks. The integrated PoE support simplifies deployment of powered devices like IP phones, wireless access points, and security cameras without separate power supplies.
High-Speed Uplinks
Four SFP+ ports provide 10 GbE uplink capacity, ensuring sufficient bandwidth for aggregation and preventing bottlenecks in traffic-intensive environments.
Advanced Management
Full manageability allows for granular control over network configuration, security policies, and performance monitoring, supporting both basic setup and complex enterprise features.
Rack-Optimized Design
The compact 1U rack-mountable form factor (1.72" height) saves space in standard server racks, while its robust construction ensures stable operation in controlled environments.
Deployment / Use Cases
The HPE CX 6200F switch is well-suited for deployment as a core or distribution switch in small-to-medium business networks, educational campuses, or branch offices. Its Layer 3 functionality enables it to route traffic between VLANs, reducing reliance on external routers and simplifying network architecture.
In PoE-enabled deployments, it can power a mix of IP telephony systems, surveillance cameras, and wireless access points directly from the switch ports, reducing cabling complexity and installation costs. The high-speed uplinks make it effective for connecting to network storage, servers, or upstream switches in data center or high-performance computing scenarios.
Office Network Core
Serve as the central switching hub for an office, connecting desktops, printers, and servers while providing uplinks to the internet gateway and other network segments.
PoE Deployment Hub
Deploy as a power source for IP phones and wireless access points in a unified communications or campus Wi-Fi network, leveraging its PoE support for streamlined installations.
Physical Profile
The switch features a durable black steel chassis with dimensions of 1.72 inches in height, 17.42 inches in width, and 11.20 inches in depth, designed for standard 19-inch rack mounting. Its compact 1U form factor optimizes rack space utilization, while the built-in power supply and low 59-watt power consumption contribute to energy-efficient operation. The unit weighs approximately 8.31 pounds, making it manageable for installation and maintenance in rack environments.
- Width
- 17.42" (442.50 mm)
- Depth
- 11.20" (284.50 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 8.31 lb (3770 g)
Highlights
- 24 Gigabit Ethernet ports for high-density device connectivity
- 4 SFP+ uplink ports supporting 10 Gigabit Ethernet for high-speed aggregation
- Layer 3 routing capability for scalable network design and inter-VLAN routing
- Power over Ethernet (PoE) support to simplify deployment of powered devices
- Full manageability with comprehensive IEEE standards compliance
- Rack-mountable 1U form factor for space-efficient installation
- Supports both twisted pair and optical fiber media types
- Low power consumption (59 W) for energy-efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL724B#ABB |
| Brand Name | HPE |
| Product Series | CX 6200 |
| Product Model | CX6200F |
| Product Name | CX 6200F 24G 4SFP+ Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network Port,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3bt,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1x,IEEE 802.1ae,IEEE 802.3af,IEEE 802.1ak,IEEE 802.1AX,IEEE 802.1t,IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 59 W |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.70 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 11.20" (284.50 mm) |
| Weight (Approximate) | 8.31 lb (3770 g) |
User Manual
FAQ
How many ports does this HPE switch have, and what types are they?
The HPE CX 6200F switch has 24 Gigabit Ethernet ports (10/100/1000Base-T) for connecting standard network devices. Additionally, it includes 4 SFP+ expansion slots that support 10 Gigabit Ethernet uplinks using SFP+ transceivers for fiber or copper connections, providing high-speed backbone or aggregation links.
Does this switch support Power over Ethernet (PoE)?
Yes, this switch includes PoE support on its RJ-45 ports. It complies with IEEE 802.3af, 802.3at, and 802.3bt standards, allowing it to deliver power to compatible devices such as IP phones, wireless access points, and security cameras, simplifying installation by eliminating the need for separate power supplies.
What is the significance of Layer 3 support in this switch?
Layer 3 support means the switch can perform IP routing between different subnets or VLANs, enabling more scalable and efficient network designs. It allows for traffic management, routing protocols, and inter-VLAN communication without requiring an external router, which is beneficial for growing networks that need segmentation and controlled traffic flow.
Can this switch be rack-mounted, and what are its dimensions?
Yes, the switch is designed for rack mounting with a standard 19-inch rack form factor. Its dimensions are 1.72 inches in height (1U), 17.42 inches in width, and 11.20 inches in depth. This compact size makes it suitable for installation in server racks, data centers, or network closets where space optimization is important.
What management capabilities does this HPE switch offer?
This is a fully manageable switch, supporting a wide range of networking standards for advanced configuration and control. It includes features such as VLAN support (IEEE 802.1Q), link aggregation (IEEE 802.3ad), spanning tree protocols (IEEE 802.1D/w), and network access control (IEEE 802.1x), allowing administrators to optimize performance, security, and reliability.
What are the power requirements and consumption for this switch?
The switch operates on 120 V AC or 230 V AC input voltage with a built-in power supply. Its typical power consumption is 59 watts, which is relatively low for a switch of this capability, contributing to energy efficiency in deployments. This power design ensures stable operation while minimizing electrical costs and heat output.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
