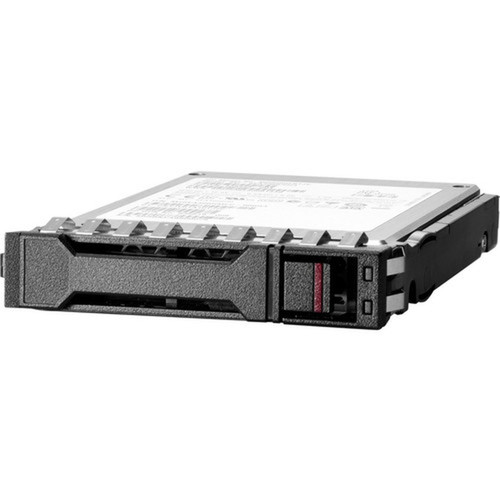

HPE P50230-B21 PM1735a 3.20TB SSD - 2.5" U. 3 NVMe PCIe 4.0 Mixed Use - 1.35M/320K IOPS
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SSD leverages PCI Express NVMe 4.0 technology to achieve exceptional data transfer rates, with random 4KB read performance reaching 1,350,000 IOPS and write performance at 320,000 IOPS. The U.3 interface provides backward compatibility with U.2 systems while enabling the full bandwidth of NVMe 4.0 for reduced latency and increased throughput.
Endurance is rated at 3 Drive Writes Per Day (DWPD) over a five-year warranty period, translating to 17,520 TB Written (TBW). This mixed-use endurance profile supports both read-intensive and write-intensive operations, ensuring consistent performance in varied application scenarios.
Relevant factors for this section include Storage Capacity, Random 4KB Read, Random 4KB Write, Endurance (DWPD). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PM1735a SSD combines high capacity with cutting-edge interface technology to address the storage demands of modern data centers. Its performance metrics place it among top-tier enterprise SSDs, capable of accelerating database transactions, virtualization workloads, and content delivery applications.
High-Speed Data Access
PCIe NVMe 4.0 support enables rapid data retrieval and storage, reducing application latency and improving overall system responsiveness.
- 1.35M IOPS read speed
- 320K IOPS write speed
- Low-latency NVMe protocol
Robust Endurance
With 3 DWPD and 17,520 TBW, this drive withstands intensive write cycles, making it reliable for mixed workloads over extended periods.
- 3 Drive Writes Per Day
- 17,520 TB Written endurance
- Five-year mixed-use rating
Enterprise Integration
Hot-pluggable design and included drive carrier simplify installation and maintenance in HPE server environments, supporting high availability.
- Hot-pluggable capability
- Drive carrier included
- HPE ProLiant/Synergy compatibility
Deployment / Use Cases
This SSD is optimized for deployment in HPE ProLiant rack, tower, and BladeSystem servers, as well as HPE Synergy platforms. Its mixed-use endurance and high IOPS performance make it ideal for environments requiring consistent storage performance under varying load conditions.
Typical use cases include enterprise database servers, virtualized infrastructure, storage servers, and content delivery networks. The 2.5" form factor and 15mm height allow flexible mounting in standard drive bays, while the U.3 interface ensures compatibility with existing NVMe-enabled backplanes.
Server Storage Expansion
Add high-performance storage to HPE servers for applications like SQL databases, VMware environments, or file servers, where fast data access is crucial.
Storage Server Acceleration
Use as primary storage in dedicated storage servers to enhance throughput for backup, archival, or media streaming workloads.
Physical Profile
The drive features a 2.5" small form factor with a height of 0.59 inches (15 mm), designed to fit standard server drive bays. Its internal drive type and included carrier facilitate secure installation, while the hot-pluggable design allows for replacement without powering down the system, supporting continuous operation in data center environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.59" (15 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 0.59" (15 mm)
Highlights
- 3.20 TB storage capacity for extensive data storage needs
- U.3 interface with PCI Express NVMe 4.0 support for high-speed data transfer
- Random 4KB read performance of 1,350,000 IOPS
- Random 4KB write performance of 320,000 IOPS
- Mixed-use endurance rated at 3 Drive Writes Per Day (DWPD)
- 2.5" form factor with 15mm height for compact server integration
- Hot-pluggable design with included drive carrier for easy maintenance
- Compatible with HPE ProLiant rack/tower/BladeSystem and Synergy servers
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P50230-B21 |
| Brand Name | HPE |
| Product Series | PM1735a |
| Product Name | 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 3.20 TB |
| Drive Performance | |
| Random 4KB Read | 1350000IOPS |
| Random 4KB Write | 320000IOPS |
| Endurance (DWPD) | 3 |
| Endurance (TBW) | 17520 TB |
| Endurance Type | Mixed Use |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Drive Interface | U.3 |
| Drive Interface Standard | PCI Express NVMe 4.0 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Drive Carrier | Yes |
| Hot Pluggable | Yes |
| Height | 0.59" (15 mm) |
| Miscellaneous | |
| Device Supported | Server,Storage Server |
| Compatibility | HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy |
FAQ
What is the storage capacity of this HPE SSD?
This HPE PM1735a Solid State Drive offers 3.20 TB of storage capacity. This provides ample space for operating systems, applications, databases, and other data-intensive workloads in server environments, supporting enterprise storage requirements without frequent expansion needs.
What interface does this SSD use, and what are its benefits?
The SSD uses a U.3 interface with PCI Express NVMe 4.0 standard. This combination delivers high bandwidth and low latency, enabling faster data transfers compared to older interfaces like SATA. U.3 offers backward compatibility with U.2 systems while leveraging NVMe 4.0 for improved throughput in compatible servers.
How does the mixed-use endurance rating affect performance?
The mixed-use endurance rating of 3 Drive Writes Per Day (DWPD) means the drive can handle both read-intensive and write-intensive workloads reliably over its lifespan. With a total endurance of 17,520 TB Written, it ensures consistent performance for applications like virtualization, databases, and storage servers without degradation under varied write patterns.
What are the read and write performance specifications?
This SSD achieves random 4KB read performance of 1,350,000 IOPS and random 4KB write performance of 320,000 IOPS. These high IOPS values reduce latency for small-block operations, accelerating tasks such as database queries, file accesses, and transactional processing in enterprise server deployments.
Is this SSD hot-pluggable, and what does that mean for installation?
Yes, this SSD is hot-pluggable. This feature allows you to install or replace the drive while the server is running, minimizing downtime in critical environments. Combined with the included drive carrier, it simplifies maintenance and upgrades in HPE server platforms without requiring system shutdowns.
Which HPE server models are compatible with this SSD?
This SSD is compatible with HPE ProLiant rack, tower, and BladeSystem servers, as well as HPE Synergy platforms. It is designed to integrate seamlessly with these systems, supporting high availability and performance in data center, enterprise, and storage server applications where HPE hardware is deployed.
