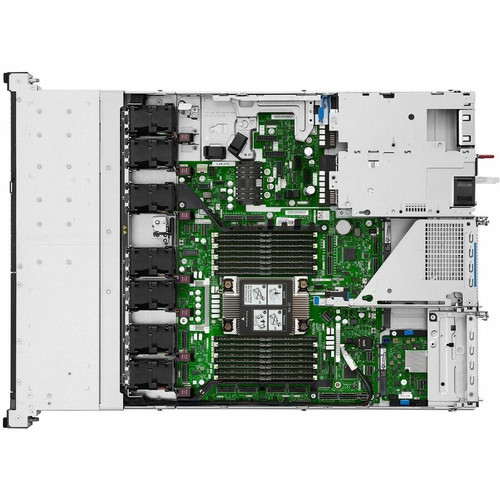

HPE P87776-005 ProLiant Compute DL320 Gen12 1U Rack Server – Intel Xeon 6 6515P 16-Core 2. 40 GHz – 64 GB DDR5 – 8 SFF Bays – 10GbE –
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the HPE ProLiant Compute DL320 Gen12 is the Intel Xeon 6 6515P processor, a 16-core, 32-thread CPU with a 2.40 GHz base frequency and 72 MB of L3 cache. The processor supports DDR5 memory at higher speeds, enabling efficient data movement and improved throughput for demanding workloads. The server comes with 64 GB of DDR5 ECC registered memory installed in one slot, with 15 additional slots available for expansion up to 4 TB. Memory protection features include ECC error checking and registered signal processing, ensuring data integrity in mission-critical applications.
Storage is handled by the HPE MR408i-o Gen11 controller, which supports SATA/600, 12 Gb/s SAS, and NVMe drives. The eight SFF hot-swap bays are positioned in the front for easy access, and the controller supports RAID 0, 1, 5, 6, 10, 50, and 60 for flexible data protection. Expansion is provided by two PCIe 5.0 x16 FHHL slots (one each on primary and secondary risers), allowing for additional networking, storage, or GPU cards. Networking is covered by two 10 Gigabit Ethernet RJ-45 ports, and remote management is built in via HPE iLO.
Key Product Advantages
The HPE ProLiant Compute DL320 Gen12 is designed to maximize compute and storage density in a compact 1U form factor. Its 16-core Intel Xeon 6 processor delivers exceptional performance for virtualized environments and data-intensive applications, while the DDR5 memory architecture ensures low latency and high bandwidth. The eight hot-swappable SFF drive bays support a mix of SAS, SATA, and NVMe drives, providing flexibility to optimize for speed or capacity. The MR408i-o Gen11 RAID controller with advanced RAID levels protects critical data without sacrificing performance.
Redundancy and reliability are built in with dual 1 kW hot-plug power supplies, ensuring continuous operation during a power supply failure. The two 10 Gigabit Ethernet ports provide high-speed network connectivity, and the built-in remote management simplifies server administration. Energy Star certification underscores its efficiency, and the 3-year on-site warranty with next business day response provides peace of mind for enterprise deployments.
Deployment / Use Cases
The HPE ProLiant Compute DL320 Gen12 is ideal for data centers and enterprise IT environments requiring a balance of compute power, storage capacity, and network throughput in a space-efficient 1U package. Its high core count and memory expandability make it well-suited for virtualization platforms such as VMware vSphere or Microsoft Hyper-V, where multiple virtual machines can be consolidated on a single host. The support for NVMe drives enables fast storage for databases and analytics workloads, while the RAID controller ensures data integrity.
Common use cases include running enterprise applications like Microsoft SQL Server, Oracle databases, or SAP HANA in a dense rack configuration. The server also excels as a compute node in high-performance computing (HPC) clusters or as a remote-office/branch-office (ROBO) server where space and power are constrained. With redundant power supplies and remote management, it can be deployed in edge locations requiring minimal on-site intervention.
Virtualization Host
Consolidate multiple workloads on a single 1U server with 16 cores and up to 4 TB of DDR5 memory, reducing hardware footprint and operational costs.
- VMware, Hyper-V, KVM support
- High memory capacity per VM
- RAID protection for VM storage
Data Analytics & Database Server
Leverage NVMe storage and high-speed 10GbE networking for rapid data processing and low-latency access to large datasets.
- SQL Server, Oracle, PostgreSQL
- 64 GB base memory, 4 TB max
- RAID 0/10 for performance or 5/6 for redundancy
Physical Profile
The HPE ProLiant Compute DL320 Gen12 is housed in a 1U rack-mountable chassis with dimensions of 1.69 inches (42.8 mm) in height, 17.11 inches (434.6 mm) in width, and 23.92 inches (607.5 mm) in depth. It weighs approximately 38.03 lb (17.25 kg). The compact form factor allows for high-density deployment in standard 19-inch racks, with all serviceable components—drive bays, power supplies, and expansion slots—accessible from the front or rear for easy maintenance. The server supports both 120 V AC and 230 V AC input voltages, making it compatible with diverse power infrastructures.
- Width
- 17.11" (434.60 mm)
- Depth
- 23.92" (607.50 mm)
- Height
- 1U
- Weight
- 38.03 lb (17250 g)
Highlights
- Intel Xeon 6 6515P 16-core processor with 2.40 GHz base frequency and 72 MB cache
- 64 GB DDR5 ECC registered memory, expandable to 4 TB in 16 slots
- Eight hot-swappable SFF 2.5" drive bays supporting SAS, SATA, and NVMe
- HPE MR408i-o Gen11 RAID controller with support for RAID 0, 1, 5, 6, 10, 50, 60
- Dual 1 kW hot-plug redundant power supplies for high availability
- Two 10 Gigabit Ethernet RJ-45 ports for high-speed networking
- Two PCIe 5.0 x16 FHHL expansion slots for additional connectivity
- Built-in remote management (HPE iLO) for efficient server administration
- Energy Star certified for energy efficiency
- 3-year warranty with parts, labor, and on-site next business day support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P87776-005 |
| Brand Name | HPE |
| Product Line | ProLiant Compute |
| Product Series | DL320 Gen12 |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon 6 |
| Processor Model | 6515P |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 2.40 GHz |
| Cache | 72 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 16 |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Type | Serial ATA/600,12Gb/s SAS,NVMe |
| Controller Model | MR408i-o Gen11 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | (1) PCIe 5.0 x16 FHHL (Primary Riser optional),(1) PCIe 5.0 x16 FHHL (Secondary Riser optional) |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1 kW |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Energy Star | Yes |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (42.80 mm) |
| Width | 17.11" (434.60 mm) |
| Depth | 23.92" (607.50 mm) |
| Weight (Approximate) | 38.03 lb (17250 g) |
| Warranty | |
| Additional Warranty Information | Server warranty includes 3-year parts, 3-year labor, 3-year on-site support with next business day response. |
User Manual
FAQ
What processor is inside the HPE ProLiant DL320 Gen12?
The server features an Intel Xeon 6 6515P processor with 16 cores and a base frequency of 2.40 GHz. It includes 72 MB of L3 cache and supports DDR5 memory, providing strong performance for enterprise workloads such as virtualization and database management.
How much memory does the DL320 Gen12 support and what type?
The server ships with 64 GB of DDR5 ECC registered memory installed in one of 16 slots. It supports a maximum of 4 TB using DDR5 SDRAM modules. The memory is ECC and registered (buffered) for improved reliability in critical applications.
What storage options are available on this server?
The DL320 Gen12 offers 8 hot-swappable SFF 2.5-inch drive bays, which support SAS, SATA, and NVMe drives. The integrated MR408i-o Gen11 controller provides RAID levels 0, 1, 5, 6, 10, 50, and 60 for flexible data protection and performance optimization.
Does the server come with redundant power supplies?
Yes, the server includes two hot-plug 1 kW power supplies, providing N+1 redundancy. If one power supply fails, the other continues to power the server without interruption. Both support 120 V AC and 230 V AC input voltages.
What networking capabilities does the DL320 Gen12 offer?
The server is equipped with two 10 Gigabit Ethernet RJ-45 ports, enabling high-speed network connectivity for data-intensive applications. It also supports remote management via HPE iLO, allowing administrators to monitor and control the server over the network.
What is the form factor and rack height of this server?
The HPE ProLiant Compute DL320 Gen12 is a 1U rack server, ideal for dense data center deployments. Its dimensions are 1.69 inches (42.8 mm) in height, 17.11 inches (434.6 mm) in width, and 23.92 inches (607.5 mm) in depth, with a weight of approximately 38.03 lb (17.25 kg).
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.40 GHz processor for everyday performance and multitasking.
