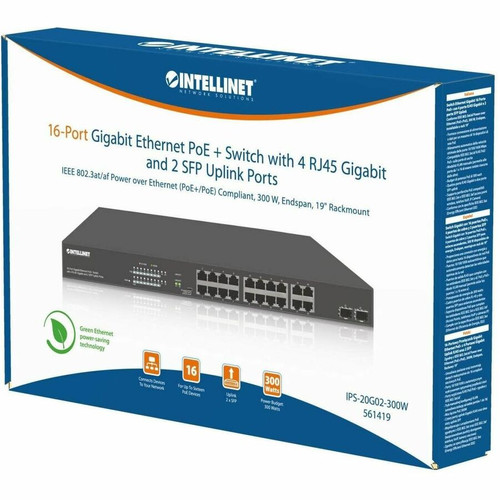

Intellinet 561419 16-Port Gigabit PoE+ Switch - 20 Ports - 300W PoE Budget - 2 SFP Uplinks - Layer 2 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates on Gigabit Ethernet technology, supporting network standards 1000Base-X, 10/100/1000Base-T, and 100Base-TX for backward compatibility with existing infrastructure. The 2 SFP (mini-GBIC) expansion slots enable high-speed uplinks via optical fiber, extending network reach and performance where copper cabling is impractical. PoE capabilities adhere to IEEE 802.3af and 802.3at standards, providing up to 30W per port for powering PoE+ devices.
Power consumption is rated at 300W, matching the PoE budget to ensure efficient operation without over-provisioning. The switch accepts input voltages of 120V AC or 230V AC, making it suitable for use in North American and international power grids. Networking protocols include IEEE 802.3az for energy-efficient Ethernet, 802.3x for flow control, and 802.3ab/u for Gigabit and Fast Ethernet compliance, ensuring reliable data transmission across mixed-device networks.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Intellinet 561419 combines high port density with substantial PoE power in a compact, manageable form factor. Its 300W PoE budget supports simultaneous power delivery to multiple devices, reducing the need for additional power injectors and simplifying cable management. The inclusion of SFP uplink ports provides future-proofing for fiber connectivity, enabling long-distance links and integration into larger network topologies.
Advanced Layer 2 Features
Includes IGMP snooping for efficient multicast traffic handling, port mirroring for network monitoring and troubleshooting, and spanning tree protocol to prevent loops and ensure network redundancy.
- IGMP snooping
- Port mirroring
- Spanning tree protocol
Dual Deployment Flexibility
Designed for both desktop use and rack mounting, with included 19" brackets and rubber feet for stable placement in various environments.
- Desktop placement
- Rack-mountable
- Included mounting hardware
Deployment / Use Cases
This switch is ideal for environments requiring a blend of high-speed data and PoE power across multiple devices. In retail settings, it can connect POS systems, security cameras, and wireless access points while powering them centrally. For office deployments, it supports VoIP phones, IP cameras, and access points, consolidating network and power infrastructure into a single unit.
Educational institutions benefit from its scalability, using the SFP uplinks to connect switches across buildings via fiber while powering classroom technology. Small business networks leverage its Layer 2 management features for improved traffic control and security. The switch's compact 1U height and standard rack width make it suitable for IT closet installations where space is limited but performance demands are high.
IP Surveillance Systems
Power and connect multiple IP cameras with PoE, using the high port count and PoE budget to support extensive security networks without extra power supplies.
Unified Communications
Deploy VoIP phones and wireless access points across an office, utilizing the switch's PoE+ capability and Gigabit throughput for clear voice and fast data.
Physical Profile
Constructed from durable metal, the switch measures 1.73 inches in height, 17.32 inches in width, and 9.06 inches in depth, fitting standard 19" rack spaces with the included mounting brackets. Its weight of 11.02 pounds ensures stability when rack-mounted, while the desktop form factor option with rubber feet provides non-slip placement on shelves or desks. The compact design optimizes space in network cabinets, and the robust build supports continuous operation in commercial environments.
- Width
- 17.32" (440 mm)
- Height
- 1.73" (44 mm)
- Weight
- 11.02 lb (5000 g)
- Length
- 9.06" (230 mm)
What's in the Box
The package includes all necessary components for immediate deployment and installation.
Highlights
- 20 total network ports with 16 PoE+ capable RJ45 ports and 2 SFP uplink slots
- 300W PoE budget supports power delivery to multiple devices like cameras and access points
- Layer 2 managed switch with IGMP snooping, port mirroring, and spanning tree protocol
- Gigabit Ethernet performance with support for 1000Base-X, 10/100/1000Base-T, and 100Base-TX
- Dual form factor: desktop placement or rack-mountable with included 19" brackets
- Metal construction for durability and stable operation in commercial environments
- Input voltage compatibility with 120V AC and 230V AC for global deployment
- 3-year limited warranty and RoHS compliance for reliable, environmentally friendly use
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 561419 |
| Brand Name | Intellinet |
| Product Model | 561419 |
| Product Name | 16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 20 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 20 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X,10/100/1000Base-T,100Base-TX |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 300 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Power Consumption | 300 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Length | 9.06" (230 mm) |
| Weight (Approximate) | 11.02 lb (5000 g) |
| Miscellaneous | |
| Package Contents | 16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports Power Cable User Guide Rubber Feet 19" Mounting Brackets |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many PoE ports does this switch have and what is the total PoE budget?
The Intellinet 561419 has 16 PoE+ capable RJ45 ports with a total PoE budget of 300W. This budget allows the switch to deliver up to 30W per port simultaneously to multiple devices, supporting IEEE 802.3af and 802.3at standards for powering equipment like IP cameras, wireless access points, and VoIP phones without additional power injectors.
What are the SFP uplink ports used for on this switch?
The two SFP (mini-GBIC) uplink ports enable fiber optic connections for high-speed network uplinks. They allow the switch to connect to other switches or network equipment over longer distances than copper cabling, support higher bandwidth needs, and integrate into fiber-based network backbones, providing flexibility for expanding or upgrading network infrastructure.
Is this switch managed or unmanaged, and what Layer 2 features does it include?
This is a Layer 2 managed switch, offering advanced networking features for better control and optimization. It includes IGMP snooping for efficient multicast traffic management, port mirroring for monitoring and troubleshooting network activity, and spanning tree protocol to prevent network loops and ensure redundancy, making it suitable for environments requiring reliable and secure network operations.
Can this switch be mounted in a standard rack?
Yes, the switch is rack-mountable with included 19" mounting brackets. Its dimensions of 1.73" H x 17.32" W x 9.06" L fit a standard 1U rack space, and the metal construction ensures durability in rack environments. It also includes rubber feet for desktop placement, offering dual deployment flexibility for various installation scenarios.
What input voltage does the switch support and what is its power consumption?
The switch supports input voltages of 120V AC and 230V AC, making it compatible with power grids in North America and many international regions. Its power consumption is rated at 300W, which aligns with the PoE budget to ensure efficient operation without overloading the power supply, suitable for continuous use in business settings.
What is included in the package and what warranty does the switch have?
The package includes the 16-port Gigabit PoE+ switch, a power cable, a user guide, rubber feet for desktop stability, and 19" mounting brackets for rack installation. The switch is backed by a 3-year limited warranty and is RoHS compliant, ensuring reliable performance and adherence to environmental standards for hazardous substances.
