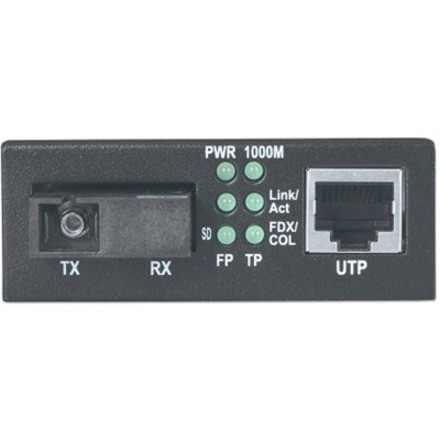

Intellinet 545075 Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter - 10/100/1000Base-Tx to 1000Base-Lx - SC - 20km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with 1310 nm and 1550 nm wavelengths, supporting standard single-mode fiber optic cables with core/cladding specifications of 8.3/125 µm, 8.7/125 µm, 8/125 µm, or 10/125 µm. The 1000Base-Lx interface uses SC duplex connectors for reliable optical connections, while the 10/100/1000Base-Tx port auto-negotiates speed and duplex settings with connected Ethernet devices.
Power is supplied via an external adapter, with typical consumption of 5 watts. The converter supports both Gigabit Ethernet and Fast Ethernet technologies, ensuring compatibility with diverse network equipment. Internal circuitry manages signal conversion, clock recovery, and error correction to maintain data integrity across the copper-to-fiber transition.
Key Product Advantages
This media converter eliminates distance limitations of copper cabling by extending Gigabit Ethernet up to 20 kilometers over single-mode fiber. WDM technology allows bidirectional communication on one fiber strand, reducing cabling costs and simplifying deployments. The device maintains full wire-speed performance without compromising data integrity or introducing significant latency.
Extended Reach
Overcomes the 100-meter limit of Cat5e/6 copper by supporting 20 km fiber runs, ideal for connecting buildings or remote network segments.
- 20 km maximum distance
- Single-mode fiber compatibility
- Low signal attenuation
Installation Flexibility
Rack-mountable, desktop, and wall-mountable form factors adapt to various environments from data centers to office closets.
- Three mounting options
- Compact 2.72" width
- Lightweight 6.35 oz design
Deployment / Use Cases
Deploy this media converter to connect copper-based network equipment to fiber optic backbones in campus networks, industrial facilities, or surveillance systems. It is particularly effective for extending network reach between buildings where direct copper runs are impractical or exceed distance limitations.
Common applications include linking switches or routers in separate buildings, connecting security cameras over long distances, integrating fiber backbones into existing copper networks, and providing fiber uplinks for network segmentation. The converter also serves as a cost-effective solution for migrating network segments to fiber without replacing all endpoint equipment.
Building-to-Building Connectivity
Connect network equipment across campus environments or between separate facilities using existing single-mode fiber infrastructure.
Network Modernization
Upgrade copper segments to fiber while preserving investments in existing Ethernet switches, routers, and endpoint devices.
Physical Profile
The converter features a compact metal enclosure measuring 0.98" (25 mm) in height and 2.72" (69 mm) in width, with a weight of approximately 6.35 oz (180 g). This slim profile allows dense installations in rack shelves or tight spaces. The housing includes mounting points for standard rack brackets, desktop placement, or wall mounting with appropriate hardware.
- Width
- 2.72" (69 mm)
- Height
- 0.98" (25 mm)
- Weight
- 6.35 oz (180 g)
- Length
- 1310 nm,1550 nm
Highlights
- Converts 10/100/1000Base-Tx to 1000Base-Lx (SC) for single-mode fiber
- Supports 20 km maximum distance for long-range network extensions
- Uses WDM technology for bidirectional data on a single fiber strand
- Compatible with 1310 nm and 1550 nm wavelengths
- Accepts 8.3/125 µm to 10/125 µm single-mode fiber cores
- Provides one RJ-45 port and one SC duplex port
- Consumes only 5 watts of power via external adapter
- Rack-mountable, desktop, and wall-mountable form factors
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 545075 |
| Brand Name | Intellinet |
| Product Model | 545075 |
| Product Name | Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 8.3/125 µm,8.7/125 µm,8/125 µm,10/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,Fast Ethernet |
| Network Technology | 1000Base-T,1000Base-LX |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 5 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Desktop,Wall Mountable |
| Height | 0.98" (25 mm) |
| Width | 2.72" (69 mm) |
| Weight (Approximate) | 6.35 oz (180 g) |
FAQ
What does this media converter actually convert?
This converter transforms electrical Ethernet signals from copper twisted-pair cabling (10/100/1000Base-Tx) to optical signals for single-mode fiber (1000Base-Lx). It enables network traffic to travel between copper-based devices and fiber optic infrastructure, extending reach beyond copper distance limitations.
What is the maximum distance supported?
The converter supports fiber runs up to 20 kilometers (12.43 miles) when using single-mode fiber optic cable. This distance far exceeds the 100-meter limit of standard Cat5e/6 copper Ethernet, making it suitable for connecting network segments across buildings or campuses.
What type of fiber connectors does it use?
The fiber interface uses one SC duplex port, which accommodates standard SC connectors for single-mode fiber. The duplex configuration provides separate transmit and receive paths, essential for full-duplex Gigabit Ethernet communication over fiber.
What wavelengths does this converter support?
It operates with 1310 nm and 1550 nm wavelengths, which are standard for single-mode fiber optic systems. These wavelengths support WDM (Wavelength Division Multiplexing) technology, allowing bidirectional data transmission over a single fiber strand by using different wavelengths for transmit and receive directions.
How is this converter powered?
Power is supplied through an external power adapter (included with purchase), which connects to the converter's DC input. The device consumes approximately 5 watts during normal operation, making it energy-efficient for continuous use in network environments.
What mounting options are available?
The converter supports three mounting configurations: rack-mountable using standard rack brackets, desktop placement, or wall mounting with appropriate hardware. Its compact dimensions (0.98" H × 2.72" W) allow flexible installation in data centers, wiring closets, or equipment rooms.
