IOGEAR GCS1902 2-Port DisplayPort KVMP Switch with USB 3.0 Hub - 4K UHD 3840 x 2160 - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVMP switch operates as a hardware-based solution that requires no software installation for basic functionality. The system supports independent switching of video, USB peripherals, and 2.1 channel audio, allowing users to mix and match components between connected computers. Mouse emulation technology ensures compatibility with most mouse drivers and multifunction mice, while the bypass feature maintains proper mouse functionality during system boot sequences.

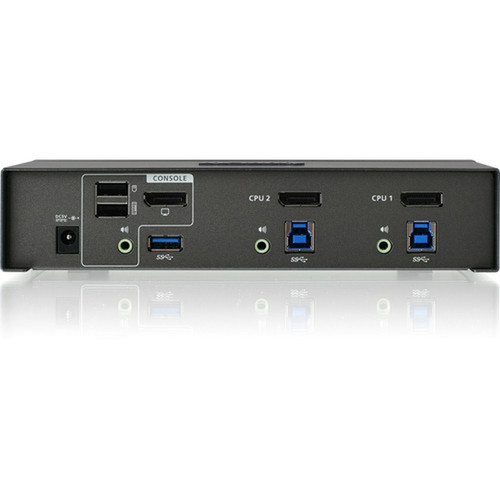

The device incorporates three DisplayPort connections and six USB ports total, with the USB 3.0 hub delivering 5Gbps transfer speeds for external storage and peripherals. Video processing maintains signal integrity up to 4K resolution, and the DP++ capability enables connection to HDMI and DVI displays using appropriate adapters. Audio support extends to 7.1 channel HD audio through the DisplayPort interface.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GCS1902 combines KVM switching with USB 3.0 hub functionality in a compact desktop form factor. Its multi-platform compatibility extends across Windows 7, 8.1, 10, macOS, and Linux systems without requiring proprietary drivers for basic operation. The independent switching capability provides flexibility in managing different components between connected computers.
Enhanced Productivity
Control two complete computer systems from a single console, reducing desktop clutter and streamlining workflow transitions between machines.
- Eliminates duplicate peripherals
- Quick switching between systems
- Maintains separate audio streams
Superior Video Quality
Delivers 4K UHD resolution at 3840x2160 with 30Hz refresh rate, ensuring crisp visual output for professional applications and multimedia content.
- 4K resolution support
- DisplayPort 1.1 compliant
- HDCP compliant for protected content
Deployment / Use Cases
The IOGEAR GCS1902 excels in environments where users need simultaneous access to multiple computer systems. Financial traders can monitor markets across different platforms while maintaining a unified workstation. Software developers benefit from testing applications on separate operating systems without physically moving between machines.
In corporate settings, IT administrators can manage server rooms or network operations centers more efficiently by controlling multiple systems from a central location. Creative professionals working with both Windows and macOS systems can switch between editing stations seamlessly. The TAA compliance makes this switch suitable for government contracts and educational institutions requiring specific procurement standards.
Financial Trading Desks
Monitor multiple trading platforms simultaneously while executing trades across different systems from a single keyboard and mouse setup.
IT Administration Stations
Manage server consoles, network monitoring systems, and administrative workstations from a centralized control point in data centers.
Physical Profile

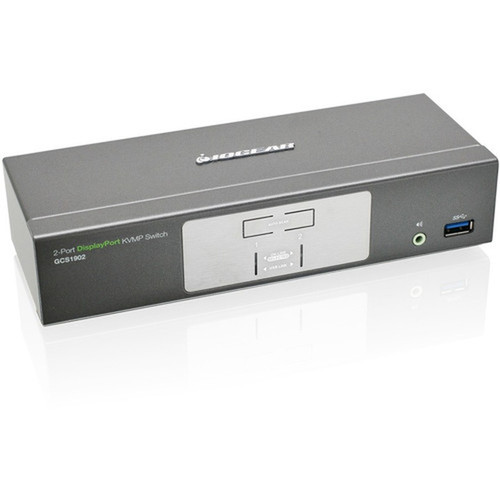

Designed for desktop placement, the GCS1902 measures 7.88 inches wide by 2.94 inches high by 1.69 inches deep (200.03 x 74.68 x 42.93 mm). The compact footprint occupies minimal desk space while providing front-panel pushbuttons for computer selection. Weighing approximately 1.45 pounds (657.71 grams), the unit maintains stability during operation. The desktop form factor requires no rack mounting hardware and includes a power adapter for standard electrical outlets.
- Width
- 7.88" (200.03 mm)
- Depth
- 1.69" (42.93 mm)
- Height
- 2.94" (74.68 mm)
- Weight
- 1.45 lb (657.71 g)

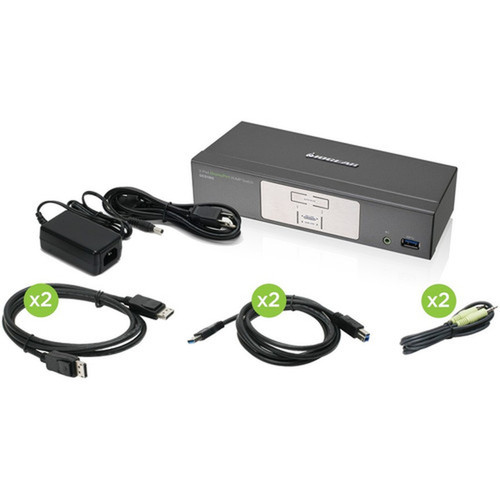

What's in the Box
The package includes all necessary components for immediate deployment of the KVMP switch system.
Highlights
- Control 2 computers from a single keyboard, mouse, and DisplayPort monitor
- 4K UHD video support at 3840x2160 resolution with 30Hz refresh rate
- DisplayPort 1.1 compliant with HDCP support for protected content
- Integrated 2-port USB 3.0 hub with SuperSpeed 5Gbps transfer rates
- DP++ technology supports HDMI and DVI display connections
- Multiple switching methods: front panel buttons, hotkeys, and mouse
- Independent switching of KVM, USB, and 2.1 channel audio
- 7.1 HD audio support through DisplayPort interface
- Mouse emulation/ bypass feature for compatibility with most mice
- Multi-platform support: Windows 7/8.1/10, macOS, and Linux
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1902 |
| Brand Name | IOGEAR |
| Product Model | GCS1902 |
| Product Name | 2-Port DisplayPort KVMP Switch with USB 3.0 Hub (TAA Compliant) |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 6 |
| Number of DisplayPorts | 3 |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 2.94" (74.68 mm) |
| Width | 7.88" (200.03 mm) |
| Depth | 1.69" (42.93 mm) |
| Weight (Approximate) | 1.45 lb (657.71 g) |
| Miscellaneous | |
| Package Contents | 2-Port DisplayPort KVMP Switch with USB 3.0 Hub (TAA Compliant) 2 x DisplayPort Cables 2 x USB 3.0 Cables 2 x Audio Cables 1 x Power Adapter 1 x Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can I connect to this KVMP switch?
The IOGEAR GCS1902 supports two computers simultaneously. You can connect two complete systems and control both from a single keyboard, mouse, and DisplayPort monitor setup. The switch manages video, USB peripherals, and audio independently for each connected computer.
What video resolution does this switch support?
This KVMP switch supports up to 4K UHD resolution at 3840x2160 with a 30Hz refresh rate. It maintains DisplayPort 1.1 compliance and includes HDCP support for protected content playback. The DP++ technology also enables connection to HDMI and DVI displays using appropriate adapters.
How do I switch between connected computers?
You can switch between computers using three methods: front panel pushbuttons on the switch itself, keyboard hotkeys (typically Scroll Lock + number keys), or mouse movements. The system supports independent switching of KVM functions, USB peripherals, and audio channels for flexible configuration.
What USB capabilities does this switch provide?
The GCS1902 includes six USB ports total, with an integrated 2-port USB 3.0 hub that delivers SuperSpeed 5Gbps transfer rates. This allows connection of external storage, printers, scanners, and other peripherals. USB switching operates independently from video and audio switching functions.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates this product meets U.S. government procurement requirements for products manufactured in designated countries. The GCS1902 is manufactured in Taiwan and complies with TAA standards, making it suitable for government contracts, educational institutions, and organizations with specific procurement regulations.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
