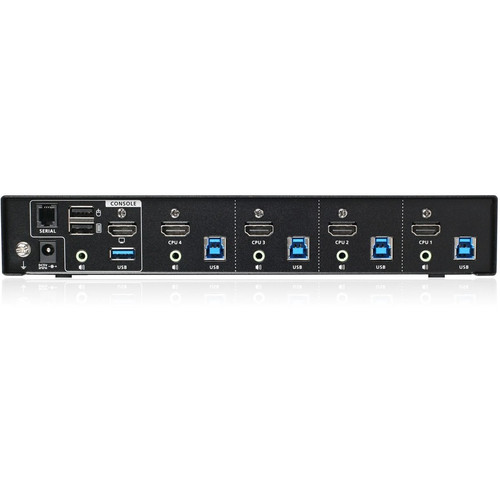

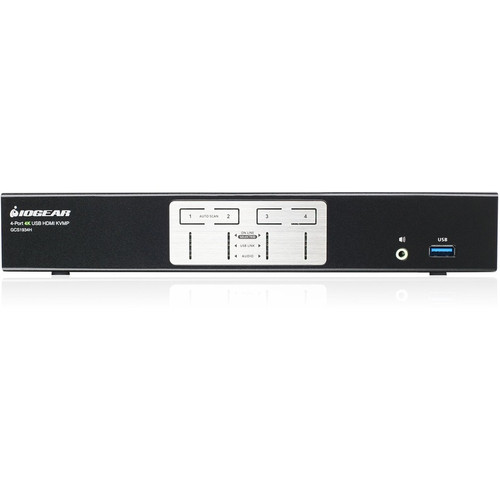

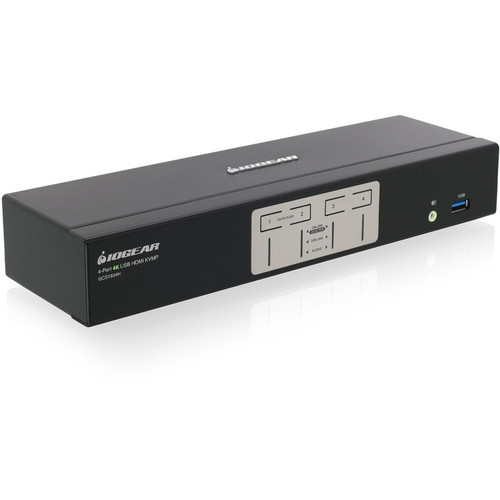

IOGEAR GCS1934H 4-Port 4K KVMP Switch with HDMI - USB 3.0 Hub - Audio - TAA - 4096 x 2160 - 7 USB Ports - 5 HDMI Ports
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVMP switch delivers superior video performance with Cinema 4K resolution support at 4096x2160 pixels and 60Hz refresh rate. The HDMI 2.0 implementation ensures compatibility with HDCP 2.2 content protection and HDR video sources for enhanced visual quality.
Connectivity features include seven USB ports total, with two dedicated USB 3.1 Gen1 hub ports offering SuperSpeed 5Gbps transfer rates for external storage and peripherals. Five HDMI ports handle video input and output, while independent switching capabilities allow separate control of KVM, USB, and audio functions for flexible system management.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
Multi-Platform Compatibility
Supports Windows 7, Windows 8.1, Windows 10, macOS, and Linux operating systems, making it suitable for heterogeneous IT environments with mixed computer platforms.
- No additional drivers required for basic functionality
- Mouse emulation supports most mouse drivers
- Works with multifunction mice and keyboards
Flexible Control Options
Multiple switching methods provide convenient computer selection to match different workflow preferences and accessibility needs.
- Front panel pushbuttons for direct physical control
- Hotkey combinations for keyboard-based switching
- Mouse-based switching via scroll wheel
- RS-232 serial commands for automation integration
Audio Management Features
Advanced audio capabilities go beyond basic sound switching to provide professional audio mixing functionality.
- HD audio support for clear sound quality
- Audio mixer modes combine up to two audio sources
- Independent audio switching separate from video
Deployment / Use Cases
The GCS1934H KVMP switch excels in environments where space optimization and efficient multi-system control are priorities. IT administrators can manage multiple servers or workstations from a single console, reducing hardware footprint while maintaining full control over each system.
Creative professionals working with 4K video editing, graphic design, or 3D rendering can switch between dedicated rendering machines and editing workstations without changing peripherals. Financial trading desks benefit from rapid system switching between different trading platforms and monitoring systems.
Server Room Management
Ideal for data centers and server rooms where administrators need to access multiple servers for maintenance, updates, and troubleshooting from a single control station.
Multi-Computer Workstations
Perfect for developers, engineers, and power users who work across multiple systems for different tasks, projects, or operating system requirements.
Physical Profile
The switch features a compact desktop form factor measuring 10.25" wide × 2.94" deep × 1.69" high (260.35 × 74.68 × 42.93 mm) with an approximate weight of 1.90 lb (861.83 g). The slim profile allows placement under monitors or in tight spaces, while front-panel controls provide easy access to switching functions without disrupting workflow.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.69" (42.93 mm), 10.25" (260.35 mm), 2.94" (74.68 mm), 1.90 lb (861.83 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 10.25" (260.35 mm)
- Depth
- 2.94" (74.68 mm)
- Height
- 1.69" (42.93 mm)
- Weight
- 1.90 lb (861.83 g)
What's in the Box
This complete package includes all necessary components for immediate deployment with four computers.
Highlights
- Control 4 computers with one keyboard, mouse, and 4K HDMI monitor
- Cinema 4K video quality at 4096x2160 resolution with 60Hz refresh
- HDCP 2.2 compliant with HDR support for premium content
- 2-port USB 3.1 Gen1 hub with 5Gbps SuperSpeed transfer rates
- Multiple switching methods: front panel, hotkeys, mouse, or RS-232
- Independent switching of KVM, USB, and audio functions
- Mouse emulation supports most drivers and multifunction mice
- HD audio with mixer modes combining two audio sources
- Multi-platform support for Windows, macOS, and Linux
- TAA compliant for government and educational procurement
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1934H |
| Brand Name | IOGEAR |
| Product Name | 4-Port 4K KVMP Switch with HDMI Connection, USB 3.0 Hub, and Audio (TAA) |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of USB Ports | 7 |
| Number of HDMI Ports | 5 |
| Physical Characteristics | |
| Height | 1.69" (42.93 mm) |
| Width | 10.25" (260.35 mm) |
| Depth | 2.94" (74.68 mm) |
| Weight (Approximate) | 1.90 lb (861.83 g) |
| Miscellaneous | |
| Package Contents | 4-Port 4K KVMP Switch with HDMI Connection, USB 3.0 Hub, and Audio (TAA) 4 x HDMI Cables (6ft.) 4 x USB 3.0 Cables (6ft.) 4 x Audio Cable Set (6ft.) 1 x Power Adapter 1 x QSG |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can I control with this KVM switch?
The IOGEAR GCS1934H supports four computers simultaneously. A single user can manage all four systems using one keyboard, one mouse, and one 4K HDMI monitor, making it ideal for server management, multi-system workstations, or control room applications where space efficiency is important.
What video resolution does this switch support?
This switch supports Cinema 4K resolution at 4096 x 2160 pixels with a 60Hz refresh rate. It maintains HDCP 2.2 compliance for protected content and includes HDR support for enhanced video quality, making it suitable for professional video editing, graphic design, and high-resolution monitoring applications.
What types of USB ports are available on this device?
The switch features seven USB ports total, including two dedicated USB 3.1 Gen1 hub ports that provide SuperSpeed 5Gbps transfer rates for external storage and peripherals. The remaining USB ports handle keyboard and mouse connections for the connected computers, with independent switching capability for flexible peripheral management.
How do I switch between connected computers?
Multiple switching methods are available: front panel pushbuttons for direct physical control, keyboard hotkey combinations for hands-free operation, mouse-based switching using the scroll wheel, or RS-232 serial commands for automation integration. This flexibility allows users to choose the method that best fits their workflow and accessibility needs.
What audio capabilities does this KVMP switch offer?
The switch supports HD audio transmission with advanced audio mixer modes that can combine up to two audio sources into a single output. Audio switching operates independently from video and USB functions, allowing users to mix computer audio with other sources or maintain separate audio control for different applications.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
