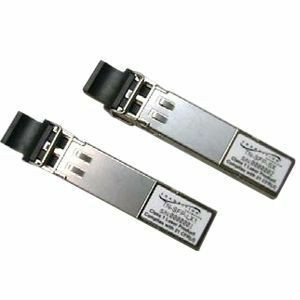

Lantronix TN-SFP-LX8-Cxxx SFP (mini-GBIC) Module - For Switch, Optical Network, Router, xDSL Application, Data Networking - 1 x LC - - (TN-SFP-LX8-C45)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Application/Usage: Switch,Optical Network,Router,xDSL Application,Data Networking
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-LX Network
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: Gigabit Ethernet
Network Technology: Fiber Channel,1000Base-CWDM,1000Base-LX
Maximum Distance Supported: 80 km (49.71 Mile)
Maximum Data Transfer Rate: 1.22 Gbit/s
Form Factor: Hot-pluggable
Height: 0.33" (8.38 mm)
Width: 0.52" (13.21 mm)
Depth: 2.18" (55.37 mm)
Compatibility:
MSA Compliant
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: Lifetime
- With Fiber Channel technology, get fast data transfer rate over optical fiber cable
- Up to 10x faster than standard Ethernet connection and provides high-performance
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
[custom-specifications]
| Specifications | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | TN-SFP-LX8-C45 |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Series | TN-SFP-LX8-Cxxx |
| Product Name | TN-SFP-LX8-Cxxx SFP (mini-GBIC) Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Switch,Optical Network,Router,xDSL Application,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | Fiber Channel,1000Base-CWDM,1000Base-LX |
| Maximum Distance Supported | 80 km (49.71 Mile) |
| Maximum Data Transfer Rate | 1.22 Gbit/s |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 0.33" (8.38 mm) |
| Width | 0.52" (13.21 mm) |
| Depth | 2.18" (55.37 mm) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
