LG 75UH5N-M 75" UHD Ultra Slim Digital Signage Display with webOS 6.0 - 3840 x 2160500 cd/m² - 24/7 Operation - ADS Panel
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The LG 75UH5N-M is a 75-inch UHD Ultra Slim Digital Signage Display engineered for demanding commercial environments. Built with Advanced Super Dimension Switch (ADS) panel technology, it delivers 3840x2160 resolution and 500 cd/m² brightness for vivid, high-impact visuals in retail, corporate, hospitality, and public spaces.
This display supports 24/7 continuous operation with robust thermal management, ensuring reliable performance in extended-use scenarios. The ultra-slim 1.16-inch profile and narrow 0.51-inch bezel enable seamless multi-screen installations, while webOS 6.0 provides an intuitive platform for content management and remote control.
Relevant factors for this section include Bezel Width, Ingress Protection (IP) Rating, Panel Technology, Viewable Screen Size. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
The display features a 75-inch ADS panel with 8 ms response time, 1200:1 native contrast ratio, and 95% BT.709 color gamut for accurate color reproduction. Edge LED backlighting ensures uniform brightness and energy efficiency, with a maximum LED life of 5.7 years.

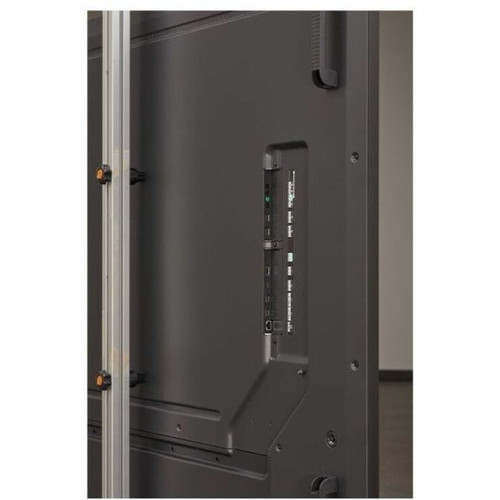

Connectivity includes three HDMI inputs, two USB 2.0 ports, RS-232C input/output, audio line out, and built-in wireless LAN and Bluetooth for flexible media streaming and control. The IP5X ingress protection rating safeguards against dust ingress, enhancing durability in varied environments.
Relevant factors for this section include Bezel Width, Ingress Protection (IP) Rating, Panel Technology, Viewable Screen Size. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This signage display combines high-resolution visuals, commercial-grade durability, and advanced control features to meet the needs of modern digital signage deployments.
Commercial Reliability
Designed for 24/7 operation with robust thermal management and IP5X dust protection, ensuring consistent performance in high-traffic environments.
- 24-hour continuous use
- Wide operating temperature range (32°F to 104°F)
- Energy Star and EPEAT certified
Seamless Installation
Ultra-slim design and VESA 600x400 mounting support flexible wall, stand, or video wall configurations with minimal bezel intrusion.
- 0.51-inch narrow bezel
- Lightweight for easier handling
- Includes mounting hardware
Advanced Control & Management
webOS 6.0 enables remote management, scheduled content playback, and integration with existing signage networks via RS-232C and network controls.
- Multi-language OSD support
- Wireless and Bluetooth connectivity
- Compatible with third-party control systems
Deployment / Use Cases
The LG 75UH5N-M is ideal for environments requiring large-format, high-visibility displays with reliable performance and easy management.
In retail settings, it can showcase promotional content, product demos, or interactive catalogs with crisp UHD detail. Corporate lobbies and conference rooms benefit from its sleek design for branding, wayfinding, or presentation displays. Hospitality venues such as hotels and restaurants use it for digital menus, event schedules, or entertainment streaming.
Relevant factors for this section include Bezel Width, Ingress Protection (IP) Rating, Panel Technology, Viewable Screen Size. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Video Wall Applications
The narrow bezel and precise color consistency make this display suitable for multi-screen video walls in control rooms, museums, or trade show booths.
Public Information Displays
With 24/7 operation and high brightness, it serves effectively in transportation hubs, healthcare facilities, or educational institutions for real-time information and announcements.
Localization and Operating System
The LG 75UH5N-M runs webOS 6.0, a purpose-built operating system for digital signage that simplifies content management, scheduling, and remote control. This platform supports seamless integration with existing signage networks and enables centralized administration through web-based tools or mobile apps, reducing the need for dedicated media players in many deployments.
For global usability, the on-screen display (OSD) menu supports 20 languages: Arabic, Chinese, Czech, Danish, Dutch, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Brazilian Portuguese, Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, and Turkish. This multilingual support ensures that installers and administrators can configure the display in their preferred language, streamlining setup and ongoing maintenance across diverse regions.
The combination of webOS 6.0 and extensive language options makes this display suitable for international retail chains, corporate offices with multilingual staff, hospitality venues serving global guests, and public institutions where accessibility and ease of management are priorities. The operating system’s app ecosystem and compatibility with third-party control systems further enhance its flexibility for custom signage solutions.
webOS 6.0 Platform
Provides an intuitive interface for content playback, scheduling, and remote management, with built-in Wi-Fi and Bluetooth for wireless connectivity and updates.
- App support for signage applications
- Centralized network management capabilities
- Compatible with LG signage management tools
Multilingual OSD Support
Enables configuration and troubleshooting in 20 languages, reducing barriers for installation teams and IT staff in multinational environments.
- Includes major European and Asian languages
- Simplifies training and support across regions
- Supports accessibility for diverse user bases
Physical Profile
The display measures 66.12 inches wide, 37.74 inches high, and 1.16 inches deep, with a weight of 78.70 pounds. The black bezel and VESA 600x400 mounting pattern support standard commercial mounts, while the slim profile allows for flush wall installations or compact video wall arrays.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 37.74" (958.60 mm), 66.12" (1679.45 mm), 1.16" (29.46 mm), 78.70 lb (35697.72 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 66.12" (1679.45 mm)
- Depth
- 1.16" (29.46 mm)
- Height
- 37.74" (958.60 mm)
- Weight
- 78.70 lb (35697.72 g)
What's in the Box
The package includes all essential components for immediate setup and operation.
Highlights
- 75-inch UHD display with 3840x2160 resolution for sharp, detailed visuals
- Advanced Super Dimension Switch (ADS) panel technology for enhanced viewing angles
- 500 cd/m² brightness ensures visibility in well-lit environments
- 24/7 continuous operation capability for non-stop signage applications
- Ultra-slim 1.16-inch depth and 0.51-inch narrow bezel for seamless multi-screen setups
- webOS 6.0 operating system with built-in Wi-Fi and Bluetooth for easy content management
- Three HDMI inputs, two USB ports, and RS-232C control for flexible connectivity
- VESA 600x400 mounting compatible with standard commercial mounts
- IP5X dust protection rating for increased durability in varied environments
- Energy Star and EPEAT certified for energy efficiency and environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | LG Electronics |
| Manufacturer Part Number | 75UH5N-M |
| Brand Name | LG |
| Product Model | 75UH5N-M |
| Product Name | 75" UHD Ultra Slim Signage with webOS 6.0 and Advanced Security |
| Product Type | Digital Signage Display |
| Technical Information | |
| Bezel Width | 0.51" (12.90 mm) |
| Ingress Protection (IP) Rating | IP5X |
| Panel Technology | Advanced Super Dimension Switch ( ADS ) |
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 889.4 kJ |
| On Screen Display (OSD) Languages | Arabic,Chinese,Czech,Danish,Dutch,Finnish,French,German,Greek,Italian,Japanese,Korean,Norwegian,Brazilian Portuguese,Portuguese (Europe),Russian,Simplified Chinese,Spanish,Swedish,Turkish |
| Display & Graphics | |
| Viewable Screen Size | 75" (1905 mm) |
| Response Time | 8 ms |
| Display Resolution | 3840 x 2160 |
| Orientation | Landscape/Portrait |
| Backlight Technology | Edge LED |
| Aspect Ratio | 16:9 |
| Maximum LED Life | 5.7 Year |
| Audio | |
| Speakers | Yes |
| Video | |
| Native Contrast Ratio | 1,200:1 |
| Dynamic Contrast Ratio | 100,000,0:1 |
| Brightness | 500 cd/m² |
| Color Gamut | 95% BT.709 |
| Network & Communication | |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Audio Line Out | Yes |
| Number of USB 2.0 Ports | 2 |
| Number of HDMI Inputs | 3 |
| DisplayPort Output | No |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Infrared Inputs | 1 |
| Number of Audio Line Out | 1 |
| Software | |
| Operating System | webOS 6.0 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Off-Mode Power Consumption | 500 mW |
| Physical Characteristics | |
| Bezel Color | Black |
| VESA Mount Standard | 600 x 400 |
| Height | 37.74" (958.60 mm) |
| Width | 66.12" (1679.45 mm) |
| Depth | 1.16" (29.46 mm) |
| Weight (Approximate) | 78.70 lb (35697.72 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Miscellaneous | |
| Package Contents | Remote Control (include battery 2ea) Power Cord QSG Regulation Book Phone to RS232C Gender Cable Holder (6ea) |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool (EPEAT) |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What screen size is listed?
It features a display specification of 75" (1905 mm), giving you clear visuals for work and media use.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
The listed power specification is 500 cd/m², which helps position the unit for the right load level and installation role.
What input or connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
Does the display support VESA mounting or adjustment features?
It features a display specification of 600 x 400, giving you clear visuals for work and media use.
What panel or display technology is mentioned?
Advanced Super Dimension Switch ( ADS ).
