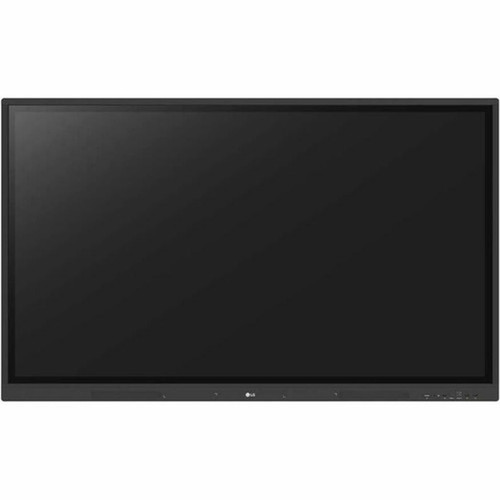

LG 86TR3DK-B.YUSQ CreateBoard 86" 4K UHD LCD Touchscreen Collaboration Display with IPS - 40-Point Infrared Touch - Android 13 - 30W Speakers
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the CreateBoard is powered by a Cortex A55 quad-core processor paired with 4GB of RAM and 64GB of flash storage, providing responsive performance for running Android 13 and compatible applications. The Mali G52MP2 graphics controller handles the 3840 x 2160 resolution at a 60Hz refresh rate, with an 8ms response time and 1200:1 contrast ratio for sharp, fluid visuals.
Audio is driven by dual 30W speakers with support for line-in, line-out, and S/PDIF digital audio, offering clear sound for conference calls and media playback. Networking includes Gigabit Ethernet, dual-band Wi-Fi, and Bluetooth for wireless peripherals, while the port selection covers HDMI, VGA, five USB ports, and an RJ-45 jack for flexible source connectivity.
Relevant factors for this section include Viewable Screen Size, Screen Size Class, Display Screen Type, Touchscreen. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This collaboration display stands out with its large-format touch interface and integrated software ecosystem, designed to replace traditional whiteboards and projectors in collaborative environments. The combination of high-resolution visuals, multi-user touch, and built-in compute eliminates the need for external PCs in many scenarios, simplifying setup and reducing cable clutter.
Interactive Whiteboarding
Use the included writing pens or touch gestures for real-time annotation, drawing, and note-taking directly on the screen, with support for multiple users simultaneously.
- 40-point infrared touch
- Low-latency response
- Compatible with LG CreateBoard Lab and Note 2.0 software
Unified Connectivity
Connect laptops, media players, and peripherals via HDMI, VGA, USB, or wirelessly, with audio passthrough and network integration for streamlined AV control.
- HDMI, VGA, 5x USB ports
- Wi-Fi and Bluetooth
- Audio in/out, S/PDIF
Deployment / Use Cases
The LG CreateBoard is ideal for conference rooms, training centers, educational institutions, and corporate lobbies where interactive displays enhance engagement and productivity. Its 86-inch size and 4K resolution make it suitable for medium to large rooms, providing ample screen real estate for content sharing and collaborative editing.
In meeting rooms, it serves as a central hub for video conferences, presentations, and brainstorming sessions, with the touchscreen enabling dynamic participation. For training environments, the display supports interactive lessons and simulations, while in retail or hospitality settings, it can function as an informational kiosk or digital signage solution.
Conference Room Ready
Deploy as the primary display for hybrid meetings, with built-in Wi-Fi for screen mirroring and USB ports for webcams or microphones.
- Supports video conferencing apps
- Compatible with external cameras
- Network management via LG ConnectedCare DMS
Education & Training
Facilitate interactive learning with multi-touch whiteboarding and content sharing, reducing reliance on separate projectors and PCs.
- Android app compatibility
- Multi-user annotation
- Included writing pens
Localization and Operating System
The LG CreateBoard runs Android 13 as its native operating system, providing a familiar interface for accessing apps, settings, and collaboration tools directly from the display. This built-in OS eliminates the need for an external computer in many scenarios, allowing users to launch whiteboarding applications, video conferencing software, and media players without additional hardware.
For integration with existing IT environments, the display is fully compatible with external devices running Windows 10, Windows 8, Windows 7, Linux, and macOS X. This cross-platform support enables seamless screen mirroring, file sharing, and peripheral connectivity, making it adaptable to diverse workplace ecosystems. The included LG ConnectedCare DMS software facilitates remote management and updates, ensuring the display remains current with security patches and feature enhancements.
Localization is handled through the Android OS, which supports multiple languages and regional settings for global deployment. The software suite, including LG CreateBoard Share, LG CreateBoard Lab, and Note 2.0, is designed for intuitive use in collaborative settings, with touch-optimized interfaces that reduce training time. This combination of a robust operating system and flexible compatibility ensures the display can be deployed in multinational corporations, educational institutions, and government facilities without localization barriers.
Android 13 Integration
Access the Google Play Store to install productivity apps, video conferencing tools, and custom software, with regular security updates and performance optimizations.
- Native app ecosystem
- Over-the-air updates
- Multi-language support
Cross-Platform Compatibility
Connect Windows, Linux, or macOS laptops via HDMI, USB, or wireless protocols for screen sharing and interactive sessions, maintaining workflow continuity.
- Supports major desktop OS versions
- Plug-and-play connectivity
- File transfer capabilities

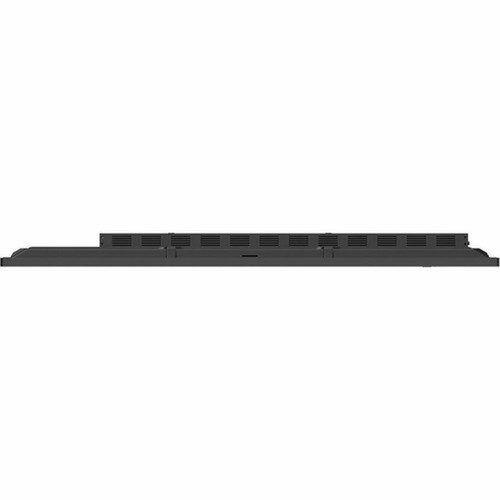

Physical Profile
The display measures 77" wide by 45.70" high with a slim 3.90" depth, featuring a minimalist bezel design that maximizes screen area. Weighing 129.20 lb, it is designed for wall mounting using the VESA 800 x 600 pattern or can be used with an optional stand. The Energy Star certification reflects efficient power management, with 385W typical consumption and 500mW standby.
- Width
- 77" (1955.80 mm)
- Depth
- 3.90" (99.06 mm)
- Height
- 45.70" (1160.78 mm)
- Weight
- 129.20 lb (58604.13 g)
What's in the Box
The package includes all essential components for immediate setup and operation.
Highlights
- 86-inch 4K UHD LCD touchscreen with IPS technology for wide viewing angles
- 40-point infrared multi-touch system supports simultaneous user interaction
- Integrated Cortex A55 quad-core processor with 4GB RAM and 64GB flash storage
- Runs Android 13 and is compatible with Windows, Linux, and macOS devices
- Dual 30W speakers provide clear audio for conferences and media
- Comprehensive connectivity: HDMI, VGA, 5x USB, Ethernet, Wi-Fi, Bluetooth
- VESA 800 x 600 mount compatible for flexible wall or stand installation
- Includes LG CreateBoard software suite for collaboration and management
- Energy Star certified with 385W power consumption
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | LG Electronics |
| Manufacturer Part Number | 86TR3DK-B.YUSQ |
| Brand Name | LG |
| Product Line | CreateBoard |
| Product Model | 86TR3DK-B.YUSQ |
| Product Name | CreateBoard 86TR3DK-B Collaboration Display |
| Product Type | Collaboration Display |
| Display & Graphics | |
| Viewable Screen Size | 86" (2184.40 mm) |
| Screen Size Class | 86" (2184.40 mm) |
| Display Screen Type | LCD |
| Display Screen Technology | In-plane Switching (IPS) Technology |
| Backlight Technology | Direct LED |
| Screen Mode | UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Contrast Ratio | 1,200:1 |
| Brightness | 350 cd/m² |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Graphics Controller Model | Mali G52MP2 |
| Touchscreen Information | |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 40 |
| Touchscreen Technology | Infrared (IrDA) |
| Processor & Chipset | |
| Processor Type | Cortex A55 |
| Processor Core | Quad-core (4 Core) |
| Memory | |
| Standard Memory | 4 GB |
| Storage | |
| Flash Memory Capacity | 64 GB |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 2 |
| RMS Output Power | 30 W |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 5 |
| USB | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| VGA | Yes |
| DisplayPort | No |
| Serial | No |
| S/PDIF Out | Yes |
| Software | |
| Operating System Platform | Android,Windows,Linux,Mac OS |
| Operating System | Android 13,Windows 10,Windows 8,Windows 7,Linux,Mac OS X |
| Software Included | LG ConnectedCare DMS OfficeSuite LG CreateBoard Share LG CreateBoard Lab, Note 2.0 |
| Power Description | |
| Input Voltage | 100 V AC,240 V AC |
| Power Consumption | 385 W |
| Standby Power Consumption | 500 mW |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 600 |
| Height | 45.70" (1160.78 mm) |
| Width | 77" (1955.80 mm) |
| Depth | 3.90" (99.06 mm) |
| Weight (Approximate) | 129.20 lb (58604.13 g) |
| Miscellaneous | |
| Package Contents | CreateBoard 86TR3DK-B Collaboration Display Power Cord 3 M*1 USB Cable (Type A-Type B) 5 M*1 HDMI Cable 3 M*1 Writing Pen*2pcs User Manual QSG Carton Box Remote Controller (include battery 2ea) Wifi module |
| Energy Star | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What screen size is listed?
It features a display specification of 86" (2184.40 mm), giving you clear visuals for work and media use.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
The listed power specification is 350 cd/m², which helps position the unit for the right load level and installation role.
What input or connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
Does the display support VESA mounting or adjustment features?
It features a display specification of Yes, giving you clear visuals for work and media use.
What panel or display technology is mentioned?
It features a display specification of LCD, giving you clear visuals for work and media use.
