LG 98UH5J-H 98" UH5J-H Series High Haze LCD UHD Digital Signage - 3840 x 2160500 cd/m² - IPS - webOS 6.0 - IP5X - VESA 800 x 400
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

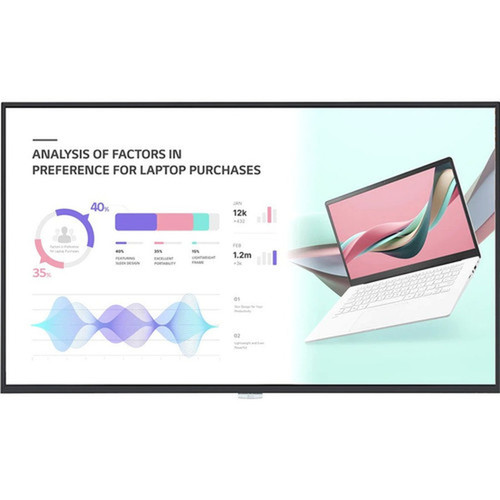

The LG 98UH5J-H is a 98-inch UHD digital signage display engineered for demanding commercial environments. Built with a high-haze IPS panel, it delivers 3840x2160 resolution and 500 cd/m² brightness for clear, vivid visuals in various lighting conditions. The display supports both landscape and portrait orientations, offering flexibility for diverse installation layouts.
Equipped with webOS 6.0, this signage solution provides a robust platform for content management and app integration. Its IP5X rating ensures protection against dust ingress, enhancing reliability in public or industrial settings. Designed for 24/7 operation, the 98UH5J-H meets the rigorous demands of retail, corporate, transportation, and hospitality deployments.
Relevant factors for this section include Panel Technology, Operation Hours, Maximum Heat Generation, Viewable Screen Size. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This display features an In-plane Switching (IPS) panel that maintains consistent color and wide viewing angles, critical for audience engagement. With a native contrast ratio of 1,200:1 and dynamic contrast of 100,000,0:1, it produces deep blacks and vibrant highlights. The 8 ms response time ensures smooth motion handling for video content and dynamic graphics.
Connectivity includes three HDMI inputs, one HDMI output, one USB 2.0 port, RS-232C input and output for serial control, and an RJ-45 network port for wired LAN integration. Wireless LAN is supported for flexible network setups. The operating system, webOS 6.0, enables streamlined content scheduling, remote management, and compatibility with digital signage software.
Relevant factors for this section include Panel Technology, Operation Hours, Maximum Heat Generation, Viewable Screen Size. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The 98UH5J-H combines large-format impact with commercial-grade durability. Its high-haze surface reduces glare and reflections, improving readability in bright environments. The VESA 800x400 mounting pattern supports secure installation on walls, stands, or video wall configurations.
Commercial Reliability
Rated for continuous 24/7 operation with a wide operating temperature range of 32°F to 104°F (0°C to 40°C). The IP5X dust protection rating enhances longevity in challenging environments.
- 24/7 Operation
- IP5X Dust Protection
- Wide Temperature Range
Installation Flexibility
Supports landscape and portrait orientations with a standard 16:9 aspect ratio. The comprehensive connectivity suite, including RS-232C and network control, simplifies integration into existing AV systems.
- Dual Orientation
- RS-232C Control
- VESA 800x400 Mount
Deployment / Use Cases
This display is ideal for high-traffic commercial settings where visibility and reliability are paramount. Its large 98-inch screen and UHD resolution make it effective for commanding attention in lobbies, retail stores, and corporate headquarters.
In transportation hubs, the orientation flexibility and bright 500 cd/m² output ensure clear departure boards or wayfinding information. For digital menu boards in restaurants or promotional video walls in shopping centers, the webOS platform allows dynamic content updates and scheduling.
Retail & Advertising
Deliver immersive brand experiences with ultra-high-definition visuals. The high pixel density showcases product details and promotional content with exceptional clarity.
Corporate & Education
Facilitate presentations, data visualization, and information sharing in boardrooms, training centers, or campus common areas. The lack of built-in speakers allows integration with external audio systems for tailored setups.
Localization and Operating System
The on-screen display (OSD) supports 20 languages, including English, French, Spanish, German, Arabic, Chinese, Japanese, and Russian, accommodating global deployments. This multilingual interface simplifies setup and adjustments for installers and end-users in diverse regions.
webOS 6.0 provides a familiar, intuitive platform for managing digital signage content. It supports app-based functionality, remote management tools, and compatibility with major content management systems, reducing the learning curve for IT and AV teams.
Relevant factors for this section include Panel Technology, Operation Hours, Maximum Heat Generation, Viewable Screen Size. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

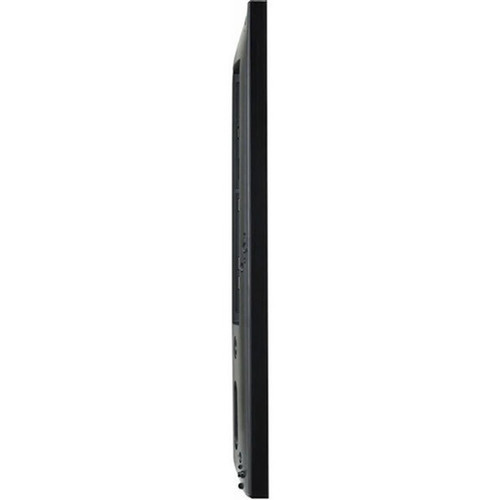

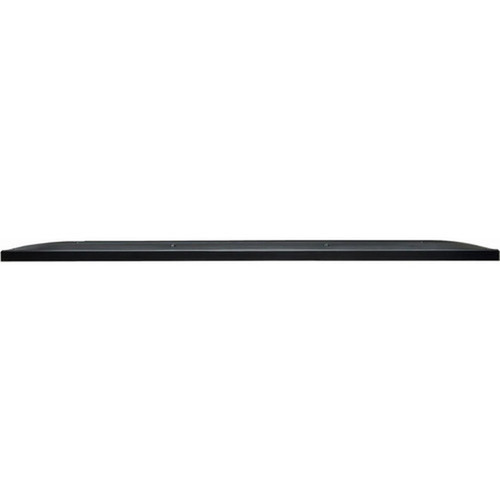

The display measures 86.30" wide, 49.10" high, and 3.40" deep (2192.02 mm x 1247.14 mm x 86.36 mm), with a weight of approximately 145.50 lb (65997.69 g). Its slim profile and black bezel offer a sleek, professional appearance suitable for modern interiors. The VESA 800x400 mount pattern ensures compatibility with a wide range of commercial mounts and video wall frames.
- Width
- 86.30" (2192.02 mm)
- Depth
- 3.40" (86.36 mm)
- Height
- 49.10" (1247.14 mm)
- Weight
- 145.50 lb (65997.69 g)
What's in the Box
The package includes essential components for setup and control:
Highlights
- 98-inch UHD digital signage display with 3840x2160 resolution for immersive visuals
- 500 cd/m² brightness and high-haze IPS panel for clear viewing in bright environments
- webOS 6.0 operating system for easy content management and app integration
- IP5X rating provides dust protection for reliable operation in commercial settings
- Supports landscape and portrait orientations with 16:9 aspect ratio
- VESA 800x400 mount compatible for wall, stand, or video wall installations
- Three HDMI inputs, RS-232C control, and wired/wireless LAN connectivity
- Rated for 24/7 continuous operation with 5.7-year maximum LED life
- 20-language OSD support for global deployment flexibility
- TAA compliant and meets Energy-related Products Directive (ErP) standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | LG Electronics |
| Manufacturer Part Number | 98UH5JH |
| Brand Name | LG |
| Product Model | 98UH5J-H |
| Product Name | 98" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating |
| Product Type | Digital Signage Display |
| Technical Information | |
| Panel Technology | In-plane Switching (IPS) Technology |
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 2233.6 kJ |
| On Screen Display (OSD) Languages | Arabic,Chinese,Czech,Danish,Dutch,English,Finnish,French,German,Greek,Italian,Japanese,Korean,Norwegian,Brazilian Portuguese,Portuguese (Europe),Russian,Simplified Chinese,Spanish,Swedish,Turkish |
| Display & Graphics | |
| Viewable Screen Size | 98" (2489.20 mm) |
| Multi-touch Screen | No |
| Response Time | 8 ms |
| Display Resolution | 3840 x 2160 |
| Orientation | Landscape/Portrait |
| Aspect Ratio | 16:9 |
| Maximum LED Life | 5.7 Year |
| Audio | |
| Speakers | No |
| Video | |
| Native Contrast Ratio | 1,200:1 |
| Dynamic Contrast Ratio | 100,000,0:1 |
| Brightness | 500 cd/m² |
| Color Gamut | 95% BT.709 |
| Network & Communication | |
| Wireless LAN | Yes |
| Bluetooth | No |
| Interfaces/Ports | |
| HDMI | Yes |
| Audio Line Out | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| DisplayPort Output | No |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Audio Line Out | 1 |
| Software | |
| Operating System | webOS 6.0 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Off-Mode Power Consumption | 500 mW |
| Physical Characteristics | |
| Bezel Color | Black |
| VESA Mount Standard | 800 x 400 |
| Height | 49.10" (1247.14 mm) |
| Width | 86.30" (2192.02 mm) |
| Depth | 3.40" (86.36 mm) |
| Weight (Approximate) | 145.50 lb (65997.69 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Miscellaneous | |
| Package Contents | Remote Controller (include battery 2ea) Power Cord QSG Regulation Book Phone to RS232C Gender EYE Bolt |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the screen size and resolution of this LG digital signage display?
The LG 98UH5J-H features a 98-inch (2489.20 mm) viewable screen with a 3840 x 2160 UHD resolution. This 4K resolution delivers high pixel density for sharp, detailed imagery, making it suitable for large-format commercial applications where clarity is essential.
Can this display be used in portrait orientation?
Yes, the display supports both landscape and portrait orientations. This flexibility allows installers to adapt the screen layout to various content formats and installation environments, such as tall information kiosks or vertical advertising displays.
What is the brightness level, and is it suitable for bright rooms?
The display offers 500 cd/m² brightness, which provides excellent visibility in well-lit commercial spaces like retail stores, lobbies, or outdoor-covered areas. Combined with its high-haze panel that reduces glare, it maintains image quality under challenging lighting conditions.
How is this display mounted, and what are the VESA compatibility details?
It supports VESA 800x400 mounting, a common standard for large-format commercial displays. This compatibility ensures easy integration with wall mounts, floor stands, or video wall frames, providing secure and flexible installation options for permanent or semi-permanent setups.
What operating system does it use, and what are the control options?
The display runs webOS 6.0, which offers a user-friendly interface for content management, app installation, and system settings. Control options include RS-232C input and output for serial commands, network control via RJ-45 or wireless LAN, and an included remote controller for basic operations.
Is this display rated for continuous operation, and what are its environmental specifications?
Yes, it is designed for 24/7 continuous operation with a maximum LED life of 5.7 years. It operates within a temperature range of 32°F to 104°F (0°C to 40°C) and humidity from 10% to 80%. The IP5X rating provides dust protection, enhancing durability in public or industrial environments.
