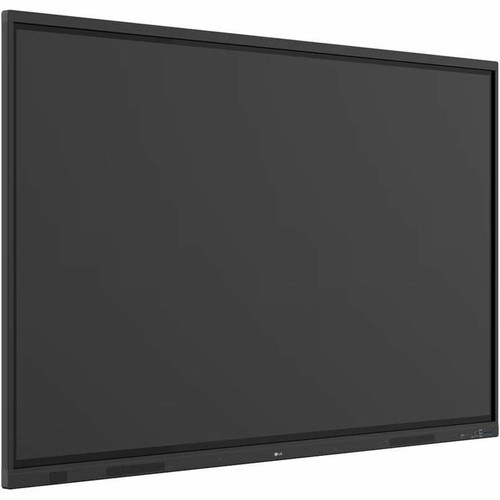

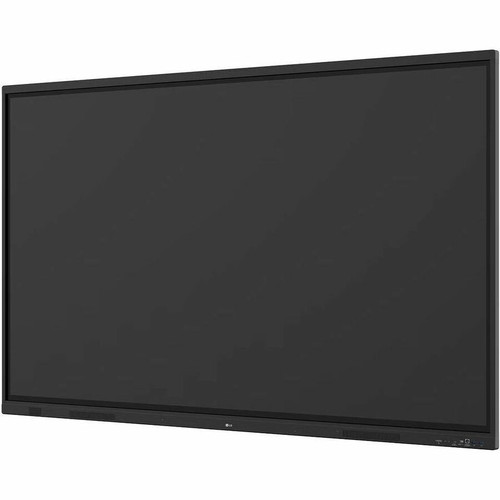

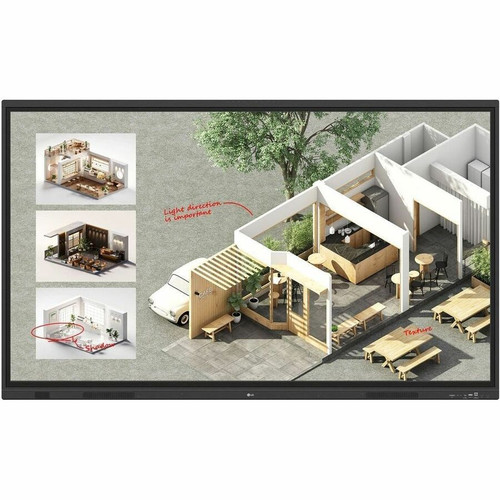

LG 65TR3DQ-B CreateBoard 65" 4K UHD Collaboration Touchscreen Display - Android 14 - 8 GB RAM - 64 GB Storage - 50-Point Multi-Touch
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This collaboration display is built on an ARM Cortex A73 + A53 octa-core processor platform with 8 GB of RAM and 64 GB of flash storage, providing responsive performance for Android applications and multitasking. The display uses a Vertical Alignment (VA) LCD panel with direct LED backlighting, delivering 400 cd/m² brightness, 5000:1 contrast ratio, and wide 178° viewing angles in both directions.
Connectivity is comprehensive, including three HDMI inputs, DisplayPort, VGA, dual USB Type-C ports, five USB 3.0 Type-A ports, USB 2.0, Ethernet, Bluetooth 5.0, NFC, and legacy serial interfaces. The system supports 120V and 230V AC input with 295W typical power consumption.
This section brings together practical product details such as Viewable Screen Size, Screen Size Class, Display Screen Type, Touchscreen, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The CreateBoard 65TR3DQ-B delivers meeting-room readiness with its integrated collaboration features and professional-grade construction. Unlike standard displays that require external compute and audio-visual components, this solution provides a unified platform that reduces cable clutter and simplifies deployment.
Integrated Collaboration AV
The built-in 8-element microphone array captures clear voice from anywhere in the room, while the 4-speaker system with 114W output ensures everyone hears the conversation. The 4K resolution supports detailed video calls and content sharing.
- 8-mic array for voice pickup
- 4 speakers with 114W output
- 4K resolution for video calls
Interactive Touch Experience
With 50-point multi-touch capability and tempered glass surface, multiple users can write, draw, and interact with content simultaneously using fingers or compatible styluses. The responsive touch layer supports natural writing gestures.
- 50 simultaneous touch points
- Tempered glass protection
- Natural writing experience
Professional Deployment Features
VESA 600x400 mounting compatibility allows for wall mounting or integration with rolling stands. The comprehensive port selection supports connection to laptops, PCs, document cameras, and other peripherals commonly used in meeting spaces.
- VESA 600x400 compatible
- Extensive connectivity options
- Dual voltage support (120V/230V)
Deployment / Use Cases
This collaboration display is designed for environments where teams gather to brainstorm, present, and connect with remote participants. Its integrated approach eliminates the need for separate displays, compute sticks, soundbars, and conference cameras, creating a cleaner installation with fewer components to manage.
In corporate meeting rooms, the CreateBoard serves as the central collaboration hub for video conferences using platforms like Zoom, Teams, or Meet. The touch interface allows presenters to annotate directly on shared content, while the audio system ensures clear communication with remote participants.
Conference Room Installation
Wall-mount or use with a mobile stand to create a flexible meeting space. Connect laptops via HDMI or USB-C for content sharing, or use the built-in Android platform for wireless presentations and app-based collaboration.
Education & Training Environments
The interactive touch surface supports engaging lessons and workshops where instructors and students can collaborate on digital whiteboards, annotate documents, and participate in virtual classroom sessions.
Localization and Operating System
The display runs Android 14 with EDLA (Enterprise Device Licensing Agreement) certification, providing access to the Google Play Store for business and productivity applications. The Android platform supports enterprise management tools for centralized deployment and maintenance across multiple displays.
While the interface language defaults to English, Android 14 supports multiple language options that can be configured during setup or through device management policies. The operating system includes security updates and enterprise features suitable for business environments.
This section brings together practical product details such as Viewable Screen Size, Screen Size Class, Display Screen Type, Touchscreen, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
With dimensions of 58.60" wide, 35.73" high, and 3.93" deep (1488.4 x 907.5 x 99.7 mm), the display presents a substantial presence suitable for medium to large meeting rooms. The 76.61 lb (34.75 kg) weight requires proper mounting hardware or a sturdy stand.
The VESA 600x400 mounting pattern provides flexibility for wall installation or use with compatible mobile stands. The tempered glass surface offers protection against scratches during daily use while maintaining optical clarity for the touch layer beneath.
- Width
- 58.60" (1488.40 mm)
- Depth
- 3.93" (99.70 mm)
- Height
- 35.73" (907.50 mm)
- Weight
- 76.61 lb (34750 g)
Highlights
- 65" 4K UHD (3840 x 2160) display with 400 cd/m² brightness
- 50-point multi-touch with tempered glass surface
- Android 14 operating system with EDLA certification
- Integrated 8-element microphone array for voice pickup
- 4-speaker system with 114W RMS output power
- ARM Cortex A73 + A53 octa-core processor with 8 GB RAM
- 64 GB flash storage for apps and content
- Comprehensive connectivity: 10 USB ports, HDMI, DisplayPort, Ethernet
- Wireless features: Bluetooth 5.0, Wi-Fi, NFC
- VESA 600x400 mount compatible for flexible installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | LG Electronics |
| Manufacturer Part Number | 65TR3DQ-B |
| Brand Name | LG |
| Product Line | CreateBoard |
| Product Model | 65TR3DQ-B |
| Product Name | CreateBoard 65TR3DQ-B Collaboration Display |
| Product Type | Collaboration Display |
| Display & Graphics | |
| Viewable Screen Size | 65" (1651 mm) |
| Screen Size Class | 65" (1651 mm) |
| Display Screen Type | LCD |
| Display Screen Technology | Vertical Alignment (VA) |
| Backlight Technology | Direct LED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 6.50 ms |
| Contrast Ratio | 5,000:1 |
| Brightness | 400 cd/m² |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Graphics Controller Manufacturer | ARM |
| Graphics Controller Model | Mali-G52 MP8 |
| Tempered Glass | Yes |
| Glass Thickness | 0.13" (3.20 mm) |
| Touchscreen Information | |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 50 |
| Processor & Chipset | |
| Processor Manufacturer | ARM |
| Processor Type | Cortex A73 + A53 |
| Processor Core | Octa-core (8 Core) |
| Memory | |
| Standard Memory | 8 GB |
| Storage | |
| Flash Memory Capacity | 64 GB |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 4 |
| Microphone | Yes |
| Number of Microphone Array Elements | 8 |
| RMS Output Power | 114 W |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Near Field Communication | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 10 |
| USB | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| S/PDIF Out | Yes |
| Software | |
| Operating System Platform | Android |
| Operating System | Android 14 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Consumption | 295 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 600 x 400 |
| Height | 35.73" (907.50 mm) |
| Width | 58.60" (1488.40 mm) |
| Depth | 3.93" (99.70 mm) |
| Weight (Approximate) | 76.61 lb (34750 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
User Manual
FAQ
What is the screen resolution and size of this collaboration display?
The LG CreateBoard 65TR3DQ-B features a 65-inch (1651 mm) display with 4K UHD resolution of 3840 x 2160 pixels. This high resolution ensures sharp text, detailed images, and clear video calls, making it suitable for content sharing and video conferencing in meeting rooms.
How many people can use the touchscreen simultaneously?
This display supports 50-point multi-touch, meaning up to 50 touch points can be recognized at the same time. This allows multiple users to write, draw, or interact with content simultaneously using their fingers or compatible styluses during collaborative sessions.
What audio features are built into this collaboration display?
The display includes an 8-element microphone array that captures voice from anywhere in the room, plus a 4-speaker system with 114W RMS output power. This integrated audio solution eliminates the need for external microphones and speakers, providing clear audio for both local participants and remote callers.
What operating system does this display use?
It runs Android 14 with EDLA (Enterprise Device Licensing Agreement) certification. This provides access to the Google Play Store for business applications, supports enterprise management tools, and includes security updates suitable for professional deployment in corporate environments.
Can this display be mounted on a wall or stand?
Yes, the display is VESA 600 x 400 compatible, allowing for wall mounting or use with compatible mobile stands. This flexibility enables installation in various room configurations, from permanent wall mounts in dedicated meeting rooms to mobile stands for shared spaces.
What connectivity options are available on this collaboration display?
Connectivity includes three HDMI inputs, DisplayPort, VGA, two USB Type-C ports, five USB 3.0 Type-A ports, USB 2.0, Ethernet, audio in/out, serial port, and S/PDIF out. Wireless features include Wi-Fi, Bluetooth 5.0, and NFC for quick pairing with compatible devices.
What camera resolution or video format is listed?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What microphone or speaker configuration is listed?
The communications feature set includes Yes, helping clarify how the product supports voice capture, call handling, or day-to-day conferencing use.
