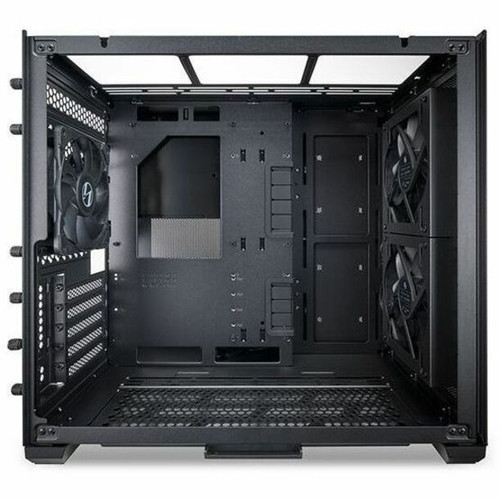

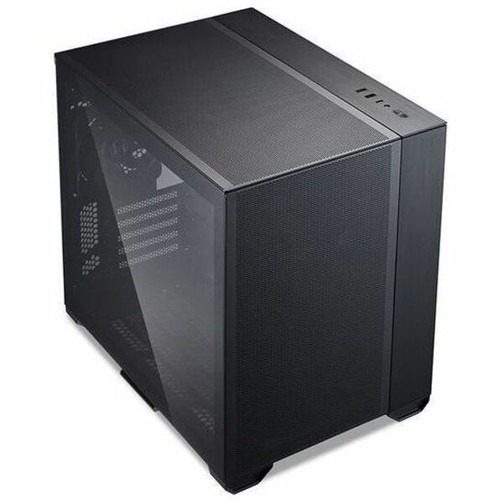

Lian Li AIR MINI Black Mesh Aluminum Tempered Glass Tower Supporting ATX Micro ITX And EATX Motherboards Motherboard Mini-tower O11AMX
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Motherboard Supported: ATX,Micro ATX,ITX,EATX
Number of Fans Supported: 10
Number of Fans Installed: 1
Fan Size Supported: 4.72" (120 mm)
Installed Fan Size: 4.72" (120 mm)
Features: Dual Chamber,Dust Filter,On/Off Button
Number of Internal 3.5" Bays: 3
Number of Internal 2.5" Bays: 6
Total Number of Expansion Slots: 7
Total Number of USB Ports: 3
USB Port Details: 2 x USB 3.0,1 x USB 3.1 Type C
Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Color Family: Black
Product Color: Black
Product Material: Mesh,Aluminum,Tempered Glass
Cooler Type: Fan/Liquid Cooler
Form Factor: Mini-tower
Maximum CPU Cooler Height: 6.69" (170 mm)
Maximum PSU Length: 7.87" (200 mm)
Maximum GPU Length: 14.25" (362 mm)
Height: 15.12" (384 mm)
Width: 11.34" (288 mm)
Depth: 15.75" (400 mm)
- Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- The space-saving mini-tower structure supports up to 10 fan(s) to maintain the casing ambient along with offering power-pack performance and portability
[custom-specifications]
| Specifications | |
| Manufacturer | Lian Li Industrial Co., Ltd |
| Manufacturer Part Number | O11AMX |
| Manufacturer Website Address | http://www.lian-li.com |
| Brand Name | Lian Li |
| Product Line | O11 AIR MINI |
| Product Model | O11AMX |
| Product Name | O11 AIR MINI |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | ATX,Micro ATX,ITX,EATX |
| Number of Fans Supported | 10 |
| Number of Fans Installed | 1 |
| Fan Size Supported | 4.72" (120 mm) |
| Installed Fan Size | 4.72" (120 mm) |
| Features | Dual Chamber,Dust Filter,On/Off Button |
| Bays | |
| Number of Internal 3.5" Bays | 3 |
| Number of Internal 2.5" Bays | 6 |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| USB Port Details | 2 x USB 3.0,1 x USB 3.1 Type C |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Mesh,Aluminum,Tempered Glass |
| Cooler Type | Fan/Liquid Cooler |
| Form Factor | Mini-tower |
| Maximum CPU Cooler Height | 6.69" (170 mm) |
| Maximum PSU Length | 7.87" (200 mm) |
| Maximum GPU Length | 14.25" (362 mm) |
| Height | 15.12" (384 mm) |
| Width | 11.34" (288 mm) |
| Depth | 15.75" (400 mm) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
