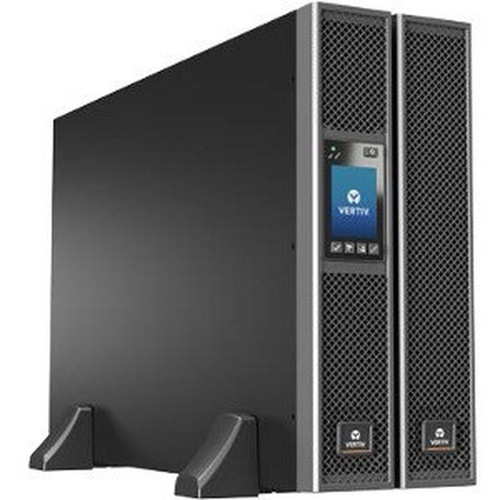

Liebert GXT5-10KMVRT6UXLN GXT5 10kVA 208/120V Double Conversion Online UPS - 6U Rack/Tower - 4.5 Min Full Load Runtime - Hot-Swappable Battery
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Liebert GXT5 10kVA 208/120V double conversion online UPS delivers enterprise-grade power protection for critical infrastructure in data centers, network environments, and mission-critical equipment. This 10 kVA capacity unit operates with true online double conversion technology, ensuring zero transfer time and pure sine wave output for sensitive electronic loads. Its terminal block hardwired connection and single-phase design support robust power delivery for server racks, networking gear, and industrial systems where uninterrupted operation is essential.
Engineered for flexible deployment, the GXT5 supports both 6U rack-mount and tower configurations, making it suitable for server rooms, telecom installations, and demanding industrial applications. The hot-swappable battery design allows for maintenance without system downtime, while integrated environmental sensors monitor temperature, humidity, and potential leaks to enhance reliability. With a high power factor of 0.9 to 1.0, the unit maximizes usable power for connected equipment, reducing space and cost requirements in power-dense environments.
Technical Overview
This UPS provides 10 kVA of power capacity with a high power factor of 0.9 to 1.0, maximizing usable power for connected equipment. It accepts 208 V AC input at 60 Hz and delivers user-selectable 208/120 V AC output, supporting both single-phase applications. The double conversion topology ensures continuous power conditioning, with pure sine wave output that maintains compatibility with modern IT hardware. Overload protection ranges from 105% to 125% for 5 minutes, 125% to 150% for 60 seconds, and handles impact loads above 150% with a minimum 200 ms response.
Runtime performance includes 4.50 minutes at full load and 12.50 minutes at half load using the internal battery. With one external battery cabinet, runtime extends to 13 minutes at full load and 33.50 minutes at half load. The valve-regulated, non-spillable lead acid batteries are flame-retardant and hot-swappable, facilitating easy replacement during operation. Environmental sensors provide leak detection, temperature monitoring, and humidity sensing, while the maximum operating temperature reaches 104°F (40°C) and elevation up to 9842.52 ft (3000000 mm).
Key Product Advantages
The Liebert GXT5 combines high-efficiency operation with robust management features, delivering reliable power protection that reduces operational costs and simplifies maintenance.
High Efficiency Design
Energy Star 2.0 certified with up to 95% normal operating efficiency, reducing energy consumption and heat output in critical environments.
- Lower operating costs
- Reduced cooling requirements
- Environmental compliance
Advanced Monitoring
Features a gravity-sensing full-color graphic LCD display with LED status indicators for clear visual feedback on system status and alarms.
- Real-time power metrics
- Fault indication
- Remote management ready
Comprehensive Protection
Includes environmental sensors for leak detection, temperature, and humidity monitoring, plus overload protection from 105% to 150% with defined time limits.
- Proactive environmental monitoring
- Overload safeguards
- Mission-critical reliability
Deployment / Use Cases
The GXT5 10kVA UPS is engineered for environments where power continuity is non-negotiable. Its dual rack/tower flexibility and high capacity make it ideal for protecting server racks, network switches, and storage arrays in data centers and enterprise IT closets.
For industrial and telecom applications, the unit's robust construction and wide operating temperature range support deployment in manufacturing facilities, cellular base stations, and broadcast equipment rooms. The optional Vertiv RDU101 network communications card enables remote monitoring and management through SNMP, web interface, or telnet, allowing IT teams to maintain oversight across distributed locations.
Data Center Protection
Safeguards critical servers and networking equipment against power disturbances, with hot-swappable batteries for uninterrupted operation during maintenance.
Industrial & Telecom
Supports mission-critical equipment in harsh environments with environmental sensors and a wide operating temperature range up to 104°F.
Physical Profile
The GXT5 measures 10.20" (259.08 mm) in height, 16.90" (429.26 mm) in width, and 25.60" (650.24 mm) in depth, with a weight of approximately 224.80 lb. Its 6U rack height and included 4-post fixed rail kit facilitate secure installation in standard server racks, while the tower stand option allows for floor deployment where rack space is limited.
- Width
- 16.90" (429.26 mm)
- Depth
- 25.60" (650.24 mm)
- Height
- 6U
- Weight
- 224.80 lb (101967.56 g)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 10 kVA double conversion online UPS with pure sine wave output
- 6U rack/tower mount design with included rail kit and tower stand
- 4.5-minute full load runtime, extendable with external battery cabinet
- Hot-swappable, valve-regulated lead acid batteries
- 208 V AC input with user-selectable 208/120 V AC output
- Energy Star 2.0 certified with up to 95% efficiency
- Full-color graphic LCD display with gravity sensing
- Environmental sensors for leak, temperature, and humidity monitoring
- Serial, USB, and network (RJ-45) connectivity ports
- 3-year comprehensive warranty including battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5-10KMVRT6UXLN |
| Brand Name | Vertiv Liebert |
| Product Series | GXT |
| Product Name | GXT5 10kVA 208/120V OL-Double Conversion R/T UPS |
| Packaged Quantity | 1 Pack |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Terminal Block |
| Receptacle Type | Hardwired |
| Receptacle Detail | 1 x Hardwired |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Data Center,Mission Critical Equipment,Network |
| Power Description | |
| Load Capacity (VA) | 10 kVA |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC,208 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| User Selectable Output | 208/120VAC |
| Utility (AC) Mode Overload | 105% to 125% for 5 minutes 125% to 150% for 60 seconds >150% (impact load) minimum 200 ms |
| Controls/Indicators | |
| Status Indicators | LED/Full Color Graphic LCD: Alarm / Fault Indication |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Valve-regulated/Non-spillable/Flame-retardant/Hot-swappable |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 12.50 Minute |
| Number of External Battery Cabinets | 1 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 13 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 33.50 Minute |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Environmental Sensors | Leak Detection Sensor,Temperature Sensor,Humidity Sensor |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 10.20" (259.08 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 25.60" (650.24 mm) |
| Weight (Approximate) | 224.80 lb (101967.56 g) |
| Miscellaneous | |
| Package Contents | GXT5 10kVA 208/120V OL-Double Conversion R/T UPS 4 Post Fixed Rail Kit Tower Stand USB Cable Quick Start Guide Safety Instruction Manual |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This UPS provides a power capacity of 10 kVA, suitable for protecting critical equipment in data centers, network environments, and mission-critical applications. The high power factor of 0.9 to 1.0 maximizes usable power, allowing more connected loads and reducing space and cost requirements.
What are the runtime specifications for this UPS?
The internal battery delivers 4.50 minutes of runtime at full load and 12.50 minutes at half load. With one external battery cabinet, runtime extends to 13 minutes at full load and 33.50 minutes at half load, providing flexibility for extended backup needs in demanding environments.
What voltage inputs and outputs does this UPS support?
This UPS accepts 208 V AC input at 60 Hz and offers user-selectable output voltages of 120 V AC or 208 V AC. The dual voltage output supports a wide range of equipment, making it versatile for various IT and industrial applications.
Is this UPS designed for rack or tower installation?
The GXT5 features a flexible rack/tower form factor, with a 6U rack height for standard server rack mounting and an included tower stand for floor deployment. This dual configuration allows installation in data centers, server rooms, or locations where rack space is limited.
What management and connectivity options are available?
This UPS includes serial, USB, and network (RJ-45) ports for local and remote management. An optional Vertiv RDU101 network communications card enables advanced monitoring via SNMP, web interface, or telnet, facilitating oversight of power status and environmental conditions.
What is included in the warranty for this UPS?
The UPS comes with a 3-year comprehensive warranty that includes battery coverage, with options for a 2-year extension. This warranty supports reliable operation and reduces long-term maintenance costs for critical power protection systems.
