Liebert PSI5-1500RT120 Vertiv PSI5 1500VA/1350W Line Interactive UPS - 2U Rack/Tower - 120V AC - AVR - Pure Sine Wave - 6 Outlets - Hot-Swappable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

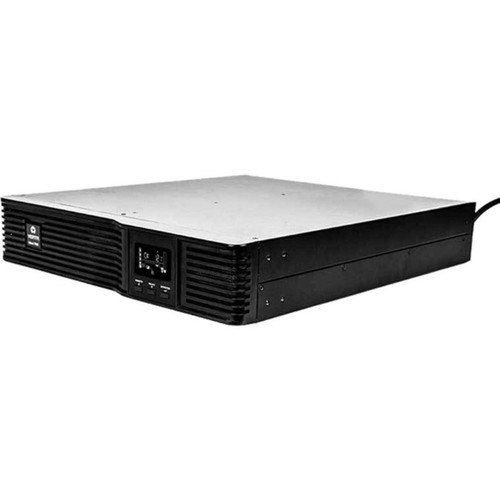

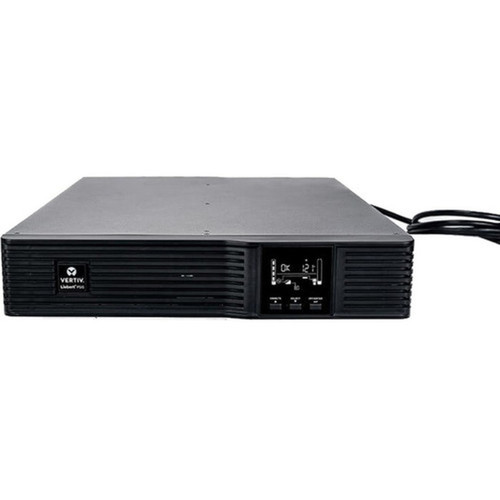

The Vertiv Liebert PSI5 1500VA/1350W line interactive UPS delivers reliable power protection for critical IT infrastructure in server rooms, network closets, and business environments. This 2U rack/tower unit combines automatic voltage regulation (AVR) with pure sine wave output to safeguard connected equipment from voltage fluctuations, surges, and outages.
Designed for single-phase 120V AC input, the UPS provides 1.50 kVA / 1.35 kW of power capacity with a 0.9 output power factor for efficient operation. The unit includes six NEMA outlets (four 5-15R and two 5-20R) to support servers, storage devices, networking gear, VoIP systems, POS terminals, and other critical loads. The hot-swappable, valve-regulated lead-acid battery ensures maintainability without system downtime.
Relevant product facts for this section include AVR: Yes, Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15R,NEMA 5-20R, Load Capacity (VA): 1.50 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Technical Overview
This line interactive UPS features a transfer time of 6 milliseconds and maintains output voltage between 100-125V AC across an input range of 75-146V AC. The pure sine wave output ensures compatibility with sensitive electronic equipment, including active PFC power supplies found in modern servers and networking hardware.
The unit supports up to six external battery cabinets for extended runtime, increasing full load backup to 2.82 hours and half load to 6.38 hours. The LCD display provides real-time status monitoring, while USB (HID compliant) and network (RJ-45) ports enable management and monitoring capabilities. An EPO (Emergency Power Off) port adds safety integration.
The valve-regulated lead-acid battery is hot-swappable and replaceable, with a typical recharge time of 4 hours after complete discharge. The UPS operates on a single-phase 60 Hz input frequency and includes automatic voltage regulation (AVR) to correct brownouts and overvoltages without engaging the battery, extending battery life. The system is rated for maximum operation at 104°F (40°C) and storage between 5°F (-15°C) and 122°F (50°C).
Key Product Advantages
The PSI5 UPS delivers enterprise-grade power protection with features designed for reliability and manageability in business environments. Automatic voltage regulation corrects brownouts and overvoltages without battery usage, extending battery life and reducing replacement cycles.
Extended Runtime Flexibility
Support for up to six external battery cabinets allows customization of backup duration to meet specific operational requirements, from brief ride-through to extended runtime scenarios.
- 2.82 hours at full load with external batteries
- 6.38 hours at half load with external batteries
- Hot-swappable battery design for maintenance without downtime
Management & Monitoring
Integrated LCD display with rotation capability provides clear visibility into system status, while USB and network ports enable remote monitoring and management through compatible software.
- Rotatable LCD for optimal viewing
- USB HID compliant for basic monitoring
- Network port for advanced management cards
Deployment / Use Cases

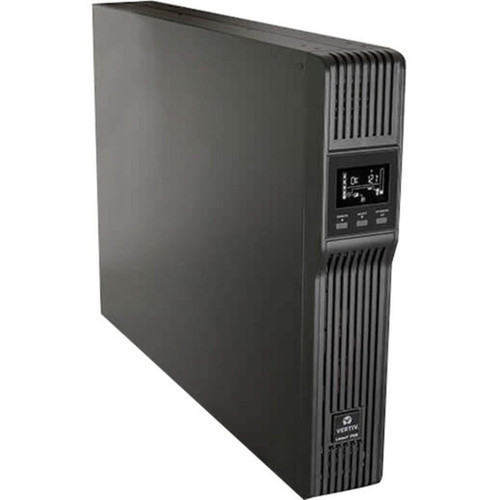

The PSI5 1500VA UPS is engineered for deployment in environments where power quality and continuity are critical to operations. Its 2U rack/tower form factor makes it suitable for both rack-mounted installations in data centers and tower configurations in smaller network closets or office settings.
Typical applications include protecting server infrastructure, network equipment, storage arrays, VoIP systems, security systems, POS terminals, and other business-critical electronics. The unit's wide input voltage range (75-146V AC) ensures operation in areas with unstable grid power, while the pure sine wave output maintains compatibility with modern power supplies.
Server Room & Data Center
Provides ride-through power for servers and networking equipment during brief outages, with external battery support for extended runtime during prolonged power events.
Network Closet & Edge Computing
Compact 2U design fits standard racks while tower configuration option supports standalone deployment for branch offices, retail locations, and remote sites.
Physical Profile

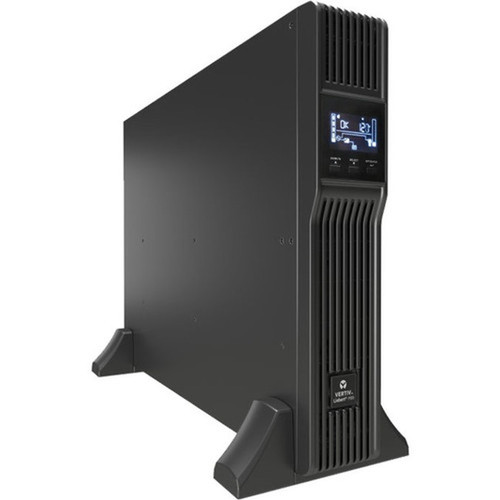

The UPS measures 3.5" (88.9 mm) in height, 17.2" (436.88 mm) in width, and 20" (508 mm) in depth, occupying 2U of rack space. Weighing approximately 42.6 lb (19.32 kg), the unit includes tower support stands for standalone deployment. The rack/tower convertible design provides installation flexibility for various environments.
The compact 2U form factor fits standard 19-inch racks in data centers, server rooms, and network closets, while the included tower stands allow for freestanding use in office or edge computing settings. The dimensions and weight are optimized for easy handling and integration into existing infrastructure without excessive space consumption.
- Width
- 17.20" (436.88 mm)
- Depth
- 20" (508 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 42.60 lb (19323.03 g)
What's in the Box
The package includes the PSI5 1500VA/1350W, 120VAC rack-tower UPS unit, a 1.8-meter (6 ft) USB Type A to USB Type B cable, printed quick start guide with safety instructions, CD, and tower support stands.
Highlights
- 1500VA/1350W line interactive UPS with 0.9 output power factor
- 2U rack/tower convertible design with included tower stands
- Automatic voltage regulation (AVR) protects against brownouts and overvoltages
- Pure sine wave output for compatibility with sensitive electronics
- Six outlets (4x NEMA 5-15R, 2x NEMA 5-20R) for multiple devices
- Hot-swappable valve-regulated lead-acid battery for maintenance without downtime
- Supports up to six external battery cabinets for extended runtime
- LCD display with rotation capability for real-time status monitoring
- USB and network ports for management and monitoring
- Energy Star certified and RoHS compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | PSI5-1500RT120 |
| Brand Name | Vertiv Liebert |
| Product Series | PSI5 |
| Product Name | PSI5 1500VA/1350W, 120VAC, Rack-tower |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R,NEMA 5-20R |
| Receptacle Detail | 4 x NEMA 5-15R,2 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Server,Network Closet,Security System,Network Workstation,Large Network Peripheral,Storage Device,VoIP,Multimedia Terminal Adapter,POS Terminal,IT System,Business,Critical System,Network Bridge,Electronic Device,Automation System,Gaming Console,Media Closet,Cash Register,Healthcare,Entertainment Center,Education,Power Supply |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Controls/Indicators | |
| Status Indicators | LCD Display |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Number of External Battery Cabinets | 6 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 2.82 Hour |
| Backup/Run Time With External Battery Cabinet (Half Load) | 6.38 Hour |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 20" (508 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 42.60 lb (19323.03 g) |
| Miscellaneous | |
| Package Contents | PSI5 1500VA/1350W, 120VAC, Rack-tower UPS Unit USB Type A To USB Type B Cable, 1.8 Meter (6 ft) In Length Printed Quick Start Guide With Safety Instructions CD Tower Support Stands |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This UPS has a power capacity of 1.50 kVA (1500VA) and 1.35 kW (1350W), suitable for protecting servers, networking equipment, and other critical IT loads in business environments.
What are the runtime specifications for this UPS?
At full load, the UPS provides 4 minutes of backup runtime, extending to 12 minutes at half load. With up to six external battery cabinets, runtime increases to 2.82 hours at full load and 6.38 hours at half load for extended power protection.
How many outlets does this UPS have and what types are they?
The UPS includes six outlets: four NEMA 5-15R and two NEMA 5-20R receptacles, allowing connection of multiple devices such as servers, storage, and networking gear with standard North American plugs.
What input and output voltage specifications does this UPS support?
The UPS accepts 120V AC input with a wide range of 75-146V AC, and outputs a stable voltage between 100-125V AC. This ensures compatibility with standard North American power systems and protects against voltage fluctuations.
Is this UPS designed for rack or tower deployment?
This UPS features a convertible 2U rack/tower design, allowing installation in standard 19-inch racks for data centers or as a standalone tower using included support stands for office or network closet environments.
What management and connectivity options are available on this UPS?
The UPS includes a rotatable LCD display for real-time monitoring, USB (HID compliant) and network (RJ-45) ports for remote management, and an EPO port for emergency shutdown integration, supporting both basic and advanced monitoring needs.
