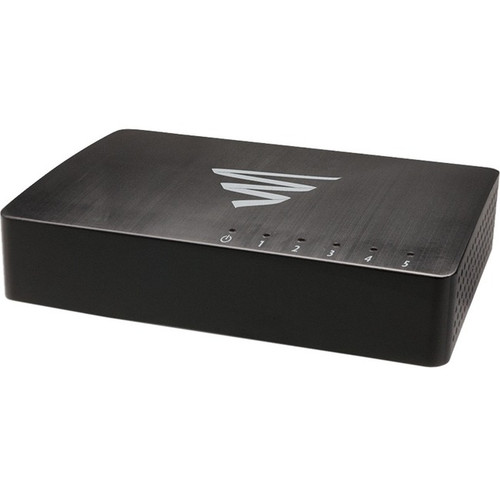

Luxul XGS-1005 5-Port Gigabit Desktop Switch - Unmanaged Layer 2 - 10/100/1000Base-T - Desktop/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a Layer 2 device, supporting basic switching functions like MAC address learning and forwarding to efficiently manage network traffic between connected devices. It delivers Gigabit Ethernet speeds up to 1000 Mbps per port, with backward compatibility for 10 Mbps and 100 Mbps networks, ensuring seamless integration with older equipment.
The XGS-1005 uses external power via an included adapter and does not support Power over Ethernet (PoE) or redundant power supplies. Its unmanaged nature means no advanced features like VLANs, QoS, or SNMP monitoring, keeping operation simple and cost-effective for basic networking needs.
This section brings together practical product details such as Total Number of Network Ports, Modular, Stack Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Luxul XGS-1005 excels in environments where reliability, ease of use, and compact design are priorities. Its Gigabit ports ensure fast data transfers for bandwidth-intensive tasks like file sharing or media streaming, while the Layer 2 support provides efficient local traffic management without manual intervention.
Plug-and-Play Simplicity
As an unmanaged switch, it requires no configuration—simply connect devices and power it on for immediate network expansion.
- No software setup needed
- Ideal for non-technical users
- Reduces deployment time
Compact and Versatile
With a small footprint and wall-mount capability, it fits neatly on desks, shelves, or mounted surfaces, saving valuable space.
- Dimensions: 3.6" x 2.5" x 0.75"
- Weight: 4.63 lb
- Suitable for tight spaces
Deployment / Use Cases
This switch is tailored for scenarios where adding a few wired connections quickly and affordably is the goal. It’s perfect for home offices needing to link a computer, printer, and NAS device, or small retail setups connecting point-of-sale systems and security cameras over a reliable wired backbone.
In educational settings like classrooms or libraries, it can extend network access to multiple workstations without Wi-Fi congestion. For IT labs or testing environments, its unmanaged design allows for straightforward network segmentation or device isolation with minimal overhead.
Home Office Networking
Connect a desktop PC, laptop dock, network printer, and smart TV for a stable, high-speed home network free from wireless interference.
Small Business Expansion
Add wired ports to a router in a small office to support additional employees or peripherals, enhancing network reliability for critical operations.
Physical Profile
The XGS-1005 features a sturdy, compact chassis measuring 3.60 inches in length, 2.50 inches in width, and 0.75 inches in height, with a weight of approximately 4.63 pounds. Its desktop form factor includes rubber feet for stability, and pre-drilled mounting holes allow for vertical or horizontal wall installation, making it adaptable to various environments. The all-metal construction aids in heat dissipation, supporting reliable operation in ambient temperatures typical of office settings.
- Width
- 2.50" (63.50 mm)
- Height
- 0.75" (19 mm)
- Weight
- 4.63 lb (2100 g)
- Length
- 3.60" (91.50 mm)
What's in the Box
The package includes everything needed for immediate setup and use.
Highlights
- 5 Gigabit Ethernet ports for connecting multiple devices
- Layer 2 switching support for efficient local network traffic
- Unmanaged design for plug-and-play operation without configuration
- 10/100/1000Base-T compatibility for versatile network integration
- Compact desktop form factor with wall-mount capability
- Silent, fanless operation suitable for quiet environments
- External power adapter included for easy setup
- RoHS compliant for environmentally responsible manufacturing
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | XGS-1005 |
| Brand Name | Luxul |
| Product Model | XGS-1005 |
| Product Name | 5-Port Gigabit Desktop Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable |
| Height | 0.75" (19 mm) |
| Width | 2.50" (63.50 mm) |
| Length | 3.60" (91.50 mm) |
| Weight (Approximate) | 4.63 lb (2100 g) |
| Miscellaneous | |
| Package Contents | 5-Port Gigabit Desktop Switch External Power Adapter Quick Install Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many devices can I connect to the Luxul XGS-1005 switch?
The Luxul XGS-1005 provides five Gigabit Ethernet ports, allowing you to connect up to five wired devices such as computers, printers, NAS drives, or IP cameras. If you need to connect more devices, you can daisy-chain another switch to one of the ports, though this may impact performance depending on network traffic.
Does this switch support Power over Ethernet (PoE)?
No, the Luxul XGS-1005 does not support Power over Ethernet. It is a standard Gigabit switch that requires connected devices to have their own power sources. For PoE capabilities, you would need a dedicated PoE switch or injectors to power devices like wireless access points or security cameras.
What is Layer 2 switching, and why does it matter for this switch?
Layer 2 switching refers to the data link layer in networking, where the switch uses MAC addresses to forward traffic between devices on the same local network. For the XGS-1005, this means it can efficiently manage communication between connected devices without needing IP routing, making it faster and simpler for basic LAN setups while reducing broadcast traffic.
Can I mount the Luxul XGS-1005 on a wall?
Yes, the Luxul XGS-1005 is designed for both desktop and wall mounting. It includes pre-drilled holes on the bottom of the chassis, allowing you to secure it vertically or horizontally to a wall or other surface. This flexibility helps save desk space and organize cables in tight installations like network closets or behind monitors.
Is the Luxul XGS-1005 a managed or unmanaged switch?
The Luxul XGS-1005 is an unmanaged switch. This means it operates automatically without any configuration options for features like VLANs, QoS, or monitoring. It’s ideal for users who want a simple, plug-and-play solution to expand their network without dealing with complex settings or management interfaces.
What type of cables does this switch support, and what is the maximum cable length?
The Luxul XGS-1005 supports standard twisted-pair Ethernet cables (Cat5e, Cat6, or higher) with RJ-45 connectors. It is compatible with 10/100/1000Base-T networks, and the maximum recommended cable length for reliable Gigabit performance is 100 meters (328 feet) per segment, following typical Ethernet standards.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Twisted Pair, giving buyers a clearer picture of expected coverage after purchase.
