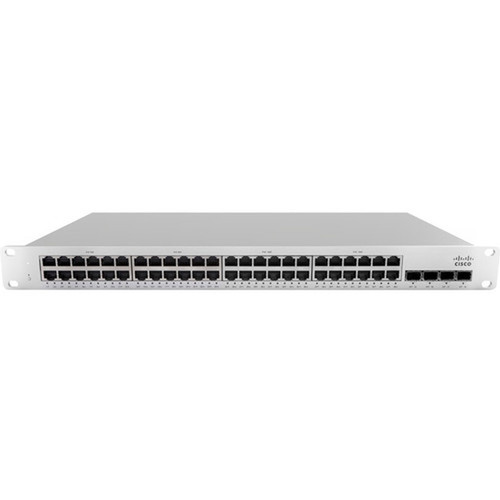

Meraki MS210-48LP-HW 48-Port Gigabit Managed Ethernet Switch - Layer 3 - 4 SFP Slots - 490W PoE - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Gigabit Ethernet speeds, supporting 10/100/1000Base-T and 1000Base-X network technologies. It features a non-blocking architecture with 48 Gigabit Ethernet ports for local device connections and 4 Gigabit Ethernet uplink ports for cascading to other network devices.
The MS210-48LP-HW includes 4 dedicated SFP expansion slots for fiber optic connections, with no shared SFP slots ensuring full port availability. Layer 3 switching support enables advanced routing capabilities, while the stack port allows for easy network extension through stacking multiple switches.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The MS210-48LP-HW combines high port density with enterprise-grade features in a compact 1U form factor. Its 490W power budget supports Power over Ethernet (PoE) devices, while redundant power supply capability ensures continuous operation.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Cloud Management, Scalable Design.
Cloud Management
Managed through the Meraki cloud dashboard for simplified network configuration, monitoring, and troubleshooting from any location.
- Centralized control
- Remote management
- Real-time analytics
Scalable Design
Stack port functionality allows multiple switches to operate as a single logical unit, simplifying network expansion and management.
- Easy stacking
- Unified management
- Flexible growth
Deployment / Use Cases
The MS210-48LP-HW is ideal for medium to large business environments requiring reliable, high-performance networking infrastructure. Its 48-port configuration makes it suitable for office networks, retail environments, and educational institutions where multiple devices need simultaneous connectivity.
With Layer 3 support and SFP expansion capabilities, this switch excels in backbone applications, connecting multiple network segments or providing uplinks to core switches. The rack-mountable design with 1U height makes it perfect for data center cabinets or network closets where space optimization is critical.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Office Network Core
Serve as the central switching hub for office workstations, VoIP phones, and wireless access points with PoE support.
Data Center Edge
Provide high-density connectivity at the network edge with fiber uplink capabilities for backbone connections.
Physical Profile
The switch features a compact 1U rack-mountable design measuring 1.72" in height, 19.08" in width, and 13.38" in depth, making it compatible with standard 19-inch racks. It can also be deployed as a desktop unit for flexible installation options. The robust construction weighs approximately 8.78 pounds, ensuring durability in various environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.72" (43.69 mm), 19.08" (484.63 mm), 13.38" (339.85 mm), 8.78 lb (3982.54 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 19.08" (484.63 mm)
- Depth
- 13.38" (339.85 mm)
- Height
- 1.72" (43.69 mm)
- Weight
- 8.78 lb (3982.54 g)
What's in the Box
The package includes the MS210-48LP-HW Ethernet Switch and a mounting screw kit for secure rack installation.
Package contents include MS210-48LP-HW Ethernet Switch Mounting Screw Kit, MS210-48LP-HW Ethernet Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 48 Gigabit Ethernet ports for high-density connectivity
- 4 SFP slots for fiber optic uplink expansion
- Layer 3 switching support for advanced routing
- 490W power budget with PoE capability
- 1U rack-mountable design for space-efficient deployment
- Cloud-managed through Meraki dashboard
- Stack port for easy network expansion
- Redundant power supply support for reliability
- Supports both twisted pair and fiber optic media
- Lifetime limited warranty for long-term peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | MS210-48LP-HW |
| Brand Name | Cisco Meraki |
| Product Series | MS210 |
| Product Model | MS210-48LP-HW |
| Product Name | MS210-48LP-HW Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network,4 x Gigabit Ethernet Uplink,2 x Stack |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 490 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Desktop |
| Height | 1.72" (43.69 mm) |
| Width | 19.08" (484.63 mm) |
| Depth | 13.38" (339.85 mm) |
| Weight (Approximate) | 8.78 lb (3982.54 g) |
| Miscellaneous | |
| Package Contents | MS210-48LP-HW Ethernet Switch Mounting Screw Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many devices can I connect to this switch?
The MS210-48LP-HW provides 48 Gigabit Ethernet ports for connecting network devices such as computers, printers, IP phones, and wireless access points. Additionally, it includes 4 dedicated uplink ports and 2 stack ports for connecting to other network switches or expanding your network infrastructure.
Does this switch support Power over Ethernet (PoE)?
Yes, the MS210-48LP-HW features a 490W power budget that supports Power over Ethernet devices. This allows you to power compatible devices like VoIP phones, wireless access points, and security cameras directly through the Ethernet cables, reducing the need for separate power adapters at each endpoint.
What are the SFP slots used for?
The 4 SFP (Small Form-factor Pluggable) slots allow you to add fiber optic transceivers for connecting to fiber network infrastructure. This enables longer distance connections (beyond the 100-meter limit of copper) and provides uplink options to core switches or other network segments using fiber optic cables.
What does Layer 3 switching mean?
Layer 3 switching refers to the switch's ability to perform routing functions at the network layer (Layer 3 of the OSI model). This allows the switch to route traffic between different IP subnets or VLANs without requiring a separate router, improving network performance and simplifying network architecture for more complex deployments.
How is this switch managed?
The MS210-48LP-HW is fully manageable through the Cisco Meraki cloud dashboard. This web-based management platform provides centralized control over switch configuration, monitoring, and troubleshooting. You can manage the switch remotely from any location with internet access, with no need for on-premises management software.
Can this switch be rack-mounted?
Yes, the switch is designed for 1U rack mounting in standard 19-inch racks. It measures 1.72" in height, 19.08" in width, and 13.38" in depth, making it compatible with most rack enclosures. The package includes a mounting screw kit for secure installation. The switch can also be used as a desktop unit if rack mounting isn't required.
