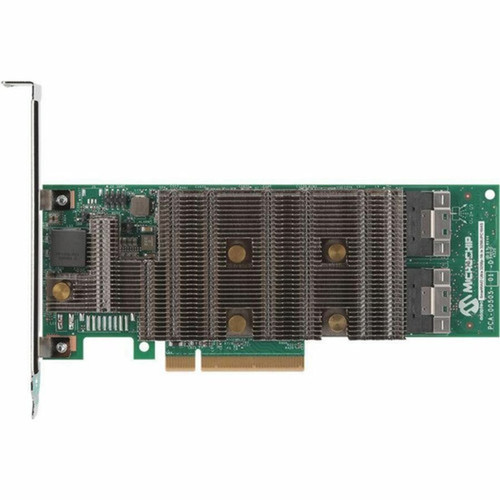

Microchip SmartRAID Ultra E SAS PCIe Gen4 Full-height RAID Controller With Advanced Levels Supported Express Plug-in Card 3258UPC32IX2S
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Host Interface: PCI Express 4.0 x16
Controller Type: 24Gb/s SAS
RAID Supported: Yes
RAID Levels: 0,1,5,6,10,50,60,1 Triple,10 Triple
Device Supported: Server,Storage System
Operating System Supported: Windows Server,Windows 10,Red Hat Enterprise Linux,CentOS,SuSE Linux Enterprise Server,Ubuntu Linux,Debian,Oracle Linux,Citrix XenServer,Solaris,FreeBSD OS,VMware ESXi
Features: S.M.A.R.T. Support,Online Capacity Expansion (OCE)
Cache Memory: 8 GB
Total Number of SAS Ports: 32
Number of SAS Ports (Internal): 32
SAS Connector Details: SlimSAS (SFF-8654)
Form Factor: Plug-in Card
Card Height: Full-height
Height: 4.37" (111 mm)
Length: 6.60" (167.64 mm)
Platform Supported: PC,Linux
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
[custom-specifications]
| Specifications | |
| Manufacturer | Microchip Technology Inc. |
| Manufacturer Part Number | 3258UPC32IX2S |
| Manufacturer Website Address | http://www.microchip.com |
| Brand Name | Microchip |
| Product Line | SmartRAID Ultra |
| Product Series | 3200 |
| Product Model | 3258P-32i /e |
| Product Name | SmartRAID Ultra 3258P-32i /e |
| Product Type | SAS/SATA/NVMe Controller |
| Technical Information | |
| Host Interface | PCI Express 4.0 x16 |
| Controller Type | 24Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,6,10,50,60,1 Triple,10 Triple |
| Device Supported | Server,Storage System |
| Operating System Supported | Windows Server,Windows 10,Red Hat Enterprise Linux,CentOS,SuSE Linux Enterprise Server,Ubuntu Linux,Debian,Oracle Linux,Citrix XenServer,Solaris,FreeBSD OS,VMware ESXi |
| Features | S.M.A.R.T. Support,Online Capacity Expansion (OCE) |
| Memory | |
| Cache Memory | 8 GB |
| Interfaces/Ports | |
| Total Number of SAS Ports | 32 |
| Number of SAS Ports (Internal) | 32 |
| SAS Connector Details | SlimSAS (SFF-8654) |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Card Height | Full-height |
| Height | 4.37" (111 mm) |
| Length | 6.60" (167.64 mm) |
| Miscellaneous | |
| Platform Supported | PC,Linux |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
