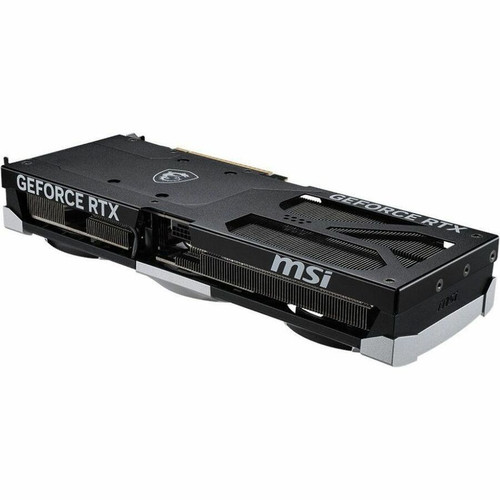

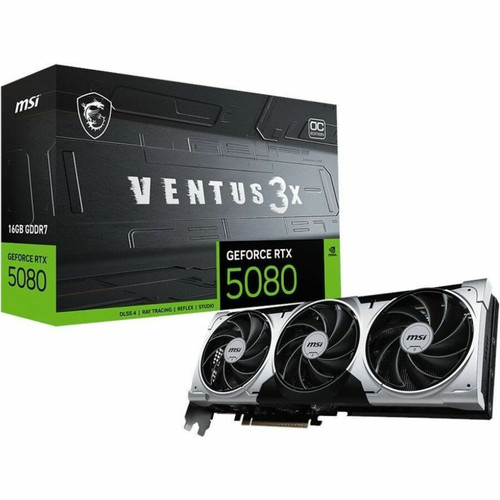

MSI RTX 5080 16G VENTUS 3X OC PLUS - 7680 x 4320 - 2.66 GHz Boost Clock - 256 bit Bus Width - PCI Express 5.0 - DisplayPort - 3 x - (G5080-16V3CP)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
API Supported: DirectX 12 Ultimate,OpenGL 4.6
Number of Monitors Supported: 4
Maximum Digital Display Resolution: 7680 x 4320
CUDA Cores: 10752
Features: Triple-fan Cooler
AI-powered: Yes
Chipset Manufacturer: NVIDIA
Chipset Line: GeForce
Chipset Series: RTX
Chipset Model: RTX 5080
GPU Boost Clock: 2.66 GHz
Standard Memory: 16 GB
Memory Technology: GDDR7
Bus Width: 256 bit
Host Interface: PCI Express 5.0
DisplayPort: Yes
Number of DisplayPort Outputs: 3
HDMI: Yes
Number of HDMI Outputs: 1
Power Supply Wattage: 850 W
Power Connector: 1x 16-pin
Slot Space Required: Triple
Form Factor: Plug-in Card
Cooler Type: Fan Cooler
Height: 1.93" (49 mm)
Width: 4.76" (121 mm)
Length: 11.93" (303 mm)
Weight (Approximate): 2.44 lb (1105 g)
Platform Supported: PC
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: 3 Year
Additional Warranty Information:
No Extended Warranty available
- Triple Fan:
- Three fans and a huge heatsink ensure a cool and quiet experience for you.
- TORX FAN 5.0:
- Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate:
- Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
- Core Pipes:
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

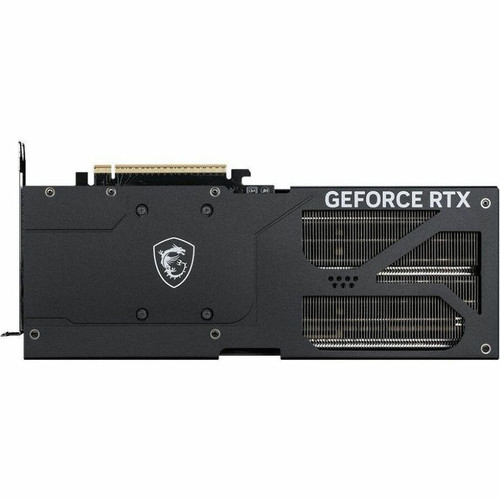

- Metal Backplate:
- A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- Zero Frozr:
- The fans completely stop when temperatures are relatively low, eliminating all noise.
- DrMOS:
- DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
- Fuse:
- Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
- MSI Center:
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner:
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
[custom-specifications]
| Specifications | |
| Manufacturer | MSI |
| Manufacturer Part Number | G5080-16V3CP |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | Ventus 3x Plus |
| Product Model | G5080-16V3CP |
| Product Name | GeForce RTX 5080 16G Ventus 3X OC Plus Graphic Card |
| Product Type | Graphic Card |
| Technical Information | |
| API Supported | DirectX 12 Ultimate,OpenGL 4.6 |
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 10752 |
| Features | Triple-fan Cooler |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| Chipset Model | RTX 5080 |
| GPU Boost Clock | 2.66 GHz |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | GDDR7 |
| Bus Width | 256 bit |
| Interfaces/Ports | |
| Host Interface | PCI Express 5.0 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Power Description | |
| Power Supply Wattage | 850 W |
| Power Connector | 1x 16-pin |
| Physical Characteristics | |
| Slot Space Required | Triple |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 1.93" (49 mm) |
| Width | 4.76" (121 mm) |
| Length | 11.93" (303 mm) |
| Weight (Approximate) | 2.44 lb (1105 g) |
| Miscellaneous | |
| Platform Supported | PC |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | No Extended Warranty available |
