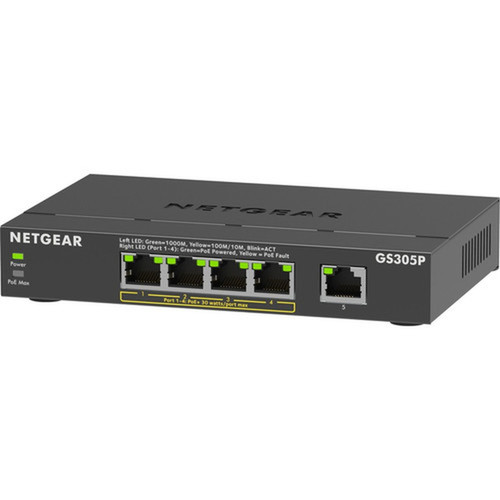

Netgear GS305P-300NAS 5-Port Gigabit Ethernet Switch with PoE+ - 63W Budget - Desktop/Wall Mount - Unmanaged
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 switch supports Gigabit Ethernet (10/100/1000Base-T) over twisted pair cabling, delivering a maximum data transfer rate of 128 MB/s. The non-blocking switching architecture ensures wire-speed throughput across all ports, while auto-negotiation and Auto-MDI/MDIX functionality automatically establish optimal connections and eliminate the need for crossover cables.
The switch incorporates energy-efficient technology (IEEE 802.3az) to reduce power consumption during periods of low network activity. LED indicators provide clear status monitoring for each port, power, and link activity. Comprehensive networking standards compliance includes IEEE 802.1p for traffic prioritization and IEEE 802.3x for flow control, ensuring reliable interoperability with existing network infrastructure.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Uplink Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS305P combines essential switching capabilities with practical deployment features for cost-effective network expansion. Its integrated PoE+ support removes the complexity of separate power supplies for connected devices, while the compact form factor and mounting flexibility optimize space utilization in constrained environments.
Simplified Power Delivery
All five ports provide PoE+ capability with a 63W total budget, supporting IEEE 802.3af and 802.3at standards for compatible devices.
- Eliminates separate power adapters
- Powers IP cameras, VoIP phones, and WAPs
- Backward compatible with PoE devices
Zero-Configuration Operation
As an unmanaged switch, it requires no setup or management software, making it ideal for users who need immediate network expansion without IT expertise.
- Plug-and-play installation
- No software configuration needed
- Automatic network detection
Quiet and Durable Build
The fanless design ensures completely silent operation, while the metal housing provides physical protection and heat dissipation for long-term reliability.
- No moving parts for silent operation
- Metal casing for durability
- Effective passive cooling
Deployment / Use Cases
This switch is particularly well-suited for small business and residential applications where simple, reliable network expansion is needed. Its PoE capabilities make it ideal for powering and connecting security systems, communication devices, and wireless infrastructure without complex wiring setups.
Common deployment scenarios include small office networks supporting 2-5 workstations with peripheral devices, home offices requiring additional wired connections for computers and network-attached storage, and retail environments deploying IP surveillance cameras and VoIP phones. The wall-mount capability allows clean installation in network closets, behind desks, or in retail display areas where desktop space is limited.
Small Office Connectivity
Connect computers, printers, and network storage while powering VoIP phones and wireless access points from a single compact device.
Home Security Systems
Power and connect multiple IP cameras with a single cable run, simplifying installation of surveillance systems without separate power outlets.
Physical Profile
Measuring 6.22 inches wide, 3.98 inches deep, and 1.06 inches high, the switch occupies minimal space on a desktop or when wall-mounted. The included rubber footpads provide stable placement on flat surfaces, while the wall mount kit enables vertical installation to conserve workspace. The 14.11-ounce weight ensures secure mounting without requiring heavy-duty hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.06" (27 mm), 6.22" (158 mm), 3.98" (101 mm), 14.11 oz (400 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.22" (158 mm)
- Depth
- 3.98" (101 mm)
- Height
- 1.06" (27 mm)
- Weight
- 14.11 oz (400 g)
What's in the Box
The package includes all necessary components for immediate deployment and flexible installation.
Highlights
- 5 Gigabit Ethernet ports with PoE+ support on all ports
- 63W total PoE budget for powering multiple devices simultaneously
- Fanless design for completely silent operation in office environments
- Desktop or wall-mount installation options with included hardware
- Plug-and-play unmanaged operation requiring no configuration
- Energy-efficient technology reduces power consumption during low activity
- Durable metal housing for long-term reliability and heat dissipation
- Auto-MDI/MDIX eliminates need for crossover cables
- LED indicators for easy status monitoring of each port
- 3-year limited warranty for added peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GS305P-300NAS |
| Brand Name | Netgear |
| Product Series | 300 |
| Product Model | GS305P |
| Product Name | GS305P Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless,LED Indicator,Energy Efficient,Plug and Play |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 128 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1p,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3i,IEEE 802.3x,IEEE 802.3 |
| Management & Protocols | |
| Manageable | No |
| Switch Management Type | Unmanaged Essentials |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 63 W |
| Input Voltage | 54 V DC |
| Power Source | DC |
| Power Consumption | 66.78 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable |
| Height | 1.06" (27 mm) |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Package Contents | GS305P Ethernet Switch Power Adapter Wall Mount Kit Rubber Footpads Installation Guide |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many devices can this switch power simultaneously with PoE?
The Netgear GS305P provides a total PoE budget of 63W across all five ports. The actual number of devices that can be powered simultaneously depends on the power requirements of each connected device. For example, it could typically power 4-5 standard VoIP phones (each requiring 5-7W) or 2-3 higher-power devices like wireless access points or pan-tilt-zoom cameras. The switch automatically negotiates power delivery with each connected device according to IEEE 802.3af and 802.3at standards.
Can this switch be mounted in a rack?
The GS305P is designed for desktop or wall mounting rather than standard rack installation. It includes a wall mount kit for vertical installation but does not have rack ears or a rack-mountable form factor. For rack deployment, Netgear offers other models in their product lineup specifically designed for rack mounting with appropriate dimensions and mounting hardware.
What is the difference between managed and unmanaged switches?
Unmanaged switches like the GS305P operate as plug-and-play devices with no configuration options, making them ideal for simple network expansion where basic connectivity is sufficient. Managed switches offer advanced features like VLANs, QoS, port mirroring, and SNMP monitoring for network traffic control and optimization. The GS305P's unmanaged design simplifies deployment for users who don't require these advanced networking features.
Does this switch support fiber optic connections?
No, the GS305P supports only copper Ethernet connections via RJ-45 ports. All five ports are designed for twisted pair cabling (CAT5e, CAT6, or higher) with 10/100/1000Base-T compatibility. For fiber optic connectivity, you would need a switch with SFP slots or a separate media converter to translate between copper and fiber interfaces.
What is the maximum cable length supported?
The switch supports standard Ethernet cable lengths up to 100 meters (328 feet) per port when using Category 5e or higher cabling. This complies with IEEE 802.3 standards for Gigabit Ethernet over twisted pair. For PoE devices, the maximum effective distance may be slightly reduced depending on cable quality and power requirements, but typically remains within the 100-meter specification for most installations.
Can this switch be used with existing network equipment?
Yes, the GS305P is fully compatible with standards-based network equipment from any manufacturer. It supports key networking standards including IEEE 802.3 for Ethernet, IEEE 802.3af/at for PoE, and IEEE 802.1p for traffic prioritization. The auto-negotiation feature automatically detects and configures the optimal connection speed (10/100/1000 Mbps) with any compatible device, while Auto-MDI/MDIX eliminates concerns about straight-through versus crossover cabling.
