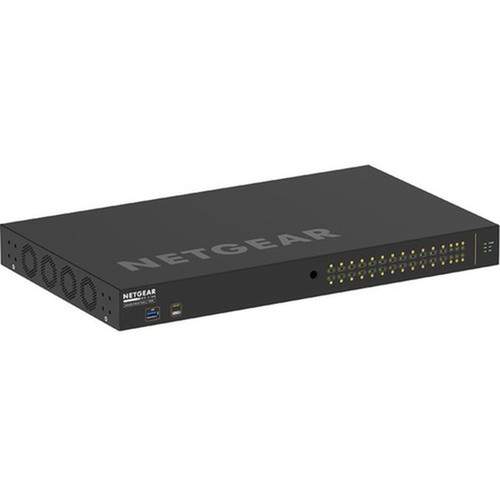

Netgear GSM4230P-100NAS M4250-26G4F-PoE+ AV Line Managed Switch - 24 Port PoE+ - 4 SFP Slots - 300W PoE Budget - Layer 3 - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features 24 Gigabit Ethernet PoE+ ports (10/100/1000Base-T) that deliver both data and up to 30W per port to connected devices. The four SFP (mini-GBIC) slots support 1000Base-X fiber optic connections for long-distance uplinks or backbone links, with media support for both optical fiber and twisted pair cabling.
Layer 3 switching enables advanced routing, VLAN segmentation, and quality of service (QoS) for optimized network traffic management. The switch operates with a single internal power supply using a standard C14 connector, consuming 35.80W under typical loads while providing a substantial 300W total PoE budget for connected devices.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The M4250-26G4F-PoE+ combines high-density PoE+ deployment with enterprise-grade switching features in a compact 1U form factor. All 24 ports deliver both Gigabit Ethernet data and PoE+ power, eliminating the need for separate power injectors while supporting the latest PoE+ devices.
Complete PoE+ Deployment Ready
With 300W of total PoE budget distributed across 24 ports, this switch can power multiple high-demand PoE+ devices simultaneously, from PTZ cameras to dual-band access points.
- 24 ports with PoE+ support
- 30W per port maximum
- 300W total budget
Fiber Connectivity Expansion
Four SFP slots provide flexible uplink options for connecting to fiber backbones or extending network reach beyond copper limitations.
- 1000Base-X support
- Optical fiber media
- Long-distance connectivity
Professional Installation Flexibility
The 1U rack-mountable design includes comprehensive mounting hardware for both front and rear port configurations, with tabletop operation also supported.
- Includes rack brackets
- Front or rear port mounting
- Rubber footpads included
Deployment / Use Cases
This switch excels in environments requiring both high-density network connectivity and centralized power delivery. The 24 PoE+ ports make it ideal for security camera systems, where each camera requires both network connectivity and power, eliminating the need for separate electrical wiring at each installation point.
In corporate and educational settings, the switch supports VoIP phone systems, wireless access point deployments, and digital signage networks. The Layer 3 capabilities enable network segmentation for different departments or security zones, while the SFP slots allow connection to fiber backbones in larger buildings or between facilities.
IP Security & Surveillance Systems
Power and connect up to 24 PoE+ IP cameras from a single switch, with Layer 3 features for segregating camera traffic from other network segments.
Unified Communications Infrastructure
Support VoIP phones, wireless access points, and video conferencing equipment with reliable PoE+ power and managed switching capabilities.
Physical Profile
The switch measures 17.32" wide × 10.12" deep × 1.70" high (440 × 257 × 43.20 mm) and weighs 9.48 lb (4300 g). The 1U rack-mountable design includes two sets of brackets for flexible mounting in two-post racks, allowing installation with ports facing either front or rear. Rubber footpads enable stable tabletop operation when rack mounting isn't required.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 10.12" (257 mm), 17.32" (440 mm), 1.70" (43.20 mm), 9.48 lb (4300 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.32" (440 mm)
- Depth
- 1.70" (43.20 mm)
- Height
- 10.12" (257 mm)
- Weight
- 9.48 lb (4300 g)
What's in the Box
The switch ships with all necessary components for immediate deployment in rack or tabletop configurations.
Highlights
- 24 Gigabit Ethernet ports with PoE+ support (30W per port)
- 300W total PoE budget for powering multiple devices simultaneously
- 4 SFP (mini-GBIC) slots for fiber optic uplink expansion
- Layer 3 switching capabilities for advanced routing and VLAN support
- 1U rack-mountable design with comprehensive mounting hardware included
- Managed switch with uplink port for network expansion
- Supports both optical fiber and twisted pair media types
- 35.80W power consumption with Energy-related Products Directive (ErP) compliance
- Lifetime limited warranty from Netgear
- Includes console cables for both serial and USB management connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GSM4230P-100NAS |
| Brand Name | Netgear |
| Product Line | AV Line |
| Product Series | M4250 |
| Product Model | M4250-26G4F-PoE+ |
| Product Name | M4250-26G4F-PoE+ AV Line Managed Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 300 W |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 35.80 W |
| Plug/Connector Type | C14 |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Table Top |
| Height | 10.12" (257 mm) |
| Width | 17.32" (440 mm) |
| Depth | 1.70" (43.20 mm) |
| Weight (Approximate) | 9.48 lb (4300 g) |
| Miscellaneous | |
| Package Contents | M4250-26G4F-PoE+ AV Line Managed Switch Power Cord(s) RJ45 Straight-through Wiring Serial Console Cable to DB9 USB Type-C to USB-A 2.0 Console Cable Rubber Caps for the SFP/SFP+ Sockets Rubber Footpads for Tabletop Installation Installation Guide 2 x Regular (Short) Brackets and Screws for Two-post Rack Mount (for Front Posts) Allowing for Mounting with Ports on the Back, or Ports On the Front of the Rack 2 x Longer Brackets for Two-post Rack Mount (for Front Posts) Recessing the Switch by 2 Inches in Order to Make Room for the Cabling |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Thailand |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many PoE+ devices can this switch power simultaneously?
The switch provides 300W of total PoE budget distributed across all 24 ports. Each port supports the PoE+ standard with up to 30W per port. The actual number of devices that can be powered simultaneously depends on the power requirements of each connected device. For example, it could power approximately 10 devices drawing 30W each, or more devices with lower power requirements like VoIP phones or basic access points.
What types of SFP modules are compatible with this switch?
The four SFP (mini-GBIC) slots support standard Gigabit SFP modules for 1000Base-X connections. Compatible modules include both fiber optic SFP modules (such as 1000BASE-SX for multimode fiber or 1000BASE-LX for single-mode fiber) and copper SFP modules for twisted pair connections. The switch includes rubber caps to protect unused SFP sockets from dust and debris.
Can this switch be mounted in a standard 19-inch rack?
Yes, the switch is designed for 1U rack mounting in standard 19-inch racks. The package includes two sets of brackets: regular short brackets for standard mounting and longer brackets that recess the switch by 2 inches to provide additional cable management space. These brackets allow installation with ports facing either the front or rear of the rack, providing flexibility for different rack configurations.
What management interfaces does this switch support?
This managed switch supports multiple management interfaces including serial console connectivity via the included DB9 cable and USB management through the included USB Type-C to USB-A 2.0 console cable. As a Layer 3 managed switch, it provides web-based management, CLI access, and supports advanced features like VLANs, QoS, and routing protocols for comprehensive network control and monitoring.
What is the difference between Layer 2 and Layer 3 switching on this device?
This switch supports Layer 3 switching, which goes beyond basic Layer 2 switching by adding routing capabilities. Layer 3 switching enables inter-VLAN routing, allowing different network segments to communicate while maintaining separation. It supports IP routing, access control lists (ACLs), and quality of service (QoS) based on IP addresses and protocols, making it suitable for more complex network architectures than basic Layer 2 switches.
What is included for console connectivity and management?
The switch includes both a serial console cable (DB9 connector) and a USB Type-C to USB-A 2.0 console cable for out-of-band management. This dual-cable approach ensures compatibility with older equipment that uses serial ports as well as modern systems with USB connectivity. The console access provides direct management interface for initial configuration, troubleshooting, and advanced setup without requiring network connectivity.
