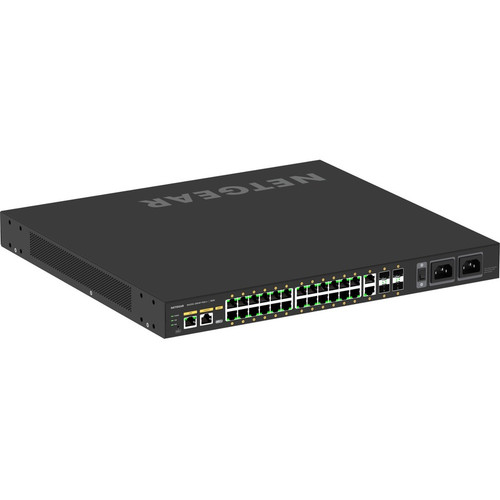

Netgear GSM4230UP-100NAS M4250-26G4F-PoE++ AV Line Managed Switch - 24 Port PoE++ - 4 SFP Slots - Layer 3 - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This managed switch operates at Layer 3, providing routing functionality that supports scalable network designs and efficient inter-VLAN communication. The 24 Gigabit Ethernet ports deliver PoE++ (IEEE 802.3bt) power, capable of supplying up to 90W per port with a total PoE budget of 1.44 kW to support high-power devices such as PTZ cameras, access points, and AV equipment.
Four SFP (mini-GBIC) slots offer expansion for fiber optic connections, supporting 1000Base-X technology for backbone or uplink requirements. The switch supports both twisted pair and optical fiber media, with network compatibility for 10/100/1000Base-T copper connections and fiber links up to specified distances.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The M4250-26G4F-PoE++ switch provides several distinct advantages for network architects and IT managers. Its high PoE++ budget supports the latest power-hungry devices without requiring separate power injectors, simplifying installations and reducing cable clutter. The Layer 3 capabilities enable advanced routing features that go beyond basic switching, allowing for more sophisticated network segmentation and traffic management.
High-Density PoE++
All 24 Gigabit Ethernet ports deliver PoE++ power, making this switch ideal for powering multiple high-wattage devices like advanced surveillance cameras, wireless access points, and digital signage displays from a single infrastructure component.
- 90W per port capability
- 1.44 kW total budget
- Eliminates separate power supplies
Expansion Ready
Four SFP slots provide flexible uplink options for connecting to fiber backbones or extending network reach beyond copper limitations. This modular approach future-proofs your investment as network requirements evolve.
- Fiber connectivity support
- Backbone link capability
- Distance extension options
Deployment Flexibility
With both rack-mount and tabletop form factors supported, this switch adapts to various installation scenarios. The included mounting hardware accommodates different rack configurations, while rubber footpads enable stable tabletop placement.
- 1U rack compatibility
- Tabletop installation option
- Multiple mounting brackets included
Deployment / Use Cases
This switch excels in environments requiring both high-density connectivity and intelligent network management. Its combination of PoE++ power delivery, Layer 3 routing, and fiber expansion makes it particularly suitable for AV installations where multiple high-power devices need both data and power over a single cable.
Enterprise networks benefit from the switch's managed capabilities and Layer 3 functionality, enabling VLAN segmentation, quality of service policies, and efficient routing between network segments. The dual power supplies and robust construction ensure reliable operation in critical infrastructure applications where uptime is essential.
AV and Digital Signage Deployments
Power and connect multiple high-resolution displays, media players, and control systems while managing network traffic between different zones or content sources. The PoE++ capability eliminates separate power runs for each device.
Enterprise Edge Switching
Serve as an aggregation switch for departmental networks, providing both access layer connectivity and inter-VLAN routing capabilities. The Layer 3 features reduce reliance on core routers for basic routing tasks.
Physical Profile
The switch features a compact 1U form factor measuring 15.75" wide × 17.32" deep × 1.70" high (400 × 440 × 43.20 mm), optimized for standard rack installations while maintaining sufficient depth for proper cable management. Weighing 14.88 lb (6750 g), it provides substantial construction without excessive weight that could strain rack mounting points.
Front and rear mounting options accommodate different rack configurations and cabling preferences. The included brackets support both standard mounting and recessed installation that provides additional space for cable bends and management behind the switch.
- Width
- 17.32" (440 mm)
- Depth
- 1.70" (43.20 mm)
- Height
- 15.75" (400 mm)
- Weight
- 14.88 lb (6750 g)
What's in the Box
The switch ships with comprehensive installation accessories to support various deployment scenarios. All necessary components for both rack-mount and tabletop installations are included.
Highlights
- 24 Gigabit Ethernet ports with PoE++ (IEEE 802.3bt) support
- 1.44 kW total PoE budget for high-power device deployment
- Layer 3 managed switch with advanced routing capabilities
- 4 SFP (mini-GBIC) slots for fiber expansion and uplinks
- Dual power supplies for enhanced reliability
- 1U rack-mountable design with tabletop installation option
- Supports both twisted pair and optical fiber media
- Includes comprehensive mounting hardware for flexible installation
- Lifetime limited warranty for long-term investment protection
- Energy-efficient design compliant with ErP directive
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | GSM4230UP-100NAS |
| Brand Name | Netgear |
| Product Line | AV Line |
| Product Series | M4250 |
| Product Model | M4250-26G4F-PoE++ |
| Product Name | M4250-26G4F-PoE++ AV Line Managed Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE++,2 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 1.44 kW |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 2 |
| Power Consumption | 48.80 W |
| Plug/Connector Type | C14 |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Table Top |
| Height | 15.75" (400 mm) |
| Width | 17.32" (440 mm) |
| Depth | 1.70" (43.20 mm) |
| Weight (Approximate) | 14.88 lb (6750 g) |
| Miscellaneous | |
| Package Contents | M4250-26G4F-PoE++ AV Line Managed Switch Power Cord(s) RJ45 Straight-through Wiring Serial Console Cable to DB9 USB Type-C to USB-A 2.0 Console Cable Rubber Caps for the SFP/SFP+ Sockets Rubber Footpads for Tabletop Installation Installation Guide 2 x Regular (Short) Brackets and Screws for Two-post Rack Mount (for Front Posts) Allowing for Mounting with Ports on the Back, or Ports On the Front of the Rack 2 x Longer Brackets for Two-post Rack Mount (for Front Posts) Recessing the Switch by 2 Inches in Order to Make Room for the Cabling |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Thailand |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the total PoE budget of this switch?
The Netgear M4250-26G4F-PoE++ switch provides a total PoE budget of 1.44 kilowatts (1440 watts). This substantial power allocation supports multiple high-power devices simultaneously, such as PTZ cameras, wireless access points, and digital signage displays, without requiring separate power supplies for each connected device.
How many SFP expansion slots does this switch have?
This switch includes four SFP (mini-GBIC) expansion slots for fiber optic connectivity. These slots support 1000Base-X technology, enabling connections to fiber backbones, extended distance links beyond copper limitations, or high-speed uplinks to other network equipment in your infrastructure.
What does Layer 3 support mean for this switch?
Layer 3 support indicates this switch can perform routing functions in addition to basic switching. This enables features like inter-VLAN routing, quality of service policies based on IP addresses, and more sophisticated traffic management than Layer 2 switches provide, making it suitable for scalable network designs that require segmentation and efficient traffic flow between different network segments.
Can this switch be mounted in a standard rack?
Yes, this switch is designed for 1U rack mounting and includes all necessary hardware for installation. The package contains both regular and longer mounting brackets that accommodate different rack configurations, including options for front or rear port orientation and recessed mounting that provides additional space for cable management behind the switch.
What type of power supplies does this switch use?
The switch includes two installed power supplies that provide redundancy and reliability. These internal power supplies connect via standard C14 power connectors and work together to deliver the switch's operational power while providing backup capability if one supply were to fail, ensuring continuous operation for critical network applications.
What console connectivity options are included?
The switch ships with both serial and USB console cables for management connectivity. Specifically, it includes a serial console cable with DB9 connector for traditional serial port connections and a USB Type-C to USB-A 2.0 console cable for modern computers without serial ports, providing flexible out-of-band management options for initial configuration and troubleshooting.
