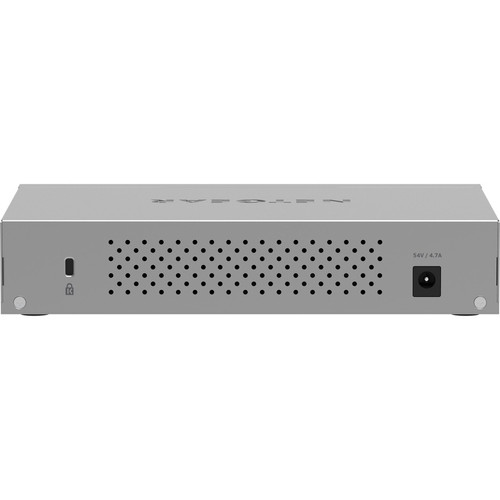

Netgear MS108EUP-100NAS 8-Port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch - Layer 3 Easy Smart Managed - 230W PoE Budget
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, enabling advanced routing capabilities and improved network segmentation for enhanced performance and security. It supports a comprehensive set of networking standards including IEEE 802.3af/at/bt for PoE, IEEE 802.3ad for link aggregation, and IEEE 802.1Q for VLAN tagging, ensuring compatibility with a wide range of network devices and protocols.
The 2.5GBase-T technology provides multi-gigabit speeds over standard twisted-pair cabling, offering a cost-effective upgrade path from traditional Gigabit Ethernet without requiring fiber infrastructure. The Easy Smart Managed interface allows for intuitive configuration of features like QoS, VLANs, and port mirroring, making it accessible for IT administrators of all skill levels.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MS108EUP-100NAS combines high-speed connectivity with substantial power delivery in a compact, versatile form factor. Its 230W PoE++ budget supports the latest high-power devices, while the Layer 3 capabilities provide the flexibility needed for growing networks.
High Power PoE++
Delivers up to 60W per port (PoE++) to power demanding devices like PTZ cameras, high-performance access points, and thin clients, reducing cable clutter and installation costs.
- 230W total budget
- Supports IEEE 802.3bt
- Backward compatible with PoE/PoE+
Multi-Gigabit Performance
2.5 Gigabit Ethernet ports provide a significant speed boost over standard Gigabit, ideal for bandwidth-intensive applications without requiring fiber upgrades.
- 2.5GBase-T technology
- Works with Cat5e/Cat6 cabling
- Full duplex on all ports
Advanced Management
Easy Smart Managed interface offers essential business features without the complexity of fully managed switches, including VLANs, QoS, and link aggregation.
- Web-based configuration
- SNMP monitoring
- IGMP snooping
Deployment / Use Cases
This switch is ideal for small to medium-sized businesses, retail environments, and educational institutions that require reliable, high-speed networking with integrated power delivery. Its compact size and wall-mount capability make it suitable for space-constrained locations like wiring closets, retail counters, or classroom walls.
Common deployments include powering and connecting IP surveillance systems with multiple high-resolution cameras, supporting high-density Wi-Fi 6/6E access points in office environments, and providing backbone connectivity for VoIP phone systems in call centers or hospitality settings.
IP Surveillance Networks
Power and connect multiple high-resolution IP cameras with PoE++, reducing installation complexity and ensuring reliable operation for security systems.
High-Density Wireless
Support modern Wi-Fi 6/6E access points with multi-gigabit backhaul and PoE++ power, enabling fast, reliable wireless connectivity for offices and campuses.
Physical Profile
The switch features a compact metal chassis measuring 8.27" (210 mm) wide, 5.51" (140 mm) deep, and 1.57" (40 mm) high, with a weight of approximately 1.98 lb (900 g). This slim profile allows for flexible placement in various environments. The included wall installation kit and rubber feet provide multiple mounting options, while the metal construction ensures durability and effective heat dissipation for reliable operation in demanding conditions.
- Width
- 8.27" (210 mm)
- Depth
- 5.51" (140 mm)
- Height
- 1.57" (40 mm)
- Weight
- 1.98 lb (900 g)
What's in the Box
The package includes everything needed for immediate deployment and installation.
Highlights
- 8 x 2.5 Gigabit Ethernet PoE++ ports for high-speed connectivity
- 230W total PoE budget supports power-hungry devices
- Layer 3 switching for advanced routing and network segmentation
- Easy Smart Managed interface with web-based configuration
- Compact metal chassis with wall-mount and desktop placement options
- Supports comprehensive IEEE networking standards
- 2.5GBase-T technology works with existing twisted-pair cabling
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | MS108EUP-100NAS |
| Brand Name | Netgear |
| Product Model | MS108EUP |
| Product Name | 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE++ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network Technology | 2.5GBase-T |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.1p,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1Q,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| Management & Protocols | |
| Switch Management Type | Easy Smart Managed |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 230 W |
| Power Source | Power Adapter |
| Number of Power Supplies Installed | 1 |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Wall Mountable,Desktop |
| Height | 1.57" (40 mm) |
| Width | 8.27" (210 mm) |
| Depth | 5.51" (140 mm) |
| Weight (Approximate) | 1.98 lb (900 g) |
| Miscellaneous | |
| Package Contents | 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Power Adapter (Power Cable Varies by Region) Wall Installation Kit Rubber Feet Installation Guide |
| Country of Origin | Thailand |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the total PoE budget of this switch?
The Netgear MS108EUP-100NAS has a total PoE budget of 230 watts, which can be distributed across its eight PoE++ ports. This substantial power allocation supports high-demand devices such as PTZ cameras, high-performance wireless access points, and thin clients that require up to 60W per port under the IEEE 802.3bt (PoE++) standard.
Does this switch support Layer 3 functionality?
Yes, this is a Layer 3 switch that supports advanced routing capabilities including static routing and basic routing protocols. Layer 3 functionality allows for improved network segmentation, better traffic management between subnets, and enhanced security through inter-VLAN routing without requiring a separate router for internal network traffic.
What type of management interface does this switch offer?
The switch features an Easy Smart Managed interface that provides essential business-grade management capabilities through a web-based configuration portal. This includes VLAN configuration, Quality of Service (QoS) settings, link aggregation, port mirroring, and SNMP monitoring, making it suitable for networks that need more control than unmanaged switches but less complexity than fully managed alternatives.
Can this switch be wall-mounted?
Yes, the switch is designed for both desktop and wall-mount installation. The package includes a wall installation kit with mounting brackets and hardware, along with rubber feet for desktop placement. The compact dimensions of 8.27" wide x 5.51" deep x 1.57" high make it ideal for space-constrained locations like wiring closets, retail environments, or classroom walls.
What networking standards does this switch support?
The switch supports a comprehensive set of IEEE standards including 802.3af/at/bt for PoE, 802.3ad for link aggregation, 802.1Q for VLAN tagging, 802.1p for QoS prioritization, 802.3az for energy efficiency, and 802.3x for flow control. This ensures compatibility with a wide range of network devices and protocols in mixed-vendor environments.
What is included in the warranty for this product?
Netgear provides a lifetime warranty for this switch, covering defects in materials and workmanship for the product's lifetime. This warranty demonstrates the manufacturer's confidence in the product's durability and reliability, providing long-term peace of mind for business deployments where network uptime is critical.
