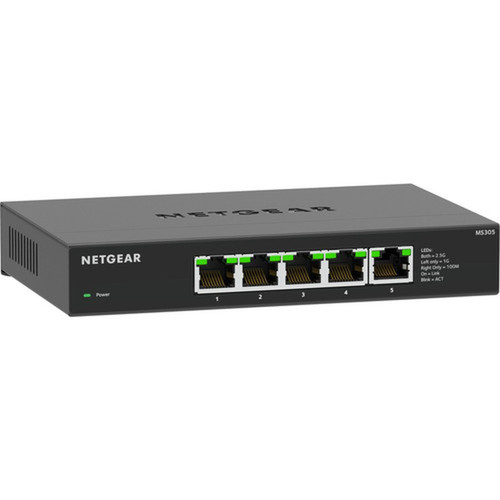

Netgear MS305-100NAS 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch - 2.5GBase-T Layer 2 Desktop/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch implements 2.5GBase-T technology, supporting data transfer rates up to 2.5 Gbps per port over standard twisted pair cabling with distances up to 100 meters. The five auto-negotiating, auto-MDI/MDIX ports simplify connectivity by automatically detecting and adjusting to connected devices, eliminating the need for crossover cables.
Comprehensive IEEE standards compliance ensures interoperability with existing network infrastructure. The switch supports IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.3 (10BASE-T), IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.1p (priority tagging), and IEEE 802.3x (flow control) protocols. The unmanaged design means zero configuration is required—simply connect devices and the switch begins forwarding traffic immediately.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MS305-100NAS delivers Multi-Gigabit performance in an accessible, cost-effective package that requires no networking expertise to deploy. Its combination of speed, simplicity, and physical flexibility addresses common pain points in small network environments.
Multi-Gigabit Ready
Future-proof your network with 2.5 Gbps ports that support existing Gigabit devices while providing headroom for faster NAS systems, workstations, and emerging connected devices.
- Backward compatible with 1000BASE-T, 100BASE-TX, and 10BASE-T
- No speed bottlenecks for high-bandwidth applications
- Ideal for connecting to Multi-Gigabit routers and access points
Silent Operation
The fanless design ensures completely silent operation, making the switch suitable for noise-sensitive environments like offices, studios, and living spaces where traditional cooling fans would be disruptive.
- Zero moving parts for enhanced reliability
- Reduced maintenance requirements
- Lower acoustic footprint in workspace environments
Deployment / Use Cases
This switch excels in scenarios where simple, reliable wired connectivity expansion is needed without the complexity or cost of managed switching. Its compact form factor and versatile mounting options support diverse installation requirements.
Small business networks benefit from connecting multiple workstations, printers, and network-attached storage devices with improved bandwidth for file transfers and backup operations. Home offices can create dedicated wired connections for computers, gaming consoles, and media streaming devices while maintaining clean cable management. Retail environments appreciate the wall-mount capability for discreet installation behind counters or in tight spaces where rack mounting isn't practical.
Office Network Expansion
Add wired ports to conference rooms, reception areas, or departmental workgroups where wireless coverage may be inconsistent or security requirements favor physical connections.
Media & Creative Workflows
Support high-resolution video editing, large file transfers, and collaborative projects by providing Multi-Gigabit connectivity between workstations and shared storage resources.
Physical Profile
Measuring 6.22" wide × 3.98" deep × 1.14" high (158 × 101 × 29 mm), the switch occupies minimal desk space while the metal construction provides durability and effective heat dissipation. The included rubber feet prevent sliding on smooth surfaces, and the wall installation kit enables vertical mounting to conserve horizontal space.
The compact dimensions and 1.06 lb weight make the switch easily portable for temporary deployments or relocation between sites. The enclosure design supports both standalone desktop placement and secured mounting in environments where equipment needs to be kept out of reach or organized neatly.
- Width
- 6.22" (158 mm)
- Depth
- 3.98" (101 mm)
- Height
- 1.14" (29 mm)
- Weight
- 1.06 lb (480 g)
What's in the Box
The package includes everything needed for immediate deployment in various installation scenarios.
Highlights
- Five 2.5 Gigabit Ethernet ports for Multi-Gigabit network performance
- Unmanaged design for plug-and-play operation with zero configuration required
- Layer 2 switching support for enhanced network efficiency and basic security
- Fanless metal construction ensures silent, reliable operation
- Desktop and wall-mountable form factor for flexible deployment options
- Supports standard twisted pair cabling with 100-meter reach per port
- Comprehensive IEEE standards compliance for broad interoperability
- Compact dimensions (6.22" × 3.98" × 1.14") fit in tight spaces
- 3-year limited warranty for long-term peace of mind
- Includes complete installation accessories for immediate deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | MS305-100NAS |
| Brand Name | Netgear |
| Product Model | MS305 |
| Product Name | 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x 2.5 Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network Technology | 2.5GBase-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3az,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.1p,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Switch Management Type | Unmanaged Essentials |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 9.24 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Wall Mountable,Enclosure |
| Height | 1.14" (29 mm) |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Weight (Approximate) | 1.06 lb (480 g) |
| Miscellaneous | |
| Package Contents | 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch Power Adapter Wall Installation Kit Rubber Feet Installation Guide |
| Country of Origin | Thailand |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum speed supported by each port on this switch?
Each of the five RJ-45 ports supports 2.5 Gigabit Ethernet (2.5 Gbps) using 2.5GBase-T technology. The ports are backward compatible with standard Gigabit Ethernet (1000BASE-T), Fast Ethernet (100BASE-TX), and even 10BASE-T connections, automatically negotiating to the highest speed supported by connected devices.
Does this switch support Power over Ethernet (PoE)?
No, the Netgear MS305-100NAS does not provide Power over Ethernet. It is a standard Ethernet switch that requires connected devices to have their own power sources. For PoE capabilities, you would need to select a different switch model specifically designed with PoE functionality.
What does 'Layer 2 support' mean for this unmanaged switch?
Layer 2 support refers to data link layer functionality in the OSI network model. This switch performs basic MAC address learning and forwarding, creating a more efficient network by directing traffic only to the appropriate ports rather than broadcasting to all connected devices. While it doesn't offer advanced managed features, Layer 2 operation provides better performance and basic traffic isolation compared to simple hub-like devices.
Can this switch be mounted in a server rack?
The switch is designed primarily for desktop or wall mounting rather than standard rack installation. It includes a wall installation kit for vertical mounting but does not have rack ears or a rack-mountable form factor. For rack deployment, you would need to use a shelf or alternative mounting solution to accommodate its compact desktop enclosure design.
What type of cables does this switch work with?
The switch works with standard twisted pair Ethernet cables (CAT5e, CAT6, CAT6a, or higher) using RJ-45 connectors. It supports cable lengths up to 100 meters (328 feet) per the 2.5GBase-T specification. The auto-MDI/MDIX feature eliminates the need for crossover cables—any standard straight-through patch cable will work for connecting devices.
How is this switch different from a managed switch?
This unmanaged switch operates as a plug-and-play device with no configuration interface or management capabilities. It automatically handles network traffic without VLANs, QoS, port configuration, or monitoring features. Managed switches offer those advanced controls for network segmentation, traffic prioritization, and security policies but require setup and administration. The unmanaged design makes this switch ideal for simple network expansion where advanced features aren't needed.
