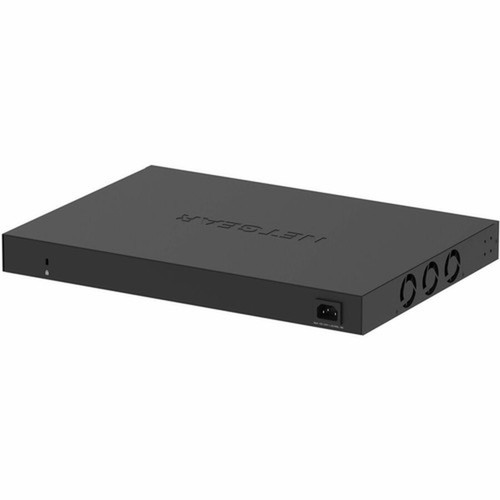

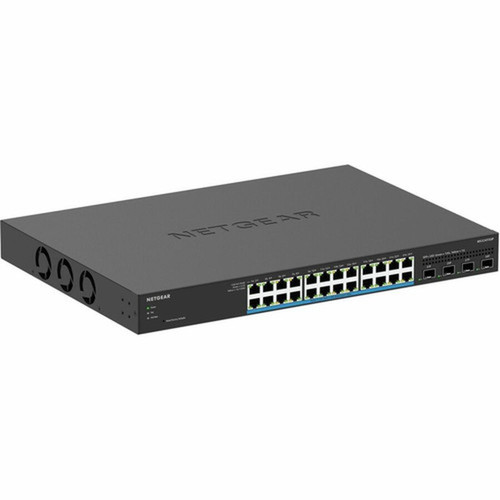

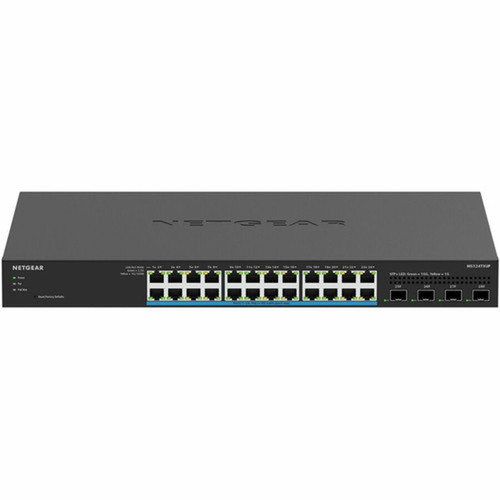

Netgear MS324TXUP-100NAS 24-Port Multi-Gigabit (2.5G) Ultra60 PoE++ Smart Switch with 4 SFP+ Ports
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch delivers comprehensive networking capabilities through its 24 multi-gigabit ports that support 2.5GBase-T technology, providing higher bandwidth than traditional Gigabit Ethernet while maintaining compatibility with existing Cat5e/Cat6 cabling infrastructure. The integrated 720W PoE++ budget supports the latest high-power devices requiring up to 60W per port.
The four SFP+ slots enable 10 Gigabit fiber or copper uplinks for connecting to core switches or servers, while the built-in power supply ensures stable operation. Smart managed features include VLAN support, QoS, link aggregation, and comprehensive security protocols through IEEE 802.1x authentication.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch stands out with its combination of multi-gigabit connectivity, high-power PoE++ delivery, and flexible deployment options. The Ultra60 PoE++ capability future-proofs your network by supporting the latest high-power devices, while the 2.5GBase-T technology provides immediate performance benefits without requiring complete cable infrastructure upgrades.
High-Power PoE++
Delivers up to 60W per port with a total 720W budget, supporting demanding devices like advanced access points, pan-tilt-zoom cameras, and digital signage.
- IEEE 802.3bt compliant
- Backward compatible with PoE/PoE+
- Auto-sensing power delivery
Multi-Gigabit Performance
Provides 2.5GBase-T connectivity that doubles traditional Gigabit speeds while maintaining compatibility with existing Cat5e/Cat6 cabling up to 100 meters.
- Supports twisted pair and fiber media
- 10 Gigabit uplink capability
- Energy efficient Ethernet (IEEE 802.3az)
Deployment / Use Cases
This switch is ideal for medium to large business environments requiring both high-speed connectivity and substantial power delivery. Its flexible form factor supports rack mounting in wiring closets, desktop placement in office areas, or tabletop installation in temporary deployment scenarios.
Common deployment scenarios include supporting high-density wireless networks with the latest Wi-Fi 6/6E access points, powering comprehensive security camera systems with PTZ capabilities, and connecting high-performance workstations in creative or engineering environments.
Enterprise Wireless Deployment
Power and connect multiple Wi-Fi 6/6E access points with 2.5G backhaul and PoE++ power from a single switch, reducing cable runs and simplifying network architecture.
Security & Surveillance Systems
Support advanced IP camera systems with pan-tilt-zoom functionality and high-resolution streaming, delivering both data connectivity and up to 60W power per camera.
Physical Profile
The switch features a compact 1U form factor measuring 1.69" high, 12.20" wide, and 17.32" deep, making it suitable for standard 19-inch rack installations. Multiple mounting options include rack mounting with included brackets, desktop placement with rubber footpads, or tabletop installation for temporary deployments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.69" (43 mm), 12.20" (310 mm), 17.32" (440 mm), 9.78 lb (4436.13 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12.20" (310 mm)
- Depth
- 17.32" (440 mm)
- Height
- 1.69" (43 mm)
- Weight
- 9.78 lb (4436.13 g)
What's in the Box
The package includes everything needed for immediate deployment in various installation scenarios.
Highlights
- 24 multi-gigabit (2.5G) Ethernet ports with Ultra60 PoE++ support
- 720W total PoE budget for high-power device deployment
- Four SFP+ slots for 10 Gigabit fiber or copper uplinks
- Layer 4 switching with advanced traffic management capabilities
- Smart managed features including VLAN, QoS, and link aggregation
- Flexible deployment: rack-mountable, desktop, or tabletop
- Supports comprehensive IEEE networking standards
- 5-year limited warranty for long-term reliability
- Built-in power supply with 765W power consumption
- Compact 1U form factor for space-efficient installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | MS324TXUP-100NAS |
| Brand Name | Netgear |
| Product Model | MS324TXUP |
| Product Name | 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x 2.5 Gigabit Ethernet Ultra60 PoE++,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 2.5GBase-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.1x,IEEE 802.1p,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 720 W |
| Power Source | Power Supply |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 765 W |
| Physical Characteristics | |
| Form Factor | Desktop,Rack-mountable,Table Top |
| Height | 1.69" (43 mm) |
| Width | 12.20" (310 mm) |
| Depth | 17.32" (440 mm) |
| Weight (Approximate) | 9.78 lb (4436.13 g) |
| Miscellaneous | |
| Package Contents | 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports Power Cord Mounting Kit Rack Mount Rubber Footpads for Tabletop Installation Installation Guide |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the total PoE budget of this switch?
This Netgear switch provides a 720W total PoE budget, supporting Ultra60 PoE++ (IEEE 802.3bt) across all 24 ports. This substantial power allocation enables simultaneous operation of multiple high-power devices such as advanced Wi-Fi 6/6E access points, pan-tilt-zoom security cameras, and digital signage displays without requiring separate power injectors or additional power supplies.
How many SFP+ ports does this switch have?
The MS324TXUP-100NAS includes four SFP+ expansion slots that support 10 Gigabit Ethernet connectivity. These slots accommodate either fiber or copper SFP+ transceivers, providing flexible uplink options to connect to core switches, servers, or other network infrastructure while maintaining compatibility with existing cabling and transceiver investments.
What network layer does this switch support?
This is a Layer 4 smart managed switch, providing advanced traffic classification and quality of service capabilities beyond basic Layer 2/3 switching. Layer 4 support enables application-aware traffic management, bandwidth limiting per application or user, and enhanced security features that are particularly valuable in multi-tenant or multi-business unit environments where traffic isolation and prioritization are critical.
Can this switch be rack-mounted?
Yes, the switch is designed for flexible deployment with support for rack mounting, desktop placement, and tabletop installation. It includes a complete mounting kit for standard 19-inch rack installation, maintaining a compact 1U form factor that conserves valuable rack space while providing comprehensive connectivity and power delivery capabilities.
What type of management capabilities does this switch offer?
As a smart managed switch, it provides comprehensive management features including web-based configuration, VLAN support for network segmentation, quality of service (QoS) for traffic prioritization, link aggregation for bandwidth combining, and security features through IEEE 802.1x authentication. These capabilities offer greater control over network setup and configuration compared to unmanaged switches.
What is included in the warranty coverage?
Netgear provides a 5-year limited warranty for this switch, offering long-term protection and support for business deployments. This extended warranty period reflects the product's reliability and is particularly valuable for organizations planning multi-year network infrastructure investments where consistent performance and manufacturer support are essential considerations.
