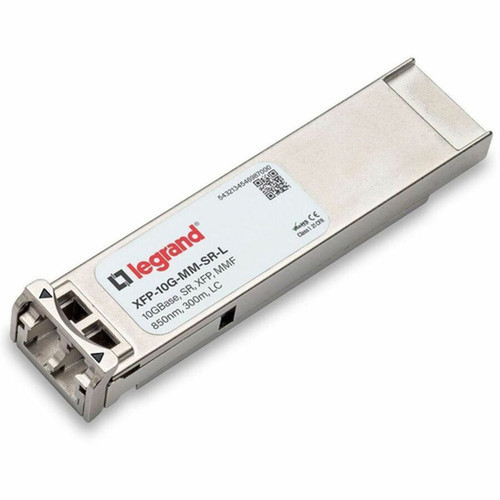

Ortronics XFP-10G-MM-SR-OP Cisco XFP Module - 10GbE LC Duplex SR Multimode 0. 30 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built for 10 Gigabit Ethernet networks, this XFP module operates at a maximum data transfer rate of 10 Gbit/s using 10GBase-SR technology. It connects via a single LC duplex port, transmitting over multimode optical fiber with a reach of up to 0.30 km (0.19 mile).
The module supports optical network and data networking applications, providing the bandwidth needed for aggregation, server connectivity, and storage area networks. Its design adheres to XFP MSA specifications, ensuring interoperability with compliant network equipment.
Key Product Advantages
This transceiver offers a balance of performance, compatibility, and reliability for 10GbE network upgrades. Its SR (Short Reach) optics are optimized for cost-effective multimode fiber deployments within data centers and campus environments.
High-Speed Connectivity
Enables 10 Gbps full-duplex data transfer, reducing bottlenecks and improving network throughput for demanding applications.
- 10GBase-SR compliance
- 10 Gbit/s maximum rate
- Low-latency optical transmission
Broad Compatibility
Designed for Cisco network equipment and compatible with a wide range of switches, routers, and servers that support XFP interfaces.
- Cisco-coded platform
- Hot-pluggable for easy installation
- Industry-standard form factor
Deployment / Use Cases
Ideal for extending 10GbE connectivity across data centers, enterprise networks, and high-performance computing clusters. The module's 0.30 km reach suits intra-building and campus backbone links where multimode fiber is already deployed.
Common applications include connecting top-of-rack switches to aggregation layers, linking servers to storage arrays, and upgrading network core links. Its compatibility with switches, routers, and servers makes it a versatile component for network expansion and modernization projects.
Data Center Interconnects
Use for short-reach connections between racks or within a server room, leveraging existing multimode fiber infrastructure.
Network Aggregation
Deploy in switch uplinks to consolidate traffic from multiple 1GbE ports into a high-bandwidth 10GbE backbone.
Physical Profile
The module measures 0.33" (8.50 mm) in height, 0.72" (18.35 mm) in width, and 3.07" (78 mm) in depth, conforming to the compact XFP form factor. Its small footprint allows high-density installations in network equipment without occupying excessive space. The RoHS-compliant construction ensures environmental responsibility, and the lifetime warranty provides long-term reliability assurance.
- Width
- 0.72" (18.35 mm)
- Depth
- 3.07" (78 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- 10 Gigabit Ethernet XFP optical transceiver for 10GBase-SR networks
- LC duplex connector interface for reliable multimode fiber connections
- Maximum data transfer rate of 10 Gbit/s for high-bandwidth applications
- Supports multimode fiber with a reach of up to 0.30 km (0.19 mile)
- Hot-pluggable design for easy installation and replacement
- Compatible with Cisco switches, routers, and servers
- Compact dimensions: 0.33" H x 0.72" W x 3.07" D
- RoHS compliant and backed by a lifetime warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | XFP-10G-MM-SR-OP |
| Brand Name | Ortronics |
| Product Name | Cisco XFP Module |
| Product Type | XFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-SR |
| Maximum Distance Supported | 0.30 km (0.19 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.72" (18.35 mm) |
| Depth | 3.07" (78 mm) |
| Miscellaneous | |
| Compatibility | Switches Routers Servers |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of optical transceiver is this module?
This is an XFP (10 Gigabit Small Form-factor Pluggable) optical transceiver module. It supports the 10GBase-SR standard for 10 Gigabit Ethernet over multimode fiber, providing a hot-pluggable interface for network equipment upgrades.
What connector and fiber type does this XFP module use?
The module uses an LC duplex connector for optical fiber connections. It is designed for multimode fiber, which is commonly used in data centers for short-reach links up to 0.30 km (0.19 mile).
What is the maximum data transfer rate and reach distance?
This XFP module supports a maximum data transfer rate of 10 Gbit/s using 10 Gigabit Ethernet technology. Its maximum reach is 0.30 km (0.19 mile) over multimode fiber, making it suitable for intra-building and campus network connections.
Is this module compatible with Cisco network equipment?
Yes, this Ortronics XFP module is coded for Cisco platforms and is compatible with Cisco switches, routers, and servers that support XFP interfaces. It is designed as a drop-in replacement for original Cisco 10GBase-SR XFP modules.
