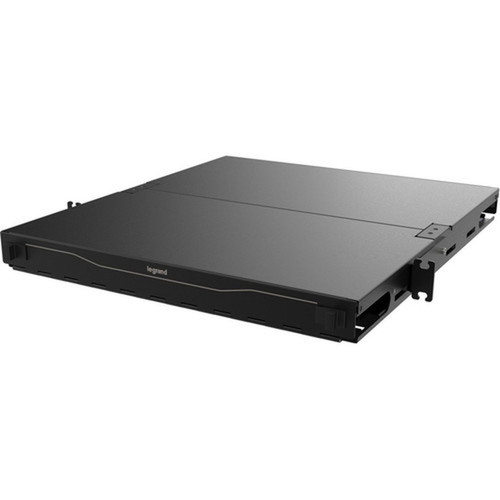

Ortronics EQ01U-CHC Q-Series 1U Rackmount Enclosure - Enclosed Cabinet for Fiber Optic Cable Manager - Patch Panel - Networking - Cassette
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The EQ01U-CHC features a 1U rack height, fitting standard 19-inch rack spaces with dimensions of 1.75 inches in height, 17.30 inches in width, and 19.13 inches in depth. Its steel construction ensures structural integrity and longevity, with a weight of approximately 12 pounds for stable mounting.
The enclosure is designed as an enclosed cabinet, providing full coverage on all sides for enhanced protection. It includes a removable panel for convenient access, supporting applications such as fiber optic cable management, patch panel housing, networking equipment installation, and cassette storage.
This section brings together practical product details such as Rack Type, Application/Usage, Features, Form Factor, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This rackmount enclosure delivers reliable organization and protection for critical networking and fiber optic components. Its design prioritizes durability, accessibility, and professional integration into rack environments.
Robust Construction
Built from steel, the enclosure offers strong physical protection and long-term durability in demanding environments.
- Resists impact and wear
- Maintains shape under load
- Professional-grade finish
Optimized Accessibility
The removable panel allows quick access to internal components without dismounting the entire enclosure, streamlining maintenance and upgrades.
- Easy installation and reconfiguration
- Reduces downtime during servicing
- Supports frequent adjustments
Space-Efficient Design
With a 1U height, the enclosure maximizes rack space utilization while providing full enclosure benefits, ideal for dense deployments.
- Fits standard 19-inch racks
- Minimizes footprint
- Integrates with existing rack layouts
Deployment / Use Cases
The Ortronics EQ01U-CHC is suited for environments requiring organized, protected mounting of fiber optic and networking equipment. Its enclosed cabinet design makes it ideal for secure installations where equipment needs shielding from environmental factors or physical interference.
Common deployments include data centers for housing fiber optic cable managers and patch panels, telecom rooms for networking cassettes, and enterprise server racks for structured cabling components. The enclosure helps maintain cable discipline, reduces clutter, and protects sensitive connections from accidental damage.
Fiber Optic Cable Management
Organize and protect fiber optic cables, splice trays, and adapters within a dedicated enclosure, ensuring proper bend radius and strain relief.
Patch Panel Housing
Securely mount patch panels for copper or fiber connections, providing a clean interface for network terminations and easy access for patching.
Physical Profile
The enclosure measures 1.75 inches in height, 17.30 inches in width, and 19.13 inches in depth, fitting standard 19-inch rack widths. Its 1U height allows efficient use of vertical rack space, while the steel construction and black finish ensure a professional appearance that blends with most rack environments. The enclosed cabinet design includes solid sides, top, and bottom for full protection, with a removable front or rear panel (as applicable) for access.
- Width
- 17.30" (439.42 mm)
- Depth
- 19.13" (485.90 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 12 lb (5443.11 g)
Highlights
- 1U rack height for space-efficient mounting in standard 19-inch racks
- Enclosed cabinet design provides full protection against dust and physical contact
- Steel construction ensures durability and long-term reliability
- Black finish offers a professional, low-profile appearance
- Removable panel allows easy access for installation and maintenance
- Supports fiber optic cable managers, patch panels, networking equipment, and cassettes
- Dimensions: 1.75" H x 17.30" W x 19.13" D (44.45 mm x 439.42 mm x 485.90 mm)
- Weight: 12 lb (5443.11 g) for stable rack mounting
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | EQ01U-CHC |
| Brand Name | Ortronics |
| Product Series | Q |
| Product Name | Q-Series Rackmount Enclosure |
| Product Type | Rack Mount Enclosure |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | Fiber Optic Cable Manager,Patch Panel,Networking,Cassette |
| Features | Removable Panel |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Height | 1.75" (44.45 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 19.13" (485.90 mm) |
| Rack Height | 1U |
| Weight (Approximate) | 12 lb (5443.11 g) |
| Miscellaneous | |
| Country of Origin | China |
User Manual
FAQ
What is the rack height of the Ortronics EQ01U-CHC enclosure?
The Ortronics EQ01U-CHC has a 1U rack height, meaning it occupies one rack unit of vertical space in a standard 19-inch rack. This compact size allows efficient use of rack real estate while providing full enclosure protection for housed equipment.
What materials is this rackmount enclosure constructed from?
This enclosure is built from steel, offering robust physical protection and durability. The steel construction ensures the enclosure maintains its shape under load and provides long-term reliability in data center or telecom environments.
What types of equipment can be installed in this enclosure?
The enclosure is designed for fiber optic cable managers, patch panels, networking equipment, and cassettes. It supports organized mounting and protection of these components, making it suitable for structured cabling and network infrastructure deployments.
Does the enclosure have any accessibility features?
Yes, it includes a removable panel that allows easy access to internal components without removing the entire enclosure from the rack. This feature simplifies installation, maintenance, and reconfiguration of housed equipment.
What are the dimensions and weight of this enclosure?
The enclosure measures 1.75 inches in height, 17.30 inches in width, and 19.13 inches in depth (44.45 mm x 439.42 mm x 485.90 mm). It weighs approximately 12 pounds (5443.11 grams), providing a stable, secure mount in standard racks.
Is this enclosure suitable for data center use?
Yes, the Ortronics EQ01U-CHC is well-suited for data centers, server rooms, and telecom closets. Its enclosed cabinet design protects equipment from dust and accidental contact, while the 1U height and steel construction meet typical data center requirements for durability and space efficiency.
