Plugable UD-6950PDH USB-C Docking Station - Dual 4K 60Hz Monitor Support - 14-in-1 Ports - 100W Charging for Mac M1/M2/M3 & Windows
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the UD-6950PDH utilizes DisplayLink technology to drive two independent 4K displays at 60Hz through its dual HDMI and dual DisplayPort outputs. This allows for extended desktop configurations on compatible systems, including Apple M-series MacBooks that typically limit external monitor support.
The dock connects via a single USB-C host cable, supporting Thunderbolt, USB4, and USB-C protocols. It features a total of five USB 3.0 ports for peripherals, a Gigabit Ethernet port for stable wired networking, and separate SD and microSD card readers. A 3.5mm audio jack is included for headsets or speakers.
Relevant factors for this section include Connectivity Technology, Number of Displays Supported, Supported Resolutions, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This docking station solves a critical pain point for users of modern laptops, particularly Apple Silicon Macs, by unlocking dual 4K monitor support without requiring hardware upgrades or complex adapters.
Expanded Display Capability
Enables two 4K monitors to run simultaneously at 60Hz, ideal for multitasking, creative work, and financial analysis where screen real estate is crucial.
- Uses DisplayLink drivers to bypass native GPU limitations
- Supports HDMI and DisplayPort connections without dongles
Simplified Connectivity Hub
Consolidates up to 14 devices into a single connection, reducing desktop clutter and improving workflow efficiency.
- Includes fast data ports, Ethernet, and card readers
- Front-facing USB-C and USB-A ports for easy access
High-Power Charging
Delivers 100W of power to your laptop, ensuring it remains charged during demanding tasks, which is essential for all-day productivity.
- Powers most modern laptops via USB-C PD
- Eliminates the need for a separate power brick
Deployment / Use Cases
The UD-6950PDH is tailored for hybrid and traditional office environments where professionals require a reliable, single-cable docking solution. It seamlessly integrates into hot-desking setups, home offices, and corporate workstations.
Creative professionals using M-series MacBooks for video editing or graphic design will benefit from the dual 4K monitor support, enhancing their visual workspace. IT departments can standardize on this dock for its broad compatibility with Windows, macOS, and ChromeOS systems, simplifying support and deployment.
MacBook Productivity Station
Ideal for MacBook Air, MacBook Pro, and MacBook users running macOS 11 or later who need to connect multiple monitors, peripherals, and wired internet through one port.
Windows Hybrid Workspace
Perfect for Windows 10/11 laptops in flexible work arrangements, providing instant desk connectivity with monitor support, fast data transfer, and network access.
Physical Profile
The dock features a compact and low-profile design measuring 8.90" in width and just 1" in height, allowing it to fit neatly under a monitor or on a desk without occupying significant space. Its aluminum construction offers a robust feel and aids in heat dissipation during continuous operation. The modest weight of 1.02 pounds makes it portable enough for users who move between worksites.
- Width
- 8.90" (226.06 mm)
- Height
- 1" (25.40 mm)
- Weight
- 1.02 lb (464.93 g)
Highlights
- Enables dual 4K monitor setups at 60Hz for MacBooks with M1, M2, or M3 chips
- Utilizes DisplayLink technology to overcome native display limitations on compatible systems
- Provides 100W of power delivery to charge your laptop while docked

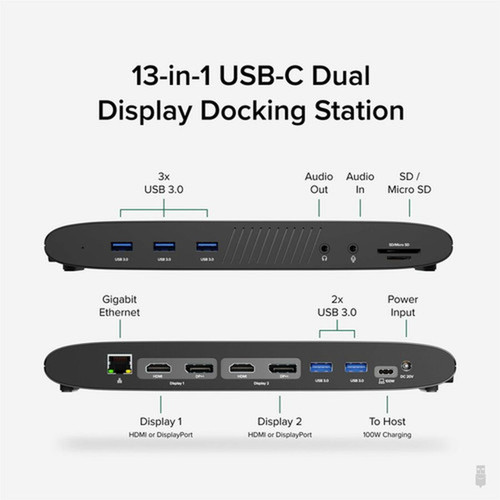

- Includes 14 total ports: 2x HDMI, 2x DisplayPort, 5x USB 3.0, Ethernet, and card readers
- Features a premium aluminum housing with a space gray finish for durability and style
- Compatible with macOS 11+, Windows 10+, and ChromeOS 100+ via USB-C, USB4, or Thunderbolt
- Offers front-facing USB-C and USB-A ports for convenient accessory connection
- Backed by a 2-year warranty and lifetime technical support from Plugable
Specifications
| Specifications | |
|---|---|
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | UD-6950PDH |
| Brand Name | Plugable |
| Product Model | UD-6950PDH |
| Product Name | UD-6950PDH Docking Station |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| Memory Card Reader | Yes |
| Memory Card Supported | SD,microSD |
| Device Supported | Desktop PC,Notebook,Smartphone,Tablet PC,Monitor |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Number of USB 3.0 Ports | 5 |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort | Yes |
| Number of HDMI Ports | 2 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Software | |
| Operating System Supported | Windows,macOS |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Physical Characteristics | |
| Height | 1" (25.40 mm) |
| Width | 8.90" (226.06 mm) |
| Weight (Approximate) | 1.02 lb (464.93 g) |
FAQ
Does this docking station support dual 4K monitors on Apple M1/M2/M3 MacBooks?
Yes, the Plugable UD-6950PDH supports dual 4K monitors at 60Hz on Apple Silicon MacBooks (M1, M2, M3 series) by using DisplayLink technology. You must install the DisplayLink driver software, which allows the dock to bypass the native single-display limitation of these Macs, enabling an extended desktop across two 4K screens.
What is the maximum power delivery provided to the laptop?
The docking station delivers up to 100W of power via its USB-C host connection. This is sufficient to charge most modern laptops, including high-performance models, while they are connected and in use, eliminating the need for a separate power adapter.
Which operating systems are compatible with this dock?
The dock is compatible with macOS 11 or newer, Windows 10 or newer, and ChromeOS 100 or newer. Driver installation is required for DisplayLink functionality on macOS and Windows to enable multi-monitor support. It connects to hosts with USB-C, USB4, or Thunderbolt ports.
How many USB ports are available, and what are their speeds?
There are five USB 3.0 ports on the dock, providing data transfer speeds up to 5 Gbps. These ports are suitable for connecting peripherals such as external hard drives, keyboards, mice, and printers. Additionally, there is a front-facing USB-C port that supports data and charging.
Does the dock include Ethernet and memory card readers?
Yes, it includes a Gigabit Ethernet port for wired network connections, offering faster and more stable internet than Wi-Fi. It also has separate SD and microSD card readers, allowing direct access to media from cameras, drones, or other devices without needing a separate adapter.
What is the warranty and support coverage for this product?
Plugable provides a 2-year warranty against defects for the UD-6950PDH docking station. The company also offers lifetime technical support from its North American-based team, which you can contact for assistance with setup, compatibility, or troubleshooting before or after purchase.
