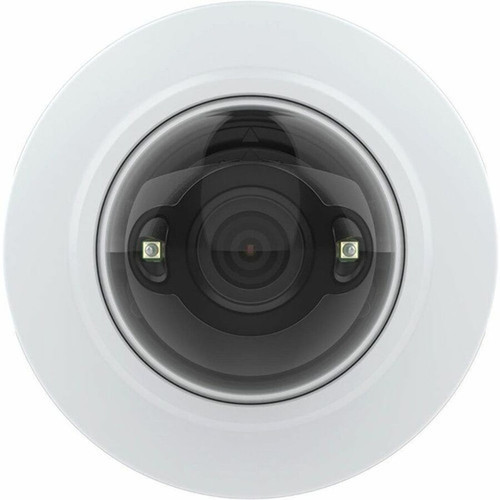

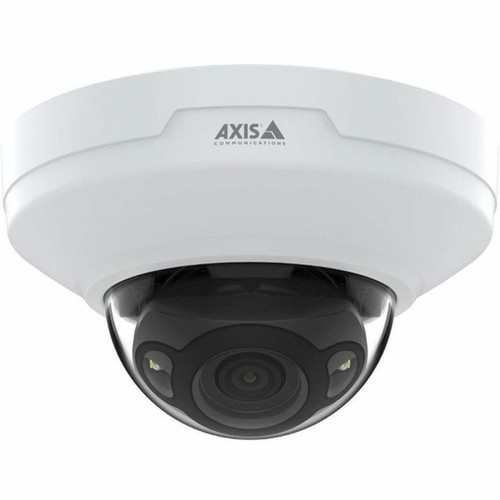

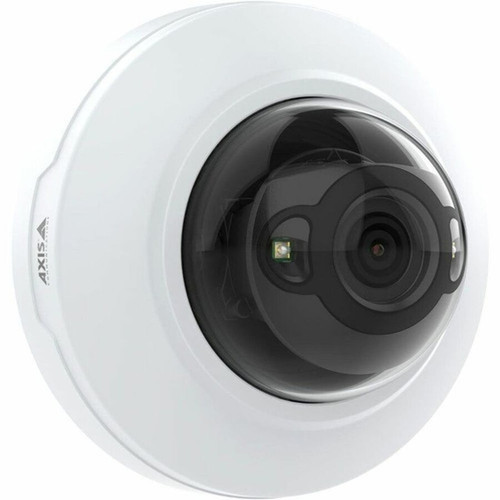

AXIS 02679-001 M4218-LV 8MP 4K Dome Network Camera - Color - Varifocal Lens - PoE - H. 264/H. 265/Motion JPEG
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the M4218-LV is a 1/2.8" RGB CMOS sensor that captures 8-megapixel imagery with accurate color reproduction. The camera's varifocal lens provides a focal length range from 3.5 mm to 6.6 mm, offering a 1.8x optical zoom and adjustable field of view from 93° wide to 47° narrow horizontally. This flexibility allows installers to fine-tune the camera's coverage area during setup without changing hardware.
Video processing leverages advanced codecs: H.264 (MPEG-4 Part 10/AVC) and H.265 (MPEG-H Part 2/HEVC) for efficient streaming and storage, alongside Motion JPEG for compatibility with legacy systems. The camera supports a comprehensive suite of network protocols including IPv4/IPv6, HTTPS, SNMP v1/v2c/v3, and MQTT, enabling seamless integration into existing IT and security infrastructures. Fast Ethernet connectivity ensures reliable data transmission, while built-in SD card support offers local storage redundancy.
Key Product Advantages
The AXIS M4218-LV combines high-resolution imaging with intelligent features to enhance surveillance effectiveness. Its 8MP sensor and 4K output provide exceptional detail for identifying faces, license plates, and other critical elements, while the 60 fps frame rate ensures smooth video playback without motion blur. The camera's wide dynamic range compensates for challenging lighting, such as backlit entrances or sunny windows, maintaining visibility across the entire scene.
Advanced Detection Capabilities
Built-in analytics include human detection, vehicle detection, cross line detection, and face detection, reducing false alarms and focusing attention on relevant events. These features enable proactive monitoring and efficient incident review.
- Human Detection
- Vehicle Detection
- Cross Line Detection
- Face Detection
Image Enhancement Technologies
2D and 3D noise reduction algorithms clean up video in low-light conditions, while PTZ (Pan/Tilt/Zoom) functionality supports digital adjustment of the viewing area. The camera's shutter speed ranges from 1/71500 to 1/5 second, accommodating fast-moving objects and varied illumination.
- 2D/3D Noise Reduction
- PTZ Support
- Wide Dynamic Range
Deployment / Use Cases
This dome camera is ideal for environments where discreet, high-quality monitoring is essential. Its IP42 rating provides protection against dust and water droplets, making it suitable for indoor use in areas like lobbies, corridors, and retail floors, as well as sheltered outdoor locations such as building entrances or covered parking lots. The PoE power method streamlines deployment in new or retrofit installations, minimizing the need for additional electrical wiring.
Common applications include perimeter security for commercial buildings, point-of-sale monitoring in retail stores, and general surveillance in schools or offices. The camera's advanced detection features make it particularly effective for traffic monitoring, crowd management, and access control scenarios. Integration with Axis camera station software or third-party VMS platforms allows for centralized management and scalable system expansion.
Retail Security
Monitor sales floors, entrances, and stockrooms with clear 4K video to deter theft and ensure staff safety. Human and vehicle detection can trigger alerts for unusual activity after hours.
Corporate & Institutional
Deploy in office lobbies, hallways, or parking garages to enhance security without obtrusive hardware. The dome design blends into ceilings, maintaining a professional aesthetic.
Physical Profile
The M4218-LV features a compact dome enclosure measuring 4.72 inches in diameter and 2.80 inches in height, designed for ceiling or wall mounting. Its low-profile shape minimizes visual impact while providing a degree of tamper resistance. The camera operates reliably in temperatures up to 104°F (40°C), ensuring performance in unconditioned spaces like attics or warehouses. Weighing just over 13 ounces, it is easy to handle during installation and places minimal load on mounting surfaces.
- Height
- 2.80" (71 mm)
- Weight
- 13.23 oz (375 g)
- Length
- 3.5 mm (0.14")
Highlights
- 8MP 4K resolution for detailed surveillance video
- Varifocal lens with 3.5-6.6 mm range and 1.8x optical zoom
- PoE (Power over Ethernet) for simplified installation
- Supports H.264, H.265, and Motion JPEG video formats
- Advanced analytics: human, vehicle, cross line, and face detection
- Wide dynamic range and 2D/3D noise reduction
- Fast Ethernet connectivity with comprehensive protocol support
- Dome form factor with IP42 rating for indoor/protected outdoor use
- SD card slot for local storage backup
- Remote management capabilities via network
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02679-001 |
| Brand Name | AXIS |
| Product Series | M42 |
| Product Model | M4218-LV |
| Product Name | M4218-LV Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Display & Graphics | |
| Image Sensor Type | RGB CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 93°-47° Vertical field of view: 50°-26° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),Motion JPEG,H.264,H.265 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.5 mm (0.14") |
| Maximum Focal Length | 6.6 mm (0.26") |
| Lens Included | Yes |
| Minimum Aperture | f/2.6 |
| Maximum Aperture | f/1.7 |
| Optical Zoom | 1.8x |
| Exposure | |
| Shortest Shutter Speed | 1/71500 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6,ICMPv4/ICMPv6,HTTPS,SFTP,SMTP,SNMP (v1/v2c/v3),DNS/DNSv6,DDNS,NTP,NTS,SRTP/RTSPS,UDP,IGMPv1/v2/v3,DHCP,ARP,CDP,MQTT |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Form Factor | Dome |
| Height | 2.80" (71 mm) |
| Diameter | 4.72" (120 mm) |
| Weight (Approximate) | 13.23 oz (375 g) |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Features | SD Card Local Storage,Wide Dynamic Range,PTZ,2D Noise Reduction,3D Noise Reduction,Human Detection,Vehicle Detection,Cross Line Detection,Face Detection |
| Ingress Protection Rating | IP42 |
User Manual
FAQ
What is the resolution and video quality of the AXIS M4218-LV camera?
The AXIS M4218-LV delivers 8-megapixel resolution at 3840 x 2160 (4K UHD), providing exceptionally detailed video for surveillance. It captures footage at up to 60 frames per second, ensuring smooth motion rendering without blur, which is critical for identifying fast-moving objects or individuals in security applications.
Does this camera support Power over Ethernet (PoE)?
Yes, the M4218-LV is powered via PoE, which allows both data and electrical power to be delivered through a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the camera, reducing wiring costs and enabling more flexible placement in ceilings or walls.
What type of lens does the camera have, and is it adjustable?
This camera features a varifocal lens with a focal length range from 3.5 mm to 6.6 mm, offering a 1.8x optical zoom. The lens is adjustable during installation, allowing you to fine-tune the field of view from a wide 93° angle down to a narrower 47° horizontally, optimizing coverage for specific areas without changing hardware.
What video compression formats are supported?
The M4218-LV supports H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), and Motion JPEG formats. H.265 provides high compression efficiency for reduced bandwidth and storage needs, while H.264 ensures compatibility with existing systems. Motion JPEG is available for applications requiring individual frame capture or legacy integration.
Can this camera operate in low-light conditions?
Yes, the camera includes 2D and 3D noise reduction technologies to improve image quality in low-light environments. It also features a wide dynamic range to handle scenes with contrasting brightness, such as entrances with backlighting. The aperture ranges from f/1.7 to f/2.6, allowing more light capture in darker settings.
What are the physical dimensions and mounting options?
The dome enclosure measures 4.72 inches in diameter and 2.80 inches in height, with a weight of 13.23 ounces. It is designed for ceiling or wall mounting and has an IP42 rating, which protects against dust and water droplets, making it suitable for indoor use or sheltered outdoor locations like covered entryways.
