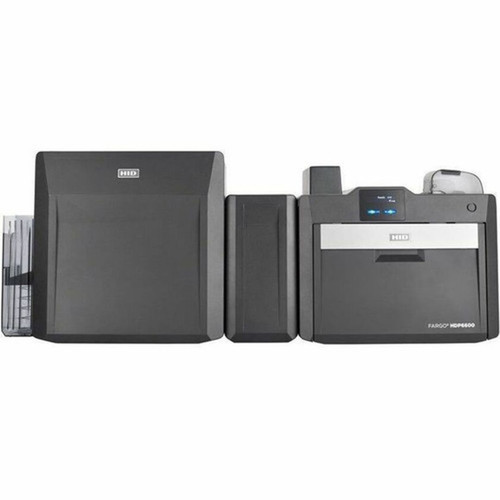

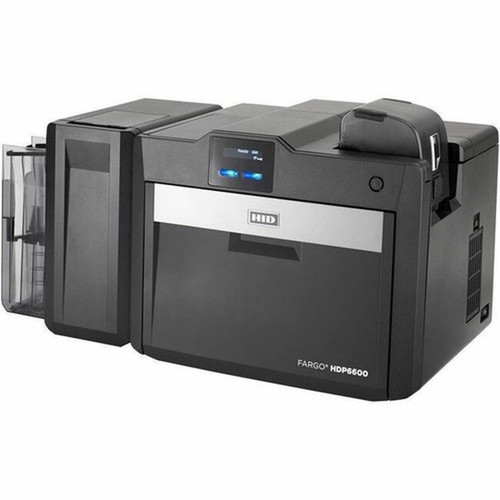

Fargo 094620 HDP6600 Desktop Dye Sublimation/Thermal Transfer Card Printer - Color - Single Sided - 600 dpi - 406. 40 mm/s - USB - Ethernet - OLED
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HDP6600 delivers color printing at speeds up to 406.40 mm/s, balancing throughput with image quality. Its dye sublimation and thermal transfer technologies support printing on various card materials including PVC, PET, PETG, polycarbonate, and proximity cards. The printer's 1 GB standard memory handles complex graphics and encoding data efficiently during production runs.
Connectivity includes both USB for direct computer connection and Ethernet for network deployment. The OLED display provides clear status information and menu navigation. Power consumption is rated at 2.50 A from AC supply, with operating conditions between 65°F to 90°F and 20% to 80% relative humidity.
This section brings together practical product details such as Recommended Use, Print Color Capability, Printing Capability, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The HDP6600 combines multiple card personalization functions in one compact desktop unit, eliminating the need for separate encoding equipment. Its professional-grade construction delivers consistent card quality with minimal maintenance requirements.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include All-in-One Encoding, Media Flexibility.
All-in-One Encoding
Integrates magnetic stripe, contact smart card, and contactless smart card encoding capabilities alongside printing functions for complete card personalization.
- Magnetic Stripe Encoder
- Contact Smart Card Encoder
- Contactless Smart Card Encoder
Media Flexibility
Supports printing on eight different card types including smart cards, ABS, PVC, PET, PETG, proximity cards, magnetic stripe cards, and polycarbonate cards.
- CR-80 Card Size
- 40 mil Thickness
- Multiple Material Types
Deployment / Use Cases
The HDP6600 is designed for organizations requiring professional card production with encoding capabilities. Its desktop form factor makes it suitable for office environments where space is limited but card quality and security cannot be compromised.
Primary applications include employee ID badges, access control cards, membership cards, student IDs, and visitor credentials. The printer's compatibility with standard CR-80 card size makes it ideal for organizations transitioning from pre-printed cards to on-demand printing with personalized encoding.
This section brings together practical product details such as Recommended Use, Print Color Capability, Printing Capability, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Corporate Security
Produce secure access cards with embedded smart chip or magnetic stripe encoding for controlled facility entry.
Educational Institutions
Create student and staff identification cards with photo, barcode, and contactless functionality for library access and campus services.
Physical Profile
Measuring 12.99" high, 14.49" wide, and 12.01" deep, the HDP6600 maintains a compact footprint suitable for desktop placement. The 9.50 kg weight provides stability during card feeding and printing operations without requiring dedicated furniture.
The printer's design accommodates standard office environments with front-facing controls and the OLED display positioned for easy visibility. The physical dimensions allow placement on work surfaces alongside computer equipment while maintaining accessibility for card loading and maintenance.
- Width
- 14.49" (368 mm)
- Depth
- 12.01" (305 mm)
- Height
- 12.99" (330 mm)
- Weight
- 9.50 kg
Highlights
- Color dye sublimation and thermal transfer printing at 600 dpi resolution
- Single-sided printing with speeds up to 406.40 mm/s
- Integrated magnetic stripe, contact, and contactless smart card encoding
- Supports eight card types including PVC, PET, and polycarbonate
- Wired connectivity with USB and Ethernet ports
- OLED display for status monitoring and menu navigation
- 1 GB standard memory for handling complex graphics
- Compatible with Windows 7 through 10 and Windows Server editions
- Compact desktop design measuring 12.99" H x 14.49" W x 12.01" D
- 3-year limited warranty with UL, CE, FCC, and multiple certifications
Specifications
| Specifications | |
|---|---|
| Manufacturer | HID Global Corporation |
| Manufacturer Part Number | 094620 |
| Brand Name | Fargo |
| Product Model | HDP6600 |
| Product Name | HDP6600 Card Printer & Encoder |
| Product Type | Dye Sublimation/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Card Print |
| Print Color Capability | Color |
| Printing Capability | Single Sided |
| Maximum Color Print Speed | 406.40 mm/s |
| Maximum Print Resolution (dpi) | 600 |
| Connectivity Technology | Wired |
| Printing Color | Yellow,Magenta,Cyan |
| Application/Usage | Desktop |
| Features | Magnetic Stripe Encoder,Contact Smart Card Encoder,Contactless Smart Card Encoder,Card Flattener Module |
| Memory | |
| Standard Memory | 1 GB |
| Interfaces/Ports | |
| USB | Yes |
| Network & Communication | |
| Network Ready | Yes |
| Ethernet | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Display Screen Type | OLED |
| Media Types & Handling | |
| Media Type | Smart Card,ABS Card,PVC Card,PET Card,PETG Card,Proximity Card,Magnetic Stripe Card,Polycarbonate Card |
| Media Size | 3.38" (85.85 mm) x 2.12" (53.85 mm) - CR-80 Card |
| Media Thickness | 40 mil |
| Software | |
| Operating System Supported | Microsoft: Windows 10 Windows 8.1 Windows 8 Windows 7 Windows Server 2016 Windows Server 2012 Windows Server 2012 R2 Windows Server 2008 Windows Server 2008 R2 |
| Power Description | |
| Power Source | AC Supply |
| Power Consumption | 2.50 A |
| Environmental Conditions | |
| Operating Temperature | 65°F (18.3°C) - 90°F (32.2°C) |
| Operating Relative Humidity | 20% - 80% |
| Physical Characteristics | |
| Height | 12.99" (330 mm) |
| Width | 14.49" (368 mm) |
| Depth | 12.01" (305 mm) |
| Weight (Approximate) | 9.50 kg |
| Miscellaneous | |
| Platform Supported | PC |
| Certifications & Standards | UL CE FCC BSMI MIC EAC RCM CCC KCC S-Mark |
| Environmentally Friendly | Yes |
| Environmental Certification | GreenCircle |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What print, scan, copy, or multifunction capability is listed?
The HDP6600 delivers color printing at speeds up to 406.40 mm/s, balancing throughput with image quality. Its dye sublimation and thermal transfer technologies support printing on various card materials including PVC, PET, PETG, polycarbonate, and proximity cards. The printer's 1 GB standard memory handles complex graphics and encoding data efficiently during production runs. Connectivity includes both USB for direct computer connection and Ethernet for network deployment. The OLED display provides clear status information and menu navigation. Power consumption is rated at 2.50 A from AC supply, with operating conditions between 65°F to 90°F and 20% to 80% relative humidity.
What sheet capacity, media size, or paper handling detail is listed?
3.38" (85.85 mm) x 2.12" (53.85 mm) - CR-80 Card.
What duplex or duty-cycle detail is listed?
The HDP6600 delivers color printing at speeds up to 406.40 mm/s, balancing throughput with image quality. Its dye sublimation and thermal transfer technologies support printing on various card materials including PVC, PET, PETG, polycarbonate, and proximity cards. The printer's 1 GB standard memory handles complex graphics and encoding data efficiently during production runs. Connectivity includes both USB for direct computer connection and Ethernet for network deployment. The OLED display provides clear status information and menu navigation. Power consumption is rated at 2.50 A from AC supply, with operating conditions between 65°F to 90°F and 20% to 80% relative humidity.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
What label, receipt, or business-print workflow detail is listed?
The HDP6600 delivers color printing at speeds up to 406.40 mm/s, balancing throughput with image quality. Its dye sublimation and thermal transfer technologies support printing on various card materials including PVC, PET, PETG, polycarbonate, and proximity cards. The printer's 1 GB standard memory handles complex graphics and encoding data efficiently during production runs. Connectivity includes both USB for direct computer connection and Ethernet for network deployment. The OLED display provides clear status information and menu navigation. Power consumption is rated at 2.50 A from AC supply, with operating conditions between 65°F to 90°F and 20% to 80% relative humidity.
What deployment or installation detail is listed?
The HDP6600 is designed for organizations requiring professional card production with encoding capabilities. Its desktop form factor makes it suitable for office environments where space is limited but card quality and security cannot be compromised. Primary applications include employee ID badges, access control cards, membership cards, student IDs, and visitor credentials. The printer's compatibility with standard CR-80 card size makes it ideal for organizations transitioning from pre-printed cards to on-demand printing with personalized encoding.
What performance, throughput, or capacity detail stands out?
The listed power specification is 406.40 mm/s, which helps position the unit for the right load level and installation role.
