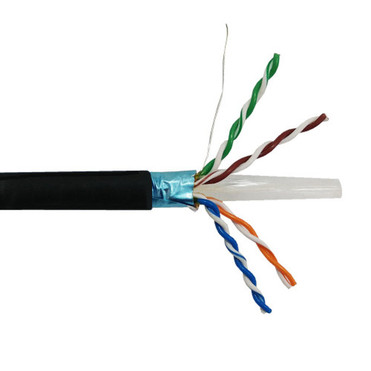

This bulk plenum rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires with an overall foil shield. It is typically used in a plenum environment as premise wiring and terminated from a patch panel to a Cat6 jack.
Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 7.45 mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 23AWG Solid |
| Insulation | Outer Diameter: 0.0414" (1.05 +/- 0.5mm) PET (20/0.25mm) |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP/FT6[Plenum Rated] |
| Jacket Nominal Thickness | 0.0197" (0.50mm) |
| Jacket Outer Diameter | 0.268" +/- 0.012 (6.8 +/- 0.3mm) |
| Cable Shielding | 100% Aluminum Foil Shield |
| Temperature Rating | 75 deg C |
| Voltage | 30V |
| Capacitance | 5.6nF/100m .Nom |
| Characteristic Impedance | 1-100MHz,100±15% 101-250MHz,100±22% 251-500MHz,100±25% |
| Velocity of Propogation | ?65% |
| DCR Conductor | 9.38 Ohms/100m.Nom |
| D-C Resistance Unbalance: | ?5% |
Performance | |
| Fluke CAT6 Permalink | Pass |
Approvals | |
| c(UL) | Yes |
Environmental | |
| RoHS | Yes |
Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 51 lbs [23.1 kg] |
