1000ft DMX cable - 4C/22AWG BC stranded, 85% braid + 100% foil CMR (FN-BK-DMX5-BK)

(No reviews) Write a Review
$481.28
$481.00
SKU: FN-BK-DMX5-BK
Availability: Stock at Toronto Warehouse
Weight: 51.00 LBS
Length: 1000ft
Adding to cart… The item has been added

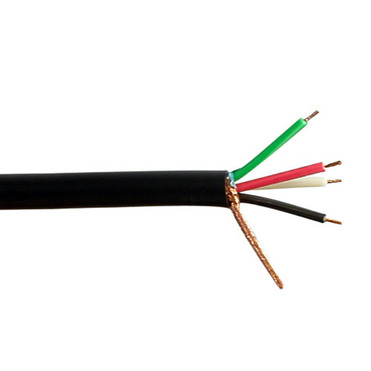

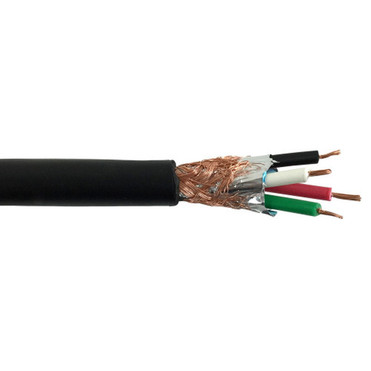

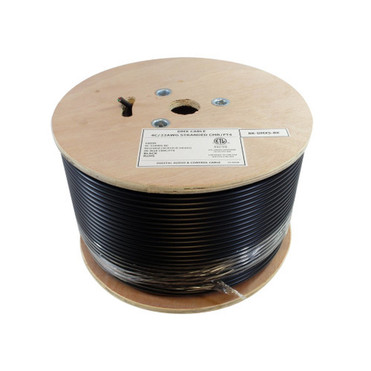

This bulk riser rated DMX cable is 1000 feet in length and consists of 2 pairs of 22AWG stranded wires. It is typically terminated with XLR 3 pin or 5 pin connectors and used to manufacture cables for controlling stage lighting and effects.

Physical Characteristics
Cable Length 1000 foot [305m]
Color Black
Cable Diameter7.10 mm
Number of Pairs2 Pairs
Wire Gauge 22 AWG Standard
Conductor Material 100% Bare Copper
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CMR/FT4
Cable Shielding100% Aluminum Foil Shield
85% Braid
Temperature Rating-30deg C to +75 deg C
Performance
Impedance110 ohms +/- 15
Capacitance41PF/M
Approvals
c(UL) Yes
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight51.50 lbs [23.36kg]
