100ft - 30m 12-Fiber Singlemode MPO/APC Female (no guide pins) to MPO/APC Female (no guide pins), Method A, OFNP

(No reviews) Write a Review
$148.00
$133.38
$133.00
(You save $15.00 )
SKU: FN-FO-1010A-100P
Availability: In Canada. Usually ship same day.
Weight: 0.66 LBS
Adding to cart… The item has been added

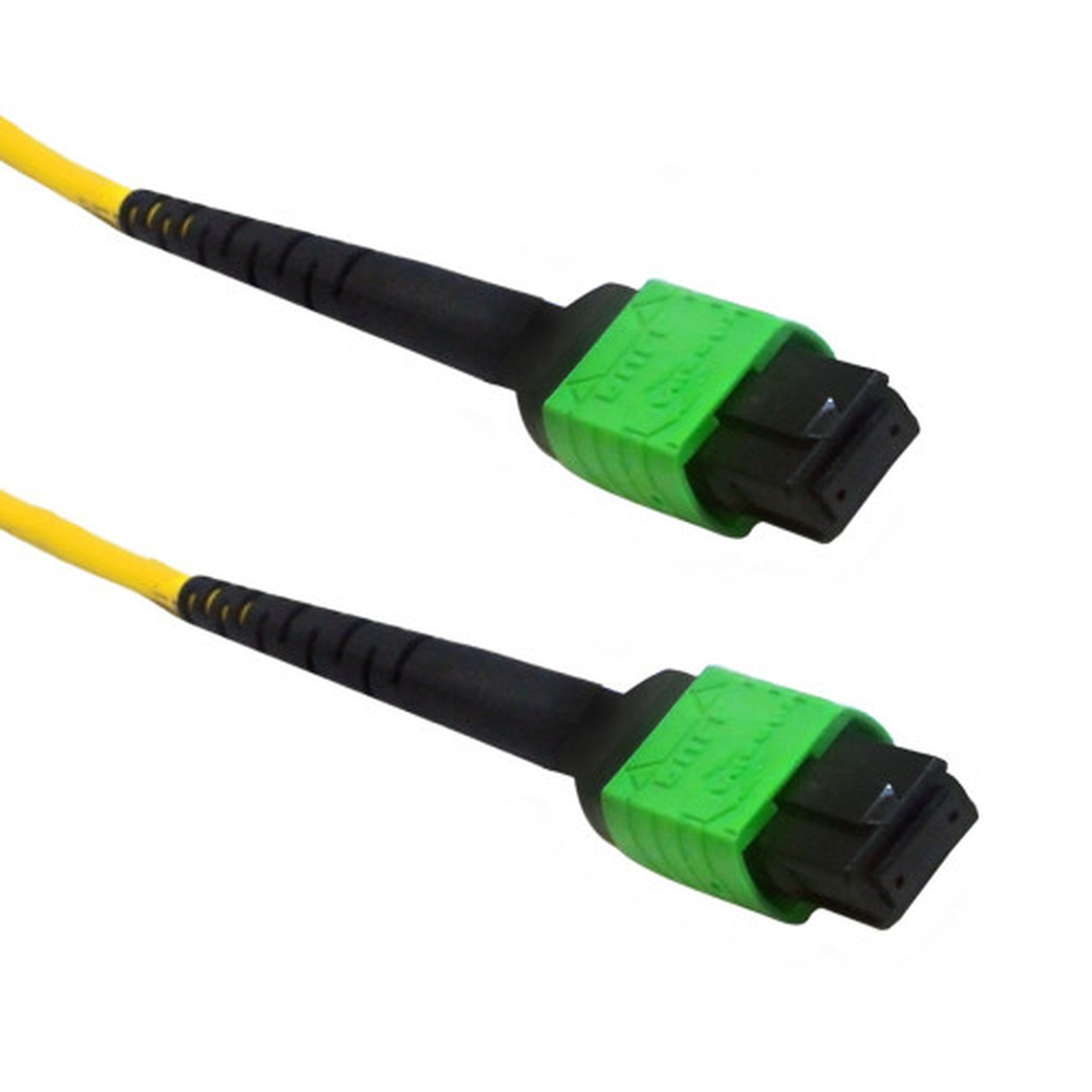

This singlemode fiber optic MPO trunk cable is made with Corning glass fiber and consists of a MPO/MTP female connector on both ends. It is used in high bandwidth data center applications connecting switches or MPO/MTP cassettes.

Physical Characteristics
Cable Length 30m [100 foot]
Color Yellow
Cable Diameter 3mm
Fiber Count 12 Fibers
Fiber Type Singlemode 9/125 Micron

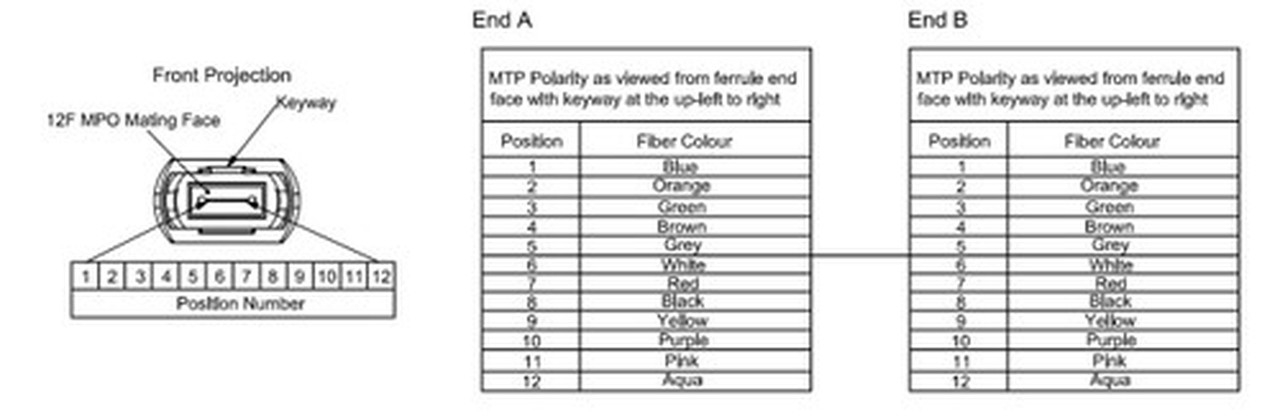

Polarity Method A
Glass Manufacturer Corning Glass
Jacket Rating Plenum (OFNP)
Connector(s)
Connector A 1 - 12-Position MPO/APC Female (no guide pins) Elite Connectors
Connector B 1 - 12-Position MPO/APC Female (no guide pins) Elite Connectors
Performance
Insertion Loss ≤0.35 dB
Return Loss ≥60db
testing 100% IL, RL and Interferometer Tested
Environmental
RoHS Yes
UL UL Listed Cable
Packaging Information
Package Quantity 1
Product Weight 0.66 lbs [0.23kg]
Warranty Information
Warranty Limited Lifetime
