10ft - 3m 12-Fiber Multimode OM4 MPO Female (no guide pins) to MPO Female (no guide pins), Method B, OFNP
SKU:
FN-FO-1410B-10P
Write a Review
Write a Review
Fleet Network
10ft - 3m 12-Fiber Multimode OM4 MPO Female (no guide pins) to MPO Female (no guide pins), Method B, OFNP
$100.00
Weight:
0.09 LBS
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server ready
-
Canada Delivery
UPS, FedEx, Purolator
Products Features
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Description

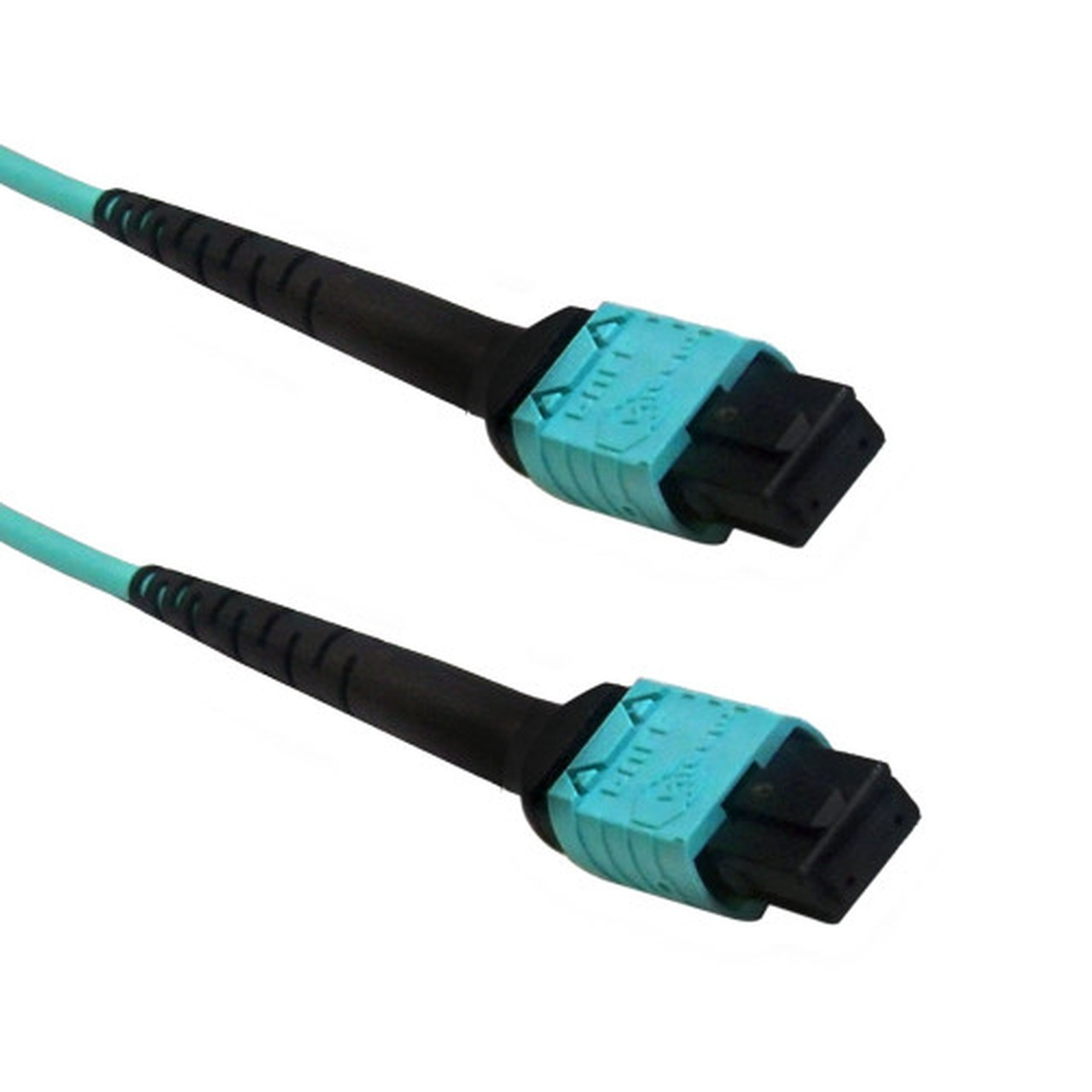

This multimode OM4 fiber optic MPO trunk cable is made with Corning glass fiber and consists of a MPO/MTP female connector on both ends. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.
| Physical Characteristics | |
|---|---|
| Cable Length | 3m [10 foot] |
| Color | Aqua |
| Cable Diameter | 3mm |
| Fiber Count | 12 Fibers |
| Fiber Type | Multimode OM4 50/125 Micron |

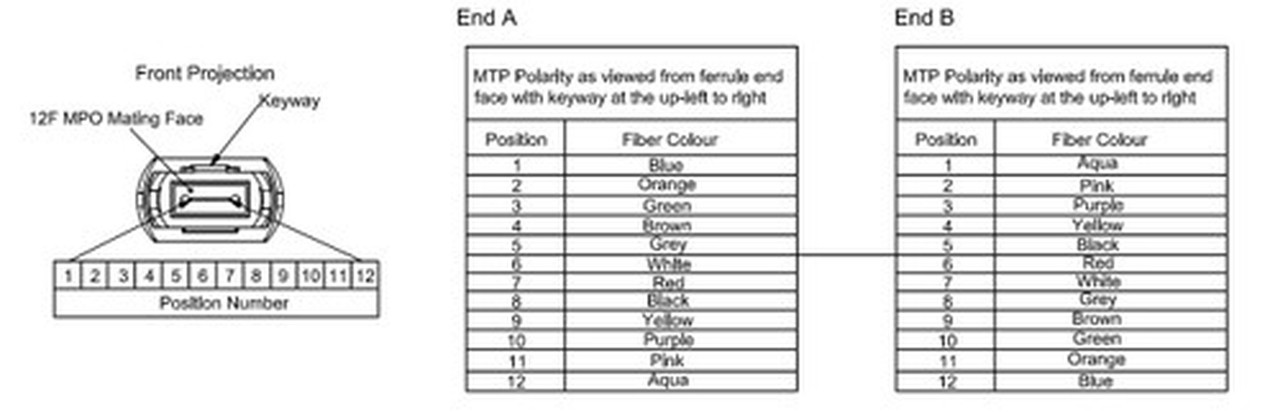

| Polarity | Method B |
| Glass Manufacturer | Corning Glass |
| Jacket Rating | Plenum (OFNP) |
| Connector(s) | |
| Connector A | 1 - 12-Position MPO Female (no guide pins) Elite Connectors |
| Connector B | 1 - 12-Position MPO/PC Female (no guide pins) Elite Connectors |
| Performance | |
| Insertion Loss | ≤0.35 dB |
| Return Loss | ≥20db |
| testing | 100% IL, RL and Interferometer Tested |
| Environmental | |
| RoHS | Yes |
| UL | UL Listed Cable |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.09 lbs [0.04kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
