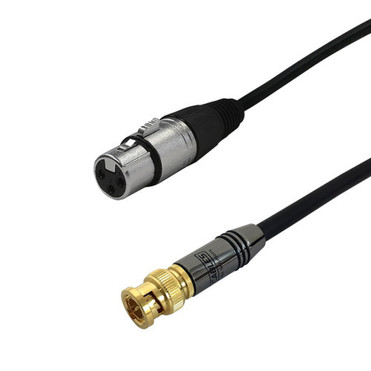

This premium time code cable has a XLR female on one end and a BNC male on the other. It is typically used in broadcast video applications.
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra Flexible to maximize mobility
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics | |
---|---|
Length | 10 foot |
Color | Black |
Contact Plating | Gold |
Cable Diameter | 5.0mm |
Wire Gauge | 24AWG |
Jacket Material | PVC - Polyvinyl Chloride |
Fire Rating | FT4 (Riser CMR) |
Cable Shielding | 90% Bare Copper Braid, 100% Aluminum Mylar Foil |
Strain Relief | Metal Shell |
Connectors | |
Connector A | 1 - BNC Male |
Connector B | 1 - XLR Female |
Approvals | |
cUL | Yes - Cable |
Environmental | |
RoHS | Yes |
Package Information | |
Package Quantity | 1 |
Product Weight | 0.55 lbs [0.25kg] |
Warranty Information | |
Warranty | Limited Lifetime |
