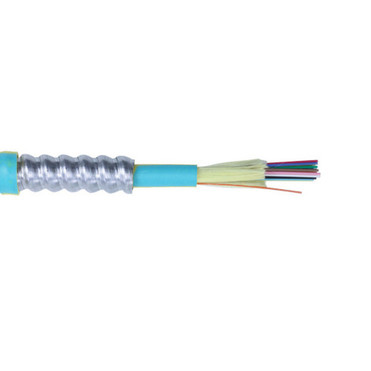

This bulk 12-strand OM3 armored fiber cable is plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.
Physical Characteristics | |
---|---|
Color | Aqua |
Fiber Optic Type | OM3 50µ Multimode Plenum Armored Tight Buffered Cable |
Fiber Count | 12-Strand |
Sub Unit Diameter | 900 Micron |
Nominal Diameter | 11.8mm |
Tension(Installation) | 100 lbs |
Tension(Long Term) | 30 lbs |
Bending Radius(Installation) | 17.7cm |
Bending Radius(Long Term) | 12.7cm |
Operating Temperature | -0 deg C ~ +70 deg C |
Storage Temperature | -40 deg C ~ +75 deg C |
Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
Bandwidth Range | @850nm > 1500 MHz/km @1300nm > 500 MHz/km |
Gigabit Ethernet Min. Link Distance | 850nm = 1000 1300nm = 600 |
10 Gigabit Ethernet Min. Link Distance | 850nm = 300 |
Fire Rating | OFNP |
Certification(s) | |
ETL | Yes |
c(ETL) | Yes |
Environmental | |
RoHS | Yes |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 0.4 lbs [0.1 kg] |
